VS8ANFF30 Banner Proximity Sensors
Part#:VS8ANFF30
Alt. Part#:803475
Manufacturer:Banner
Category:Proximity Sensors
Product Lifecycle:Active
Product description
VS8 Series: Fixed Field; Range: 2 mm to 30 mm; Input: 10-30 V dc; Output: NPN; 4-conductor 2 m Cable
Product Details
- Weight 36.28736 g
- Country Of Origin DE
- Housing Style Rectangular
- Max Sensing Distance (mm) 30
- Sensing Beam Wavelength 650
- NEMA Rating N/A
- Feature: Encapsulated No
- Primary Housing Material PUR
- Sensing Beam Visible Red LED
- Output response time (ms) 0.5
- Barrel Diameter (mm) N/A
- Power DC
- Sensing Mode (Detailed) Background Suppression (Fixed)
- Special Feature: Intrinsically Safe No
- IP Rating IP67
- Feature: Chemical Resistant No
- Sensing Mode (General) Proximity
- Connection Cable
- Special Feature: Water Detection No
- Adjustments N/A
- Cable Length (m) 2
- Quick Disconnect Type No QD
- Delay at Power-up (ms) 300
- Opposed Mode Emitter/Receiver N/A
- IO Link No
- Outputs NPN
- Min Op. Temp. (°C) -20
- Repeatability (µs) N/A
- Feature: Timing (Hold/Delay) No
- DeviceNet No
- Power Supply/Supply Voltage 10-30 V dc
- Operation Light Operate
- Number of Pins 4
- Feature: Audible No
- Small Visible Spot LED
- Max Op. Temp. (°C) 60
- Lens Material PMMA
- Feature: Hazardous Area No
- Input/Output Discrete
- Special Feature: Remote Teach No
- Indicator LEDs
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of VS8ANFF30 on Powermatic Associates is $167.00. Order now.
About the product

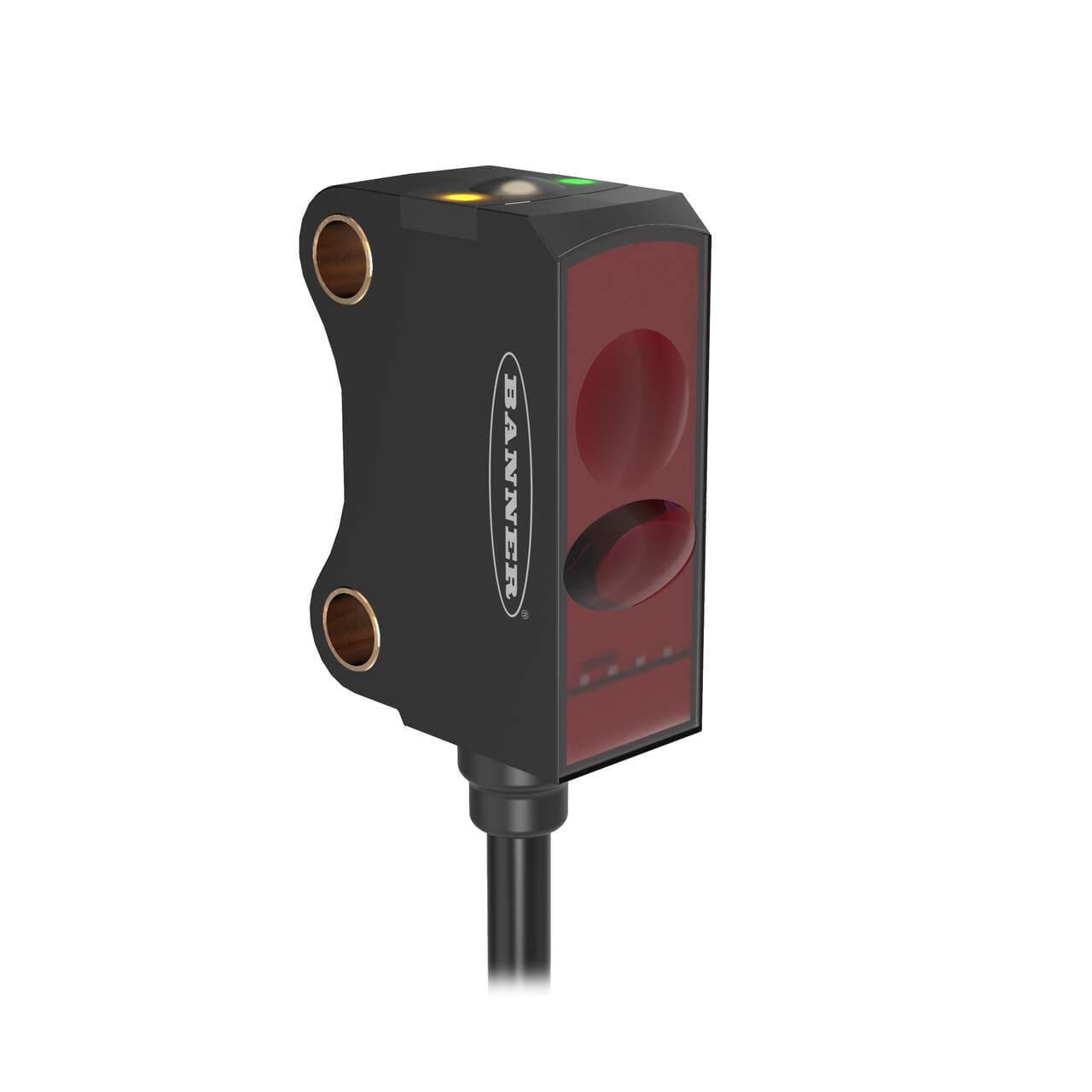

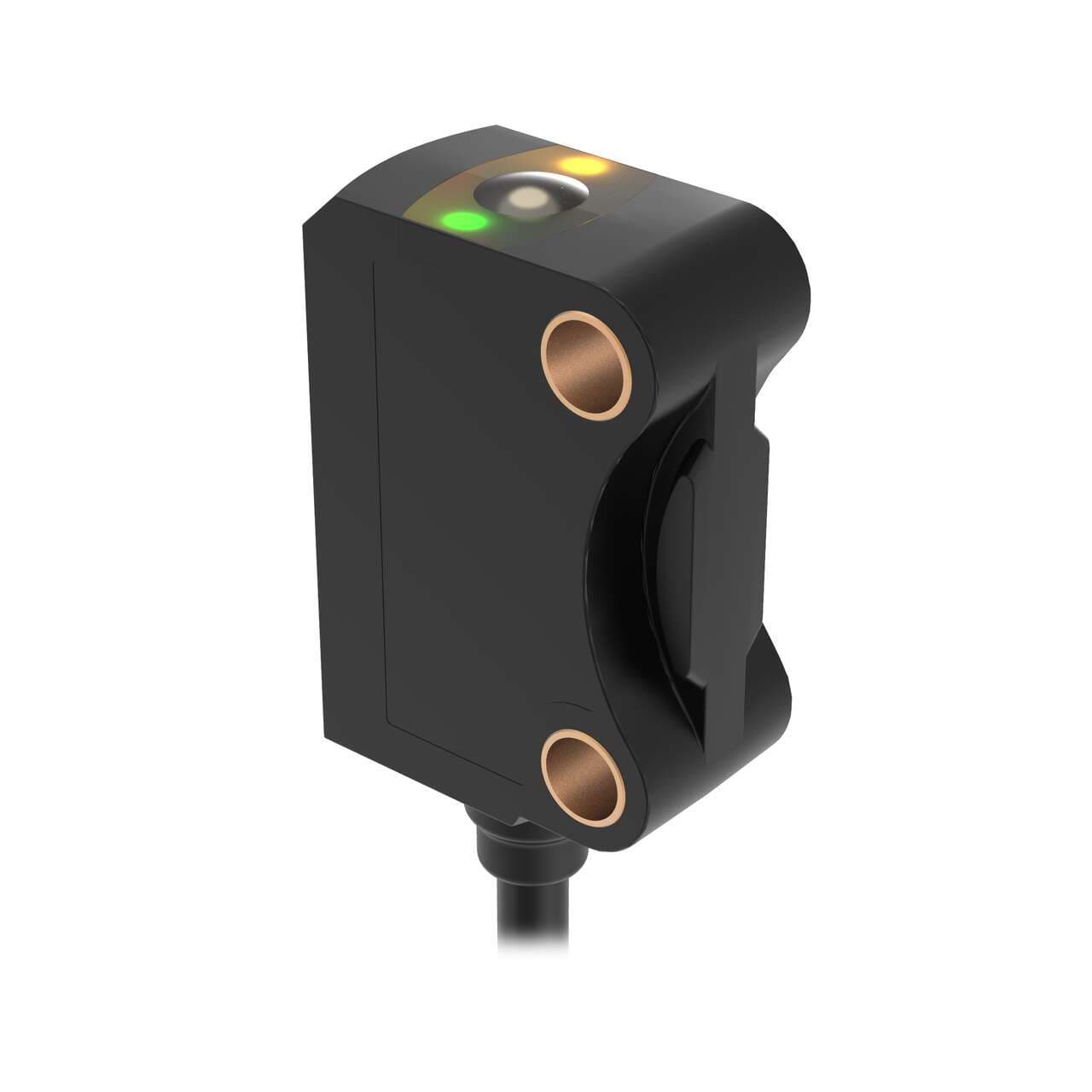

Banner Engineering VS8ANFF30 is a fixed-field photo-electric sensor designed with a thermoplastic housing and a polymethyl methacrylate (PMMA) lens. It features a polyurethane (PUR) cable for connectivity, ensuring a degree of protection rated at IP67. This sensor operates within an ambient air temperature range of -20 to +60°C and is configured for Light-ON operating mode. It includes 1 x digital output (NPN transistor) with a rapid response time of 0.5ms / 0.0005 s. The VS8ANFF30 is equipped with a pre-wired 6.5ft / 2m cable that terminates with bare end flying leads, facilitating straightforward installation. Its rectangular shape and visible red light, emitted at a wavelength of 650 nm, complement its design. This sensor operates on a supply voltage of 10Vdc-30Vdc (12Vdc / 24Vdc nom.) and incorporates a background suppression system. It offers a sensing distance ranging from 2 to 30mm, making it a versatile component of the VS8 series for precise detection tasks.
VS8ANFF30 Related Documents
Similar products from: Banner Proximity Sensors
Manufacturer warranty
VS8ANFF30 Banner
$167.00
Your price can be lower.
Log in or Create account to check your discount
Select Qty:
$167.00
$167.00 each
Average response time: 11 minutes
Worldwide Shipping and Delivery
Secure Payment Processing
Warranty
Responsive Customer Support
Got Questions? We've Got Answers!
Need more details?
Feel free to chat with us
Compare VS8ANFF30 with other Proximity Sensors products
Weight
Country Of Origin
Housing Style
Max Sensing Distance (mm)
Sensing Beam Wavelength
NEMA Rating
Feature: Encapsulated
Primary Housing Material
Sensing Beam
Output response time (ms)
Selected product
VS8ANFF30
Banner
VS8 Series: Fixed Field; Range: 2 mm to 30 mm; Input: 10-30 V dc; Output: NPN; 4-conductor 2 m Cable
Weight36.28736 g
Country Of OriginDE
Housing StyleRectangular
Max Sensing Distance (mm)30
Sensing Beam Wavelength650
NEMA RatingN/A
Feature: EncapsulatedNo
Primary Housing MaterialPUR
Sensing BeamVisible Red LED
Output response time (ms)0.5
VS8EAPRQ
Banner
VS8 Series: Laser Receiver; Range: 3 m; Input: 10-30 V dc; Output: PNP; 200 mm 4-pin M8 Pigtail QD
Weight10.3418976 g
Country Of OriginDE
Housing Style-
Max Sensing Distance (mm)3000
Sensing Beam Wavelength-
NEMA Rating-
Feature: Encapsulated-
Primary Housing MaterialPUR
Sensing BeamVisible Red LED
Output response time (ms)-
T18-2VPLP-2M
Banner
T18-2 Series: Polarized Retroreflective; Range: 6 m; Input: 10-30 V dc; Outputs: complementary PNP; ...
Weight90.7184 g
Country Of OriginMX
Housing Style-
Max Sensing Distance (mm)6000
Sensing Beam Wavelength-
NEMA Rating-
Feature: Encapsulated-
Primary Housing MaterialThermoplastic
Sensing BeamVisible Red LED
Output response time (ms)-
About the manufacturer
Powermatic Associates is an authorized Banner distributor, proud to offer an extensive range of Banner's innovative products and solutions. Banner Engineering is a renowned manufacturer specializing in industrial automation, known for their cutting-edge sensor technology, machine safety solutions, wireless connectivity, and LED lighting systems. With a precision focus on delivering high-quality eq...
Recently viewed products
Relevant products
FAQ
What is the price of VS8ANFF30?
Purchase the VS8ANFF30 from Powermatic Associates at the price of $167.00. Order today.
Out if stock but available for backorder.
VS8 Series: Fixed Field; Range: 2 mm to 30 mm; Input: 10-30 V dc; Output: NPN; 4-conductor 2 m Cable
