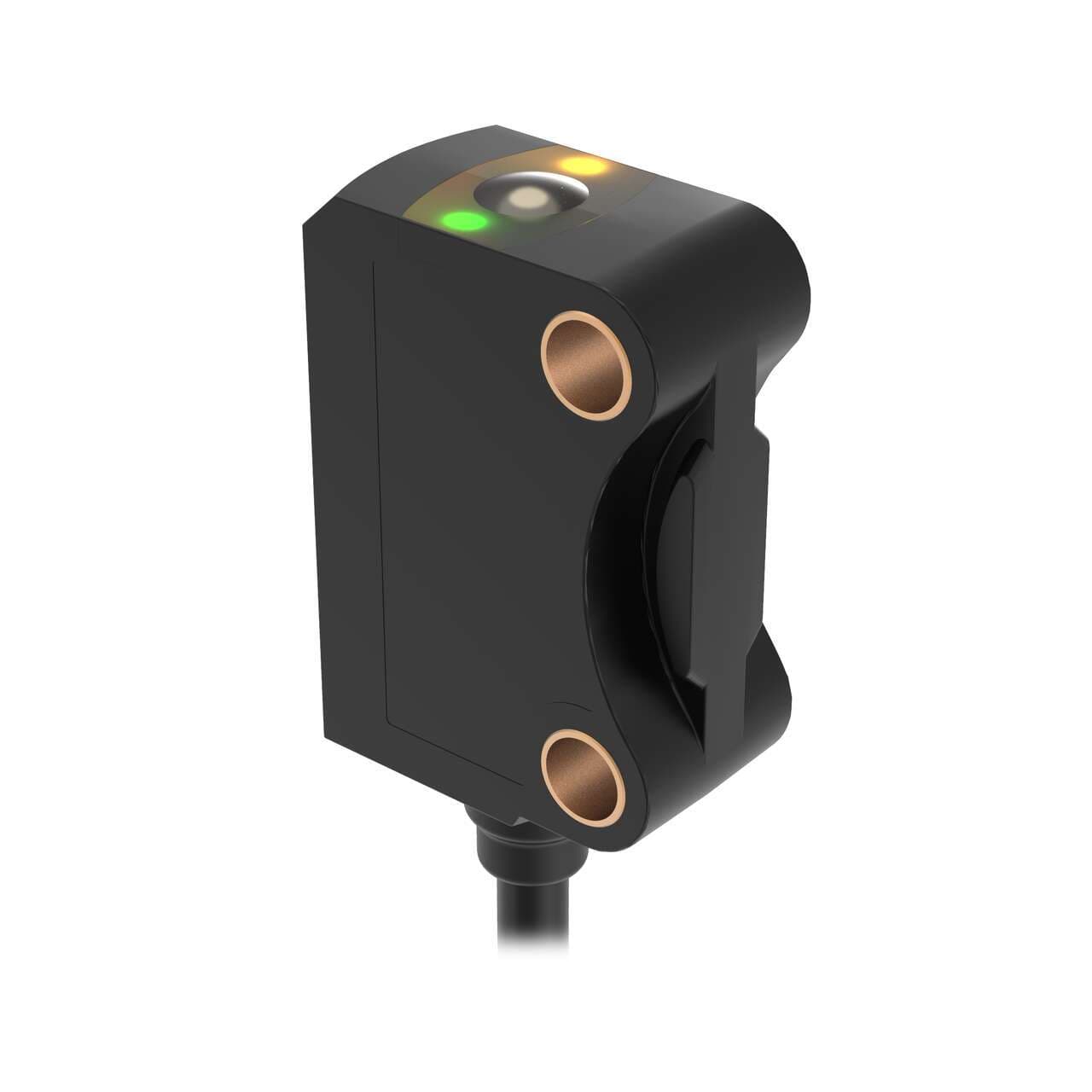

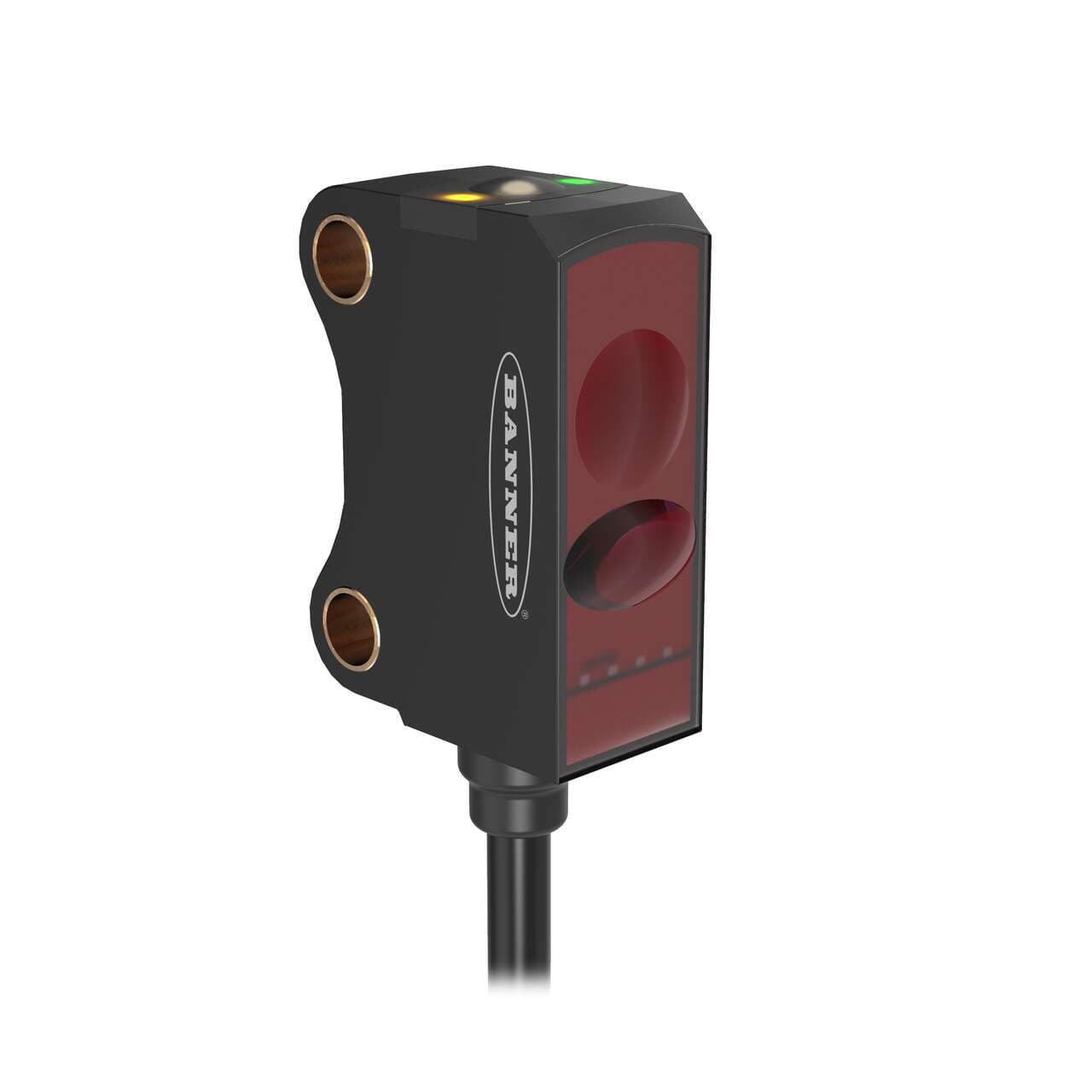

VS8APFF50Q3 Banner Proximity Sensors
Part#:VS8APFF50Q3
Alt. Part#:803480
Manufacturer:Banner
Category:Proximity Sensors
Product Lifecycle:Active
Product description
VS8 Series: Fixed Field; Range: 2 mm to 50 mm; Input: 10-30 V dc; Output: PNP; 3-pin M8 200 mm Pigtail
Product Details
- Weight 19.7766112 g
- Country Of Origin DE
- Max Sensing Distance (mm) 50
- Special Feature: Remote Teach No
- NEMA Rating N/A
- DeviceNet No
- Small Visible Spot LED
- Max Op. Temp. (°C) 60
- Adjustments N/A
- IO Link No
- Power DC
- Output response time (ms) 0.5
- Repeatability (µs) N/A
- Opposed Mode Emitter/Receiver N/A
- Primary Housing Material PUR
- Min Op. Temp. (°C) -20
- IP Rating IP67
- Feature: Audible No
- Sensing Beam Visible Red LED
- Outputs PNP
- Special Feature: Water Detection No
- Indicator LEDs
- Housing Style Rectangular
- Quick Disconnect Type M8 (Pico)
- Lens Material PMMA
- Feature: Chemical Resistant No
- Sensing Mode (Detailed) Background Suppression (Fixed)
- Sensing Beam Wavelength 650
- Feature: Timing (Hold/Delay) No
- Sensing Mode (General) Proximity
- Connection Pigtail QD
- Delay at Power-up (ms) 300
- Feature: Encapsulated No
- Input/Output Discrete
- Operation Light Operate
- Barrel Diameter (mm) N/A
- Number of Pins 3
- Feature: Hazardous Area No
- Power Supply/Supply Voltage 10-30 V dc
- Special Feature: Intrinsically Safe No
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of VS8APFF50Q3 on Powermatic Associates is $175.00. Order now.
About the product
Banner Engineering VS8APFF50Q3 is a fixed-field photo-electric sensor designed with a thermoplastic housing and a Polymethyl methacrylate (PMMA) lens. It features a Polyurethane (PUR) cable and offers a degree of protection rated at IP67, making it suitable for operation in ambient air temperatures ranging from -20 to +60 °C. This sensor operates in Light-ON mode and includes 1 x digital output (PNP transistor) with a response time of 0.5ms / 0.0005 s. It comes pre-wired with a 7.5" / 200mm pigtail terminated with a 3-pin Pico-style M8 connector. The rectangular-shaped sensor emits a visible red light at a wavelength of 650 nm and operates within a supply voltage range of 10Vdc-30Vdc (12Vdc / 24Vdc nom.). It is equipped with a background suppression system and has a sensing distance of 2...50mm. This sensor is part of the VS8 series.
VS8APFF50Q3 Related Documents
Similar products from: Banner Proximity Sensors
Manufacturer warranty
VS8APFF50Q3 Banner
$175.00
Your price can be lower.
Log in or Create account to check your discount
Select Qty:
$175.00
$175.00 each
Average response time: 11 minutes
Worldwide Shipping and Delivery
Secure Payment Processing
Warranty
Responsive Customer Support
Got Questions? We've Got Answers!
Need more details?
Feel free to chat with us
Compare VS8APFF50Q3 with other Proximity Sensors products
Weight
Country Of Origin
Max Sensing Distance (mm)
Special Feature: Remote T...
NEMA Rating
DeviceNet
Small Visible Spot
Max Op. Temp. (°C)
Adjustments
IO Link
Selected product
VS8APFF50Q3
Banner
VS8 Series: Fixed Field; Range: 2 mm to 50 mm; Input: 10-30 V dc; Output: PNP; 3-pin M8 200 mm Pigta...
Weight19.7766112 g
Country Of OriginDE
Max Sensing Distance (mm)50
Special Feature: Remote TeachNo
NEMA RatingN/A
DeviceNetNo
Small Visible SpotLED
Max Op. Temp. (°C)60
AdjustmentsN/A
IO LinkNo
VS8EAPRQ
Banner
VS8 Series: Laser Receiver; Range: 3 m; Input: 10-30 V dc; Output: PNP; 200 mm 4-pin M8 Pigtail QD
Weight10.3418976 g
Country Of OriginDE
Max Sensing Distance (mm)3000
Special Feature: Remote Teach-
NEMA Rating-
DeviceNet-
Small Visible Spot-
Max Op. Temp. (°C)-
Adjustments-
IO Link-
QS18AB6AF300Q
Banner
WORLD-BEAM: Adjustable Field Background Suppression; Cutoff Adjustment Range: 30 to 300 mm; Input: 1...
Weight63.50288 g
Country Of OriginMX
Max Sensing Distance (mm)300
Special Feature: Remote Teach-
NEMA Rating-
DeviceNet-
Small Visible Spot-
Max Op. Temp. (°C)-
Adjustments-
IO Link-
About the manufacturer
Powermatic Associates is an authorized Banner distributor, proud to offer an extensive range of Banner's innovative products and solutions. Banner Engineering is a renowned manufacturer specializing in industrial automation, known for their cutting-edge sensor technology, machine safety solutions, wireless connectivity, and LED lighting systems. With a precision focus on delivering high-quality eq...
Recently viewed products
Relevant products
FAQ
What is the price of VS8APFF50Q3?
Purchase the VS8APFF50Q3 from Powermatic Associates at the price of $175.00. Order today.
Out if stock but available for backorder.
VS8 Series: Fixed Field; Range: 2 mm to 50 mm; Input: 10-30 V dc; Output: PNP; 3-pin M8 200 mm Pigtail
