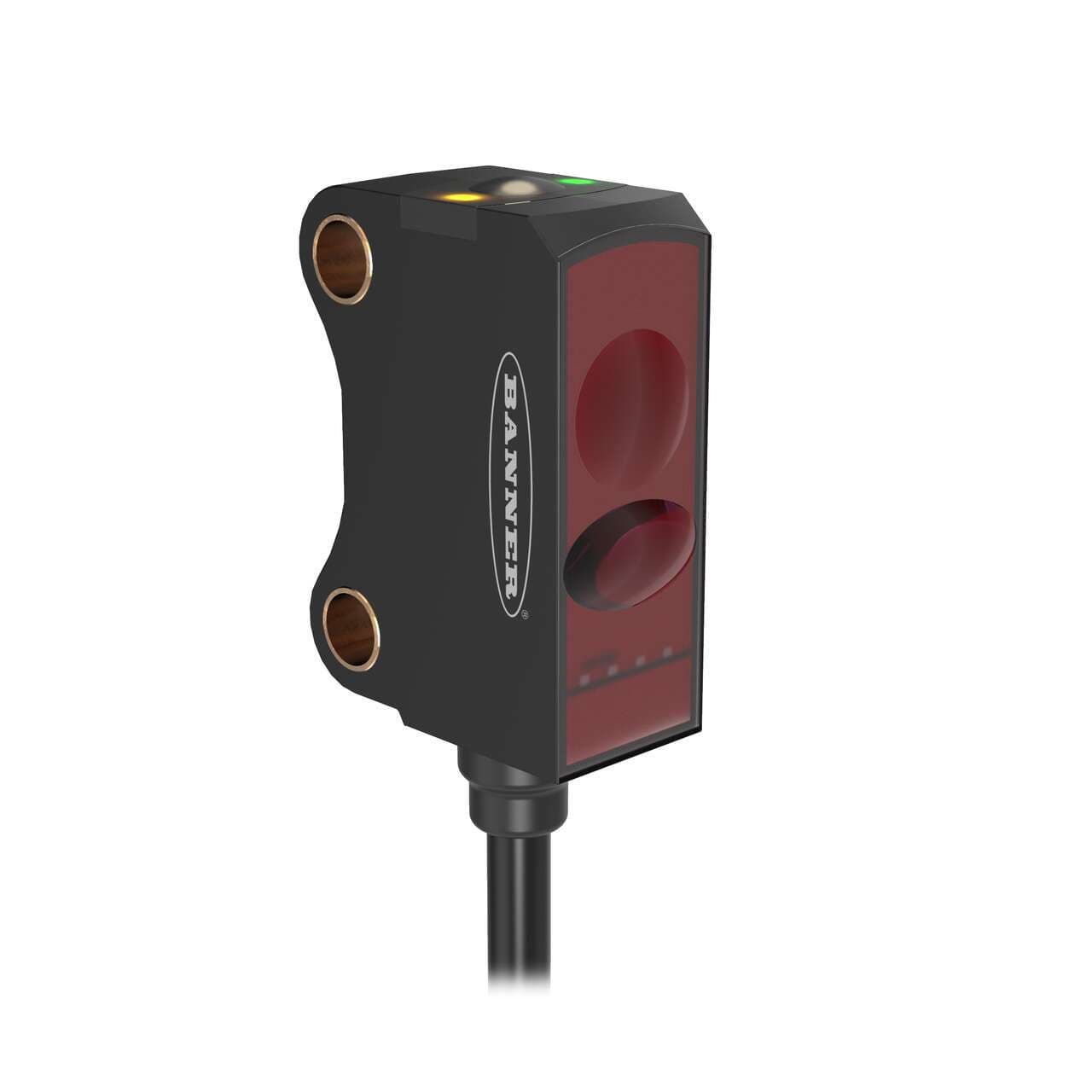

VS8ANFF50 Banner Proximity Sensors
Part#:VS8ANFF50
Alt. Part#:803479
Manufacturer:Banner
Category:Proximity Sensors
Product Lifecycle:Active
Product description
VS8 Series: Fixed Field; Range: 2 mm to 50 mm; Input: 10-30 V dc; Output: NPN; 4-conductor 2 m Cable
Product Details
- Weight 36.28736 g
- Country Of Origin DE
- Design background suppression system
- Wavelength 650 nm
- Digital outputs 1 x digital output (NPN transistor)
- Order code / Manufacturer SKU 803479
- Supply voltage (DC) 10Vdc-30Vdc (12Vdc / 24Vdc nom.)
- Sensing distance 2...50mm
- Operating mode Light-ON
- Ambient air temperature for operation -20...+60 °C
- Sub-range name VS8 series
- Shape Rectangular
- Degree of protection IP67
- Compliant with standard(s) cULus CE
- Primary brand Banner Engineering
- Functions Fixed-field photo-electric sensor green LED (power ON) yellow LED (output state)
- Connection type Pre-wired with 6.5ft / 2m cable terminated with bare end flying leads
- Material thermoplastic housing PMMA lns. PUR (cable)
- Main function Sensor (Photo-electric)
- Light Color Visible red
- Response time 0.5ms / 0.0005 s
- Sensing Mode (General) Proximity
- Min Op. Temp. (°C) -20
- Repeatability (µs) N/A
- Input/Output Discrete
- Output response time (ms) 0.5
- Adjustments N/A
- Feature: Hazardous Area No
- Sensing Beam Visible Red LED
- Operation Light Operate
- Number of Pins 4
- Special Feature: Remote Teach No
- Primary Housing Material PUR
- IP Rating IP67
- Power DC
- Power Supply/Supply Voltage 10-30 V dc
- Indicator LEDs
- Small Visible Spot LED
- Max Op. Temp. (°C) 60
- Feature: Chemical Resistant No
- Lens Material PMMA
- Cable Length (m) 2
- Quick Disconnect Type No QD
- NEMA Rating N/A
- Housing Style Rectangular
- Outputs NPN
- Sensing Mode (Detailed) Background Suppression (Fixed)
- Connection Cable
- Special Feature: Intrinsically Safe No
- Barrel Diameter (mm) N/A
- Max Sensing Distance (mm) 50
- Delay at Power-up (ms) 300
- Special Feature: Water Detection No
- DeviceNet No
- Sensing Beam Wavelength 650
- IO Link No
- Feature: Timing (Hold/Delay) No
- Feature: Encapsulated No
- Opposed Mode Emitter/Receiver N/A
- Feature: Audible No
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of VS8ANFF50 on Powermatic Associates is $167.00. Order now.
About the product
Banner Engineering VS8ANFF50 is a fixed-field photo-electric sensor designed with a thermoplastic housing and a polymethyl methacrylate (PMMA) lens. It features a polyurethane (PUR) cable for connectivity. This sensor operates within an ambient air temperature range of -20 to +60°C and has a degree of protection rated at IP67, making it suitable for various environmental conditions. It operates in a Light-ON mode and is equipped with one digital output (NPN transistor) for signal processing. The response time of this sensor is notably quick at 0.5ms / 0.0005 s. It comes pre-wired with a 6.5ft / 2m cable that terminates with bare end flying leads for easy installation. The rectangular-shaped sensor emits a visible red light with a wavelength of 650 nm. It is designed for a supply voltage range of 10Vdc to 30Vdc, with nominal voltages of 12Vdc and 24Vdc. The VS8ANFF50 features a background suppression system and offers a sensing distance of 2 to 50mm, positioning it within the VS8 series of Banner Engineering's photo-electric sensors.
