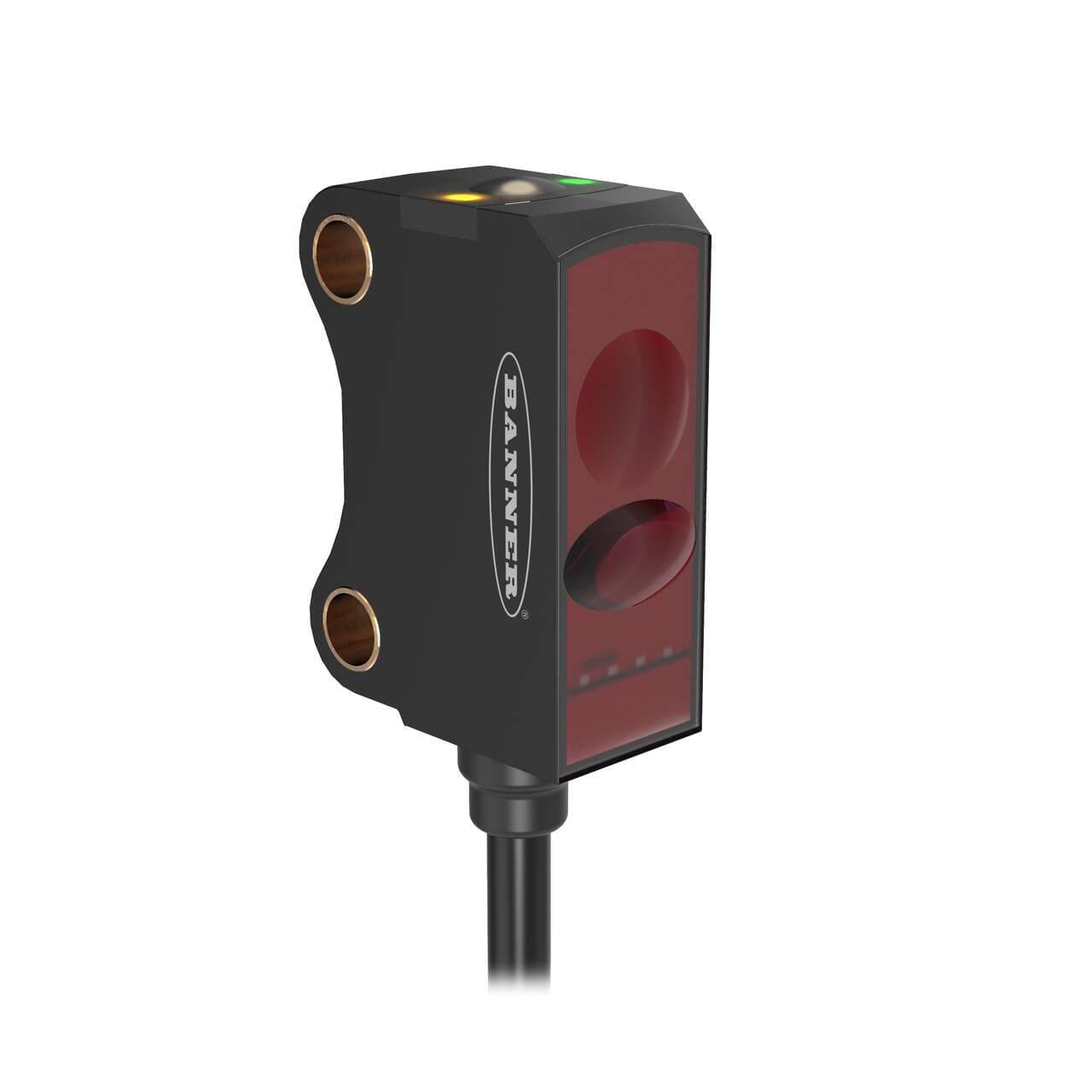

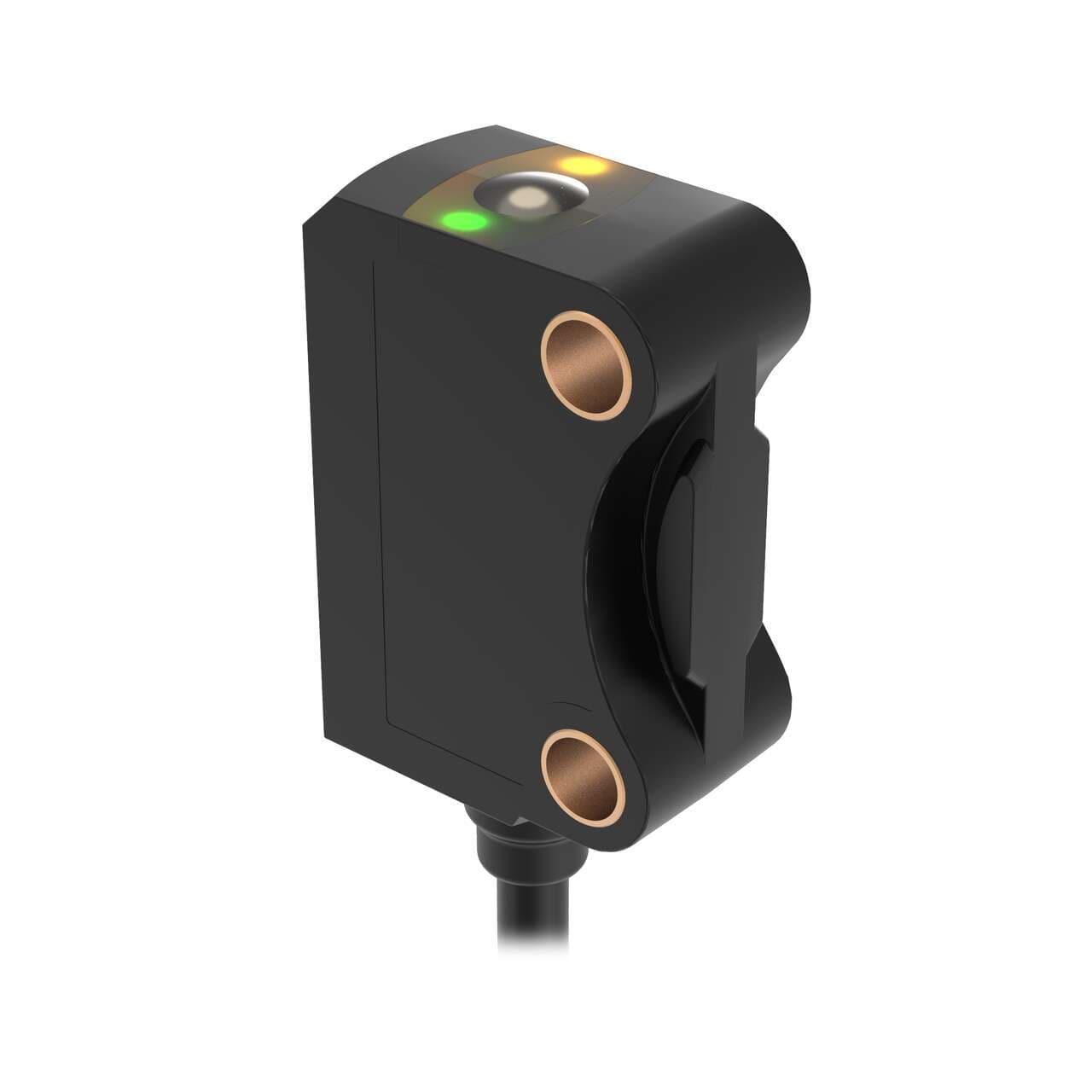

VS8ANFF50Q3 Banner Proximity Sensors
Part#:VS8ANFF50Q3
Alt. Part#:803481
Manufacturer:Banner
Category:Proximity Sensors
Product Lifecycle:Active
Product description
VS8 Series: Fixed Field; Range: 2 mm to 50 mm; Input: 10-30 V dc; Output: NPN; 3-pin M8 200 mm Pigtail
Product Details
- Weight 19.7766112 g
- Country Of Origin DE
- Degree of protection IP67
- Wavelength 650 nm
- Shape Rectangular
- Main function Sensor (Photo-electric)
- Supply voltage (DC) 10Vdc-30Vdc (12Vdc / 24Vdc nom.)
- Sensing distance 2...50mm
- Digital outputs 1 x digital output (NPN transistor)
- Response time 0.5ms / 0.0005 s
- Order code / Manufacturer SKU 803481
- Primary brand Banner Engineering
- Sub-range name VS8 series
- Functions Fixed-field photo-electric sensor green LED (power ON) yellow LED (output state)
- Material thermoplastic housing PMMA lns. PUR (cable)
- Ambient air temperature for operation -20...+60 °C
- Design background suppression system
- Light Color Visible red
- Operating mode Light-ON
- Connection type Pre-wired with 7.5" / 200mm pigtail terminated with 3-pin Pico-style M8 connector
- Compliant with standard(s) cULus CE
- Sensing Mode (Detailed) Background Suppression (Fixed)
- Max Op. Temp. (°C) 60
- IP Rating IP67
- Feature: Encapsulated No
- Sensing Beam Visible Red LED
- Output response time (ms) 0.5
- Lens Material PMMA
- Feature: Audible No
- Input/Output Discrete
- Special Feature: Intrinsically Safe No
- NEMA Rating N/A
- Feature: Chemical Resistant No
- Sensing Mode (General) Proximity
- Connection Pigtail QD
- Special Feature: Remote Teach No
- Indicator LEDs
- DeviceNet No
- Max Sensing Distance (mm) 50
- Min Op. Temp. (°C) -20
- Delay at Power-up (ms) 300
- Barrel Diameter (mm) N/A
- Power DC
- Power Supply/Supply Voltage 10-30 V dc
- Repeatability (µs) N/A
- Feature: Hazardous Area No
- Primary Housing Material PUR
- Operation Light Operate
- Number of Pins 3
- Feature: Timing (Hold/Delay) No
- Small Visible Spot LED
- Quick Disconnect Type M8 (Pico)
- Sensing Beam Wavelength 650
- Adjustments N/A
- Housing Style Rectangular
- Outputs NPN
- Special Feature: Water Detection No
- Opposed Mode Emitter/Receiver N/A
- IO Link No
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of VS8ANFF50Q3 on Powermatic Associates is $175.00. Order now.
About the product
Banner Engineering VS8ANFF50Q3 is a fixed-field photo-electric sensor designed with a thermoplastic housing and a Polymethyl methacrylate (PMMA) lens. It features a Polyurethane (PUR) cable and offers a degree of protection rated at IP67, making it suitable for operation in ambient air temperatures ranging from -20 to +60 °C. This sensor operates in a Light-ON mode and includes 1 x digital output (NPN transistor) with a response time of 0.5ms / 0.0005 s. It is pre-wired with a 7.5" / 200mm pigtail terminated with a 3-pin Pico-style M8 connector. The rectangular-shaped sensor emits a visible red light at a wavelength of 650 nm and operates on a supply voltage of 10Vdc-30Vdc (12Vdc / 24Vdc nom.). It is equipped with a background suppression system and has a sensing distance of 2...50mm. This sensor is part of the VS8 series.
