VS8APFF50 Banner Proximity Sensors
Part#:VS8APFF50
Alt. Part#:803478
Manufacturer:Banner
Category:Proximity Sensors
Product Lifecycle:Active
Product description
VS8 Series: Fixed Field; Range: 2 mm to 50 mm; Input: 10-30 V dc; Output: PNP; 4-conductor 2 m Cable
Product Details
- Weight 36.28736 g
- Country Of Origin DE
- Sensing Mode (General) Proximity
- Outputs PNP
- Output response time (ms) 0.5
- Repeatability (µs) N/A
- Feature: Hazardous Area No
- Input/Output Discrete
- Special Feature: Intrinsically Safe No
- Opposed Mode Emitter/Receiver N/A
- Sensing Beam Visible Red LED
- Max Sensing Distance (mm) 50
- Max Op. Temp. (°C) 60
- NEMA Rating N/A
- Feature: Audible No
- Primary Housing Material PUR
- Quick Disconnect Type No QD
- Delay at Power-up (ms) 300
- Indicator LEDs
- Housing Style Rectangular
- Min Op. Temp. (°C) -20
- Number of Pins 4
- Barrel Diameter (mm) N/A
- IO Link No
- Small Visible Spot LED
- Special Feature: Remote Teach No
- Feature: Timing (Hold/Delay) No
- Power DC
- Operation Light Operate
- IP Rating IP67
- Feature: Encapsulated No
- Cable Length (m) 2
- Sensing Mode (Detailed) Background Suppression (Fixed)
- Power Supply/Supply Voltage 10-30 V dc
- Connection Cable
- Sensing Beam Wavelength 650
- Special Feature: Water Detection No
- Lens Material PMMA
- Adjustments N/A
- DeviceNet No
- Feature: Chemical Resistant No
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of VS8APFF50 on Powermatic Associates is $167.00. Order now.
About the product

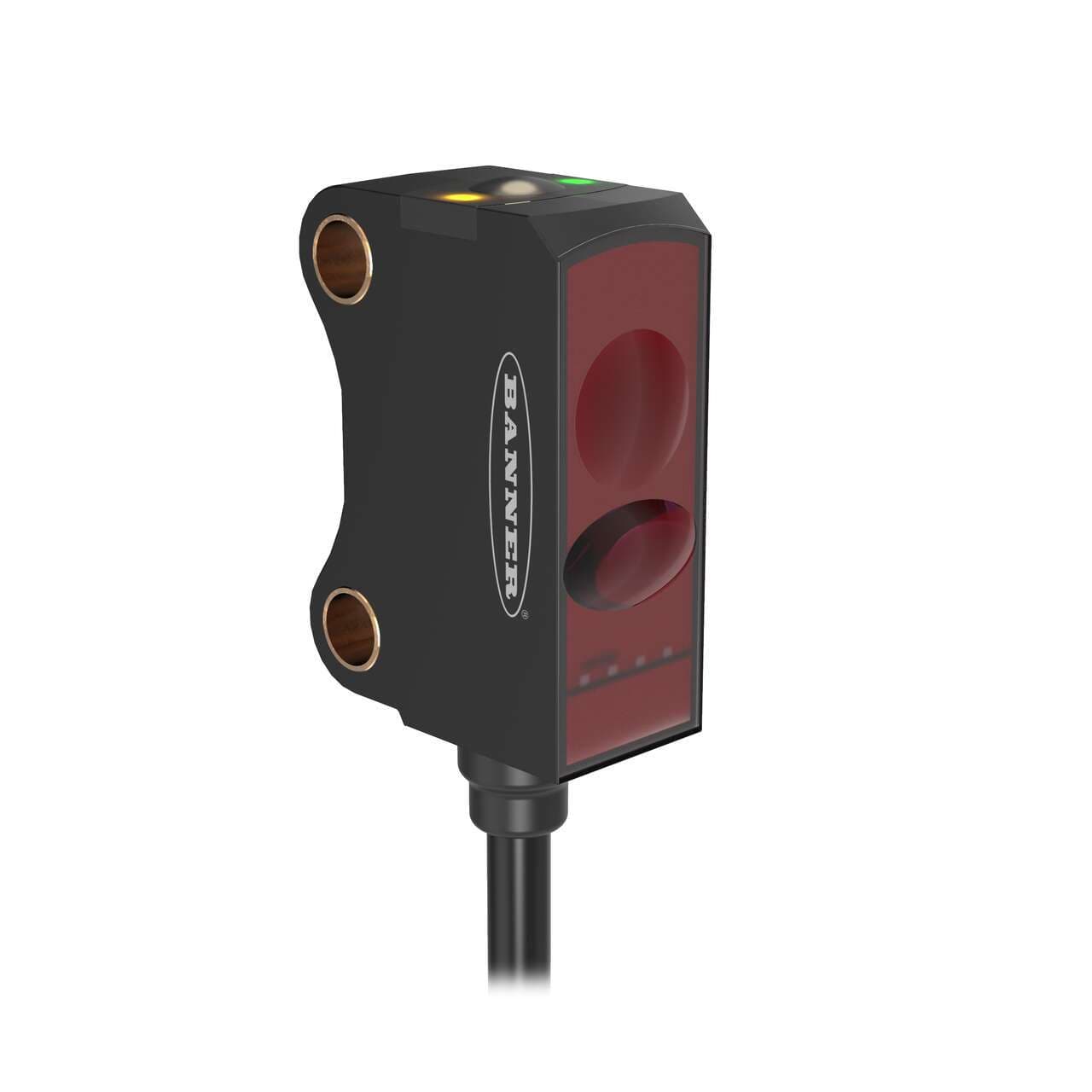

Banner Engineering VS8APFF50 is a fixed-field photo-electric sensor designed with a thermoplastic housing and a polymethyl methacrylate (PMMA) lens. It features a polyurethane (PUR) cable for connectivity. This sensor operates within an ambient air temperature range of -20 to +60°C and has a degree of protection rated at IP67, making it suitable for various environmental conditions. It operates in a Light-ON mode and includes 1 x digital output (PNP transistor) for signaling. The response time of the sensor is notably quick at 0.5ms / 0.0005 s. It comes pre-wired with a 6.5ft / 2m cable that terminates with bare end flying leads for ease of installation. The rectangular-shaped sensor emits a visible red light at a wavelength of 650 nm. It is designed to operate on a supply voltage ranging from 10Vdc to 30Vdc, with nominal voltages of 12Vdc and 24Vdc. The VS8APFF50 features a background suppression system and offers a sensing distance between 2 and 50mm. It is part of the VS8 series.
