VS8APFF50BQ3 Banner Proximity Sensors
Part#:VS8APFF50BQ3
Alt. Part#:806430
Manufacturer:Banner
Category:Proximity Sensors
Product Lifecycle:Active
Product description
VS8 Series: Blue LED Fixed Field; Range: 2 mm to 50 mm; Input: 10-30 V dc; Output: PNP; 3-pin M8 200 mm Pigtail
Product Details
- Weight 11.3398 g
- Country Of Origin DE
- Primary Housing Material PUR
- Sensing Beam Visible Blue LED
- Min Op. Temp. (°C) -20
- NEMA Rating N/A
- IP Rating IP67
- Outputs PNP
- Special Feature: Remote Teach No
- Lens Material PMMA
- Feature: Audible No
- Sensing Mode (General) Proximity
- Small Visible Spot LED
- Max Op. Temp. (°C) 60
- Delay at Power-up (ms) 300
- Feature: Timing (Hold/Delay) No
- IO Link No
- Max Sensing Distance (mm) 50
- Output response time (ms) 0.5
- Repeatability (µs) N/A
- Feature: Encapsulated No
- Sensing Mode (Detailed) Background Suppression (Fixed)
- Housing Style Rectangular
- Quick Disconnect Type M8 (Pico)
- Special Feature: Intrinsically Safe No
- Power DC
- Input/Output Discrete
- Connection Pigtail QD
- Sensing Beam Wavelength 450
- Special Feature: Water Detection No
- Adjustments N/A
- Opposed Mode Emitter/Receiver N/A
- DeviceNet No
- Power Supply/Supply Voltage 10-30 V dc
- Operation Light Operate
- Barrel Diameter (mm) N/A
- Feature: Chemical Resistant No
- Feature: Hazardous Area No
- Number of Pins 3
- Indicator LEDs
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of VS8APFF50BQ3 on Powermatic Associates is $216.00. Order now.
About the product

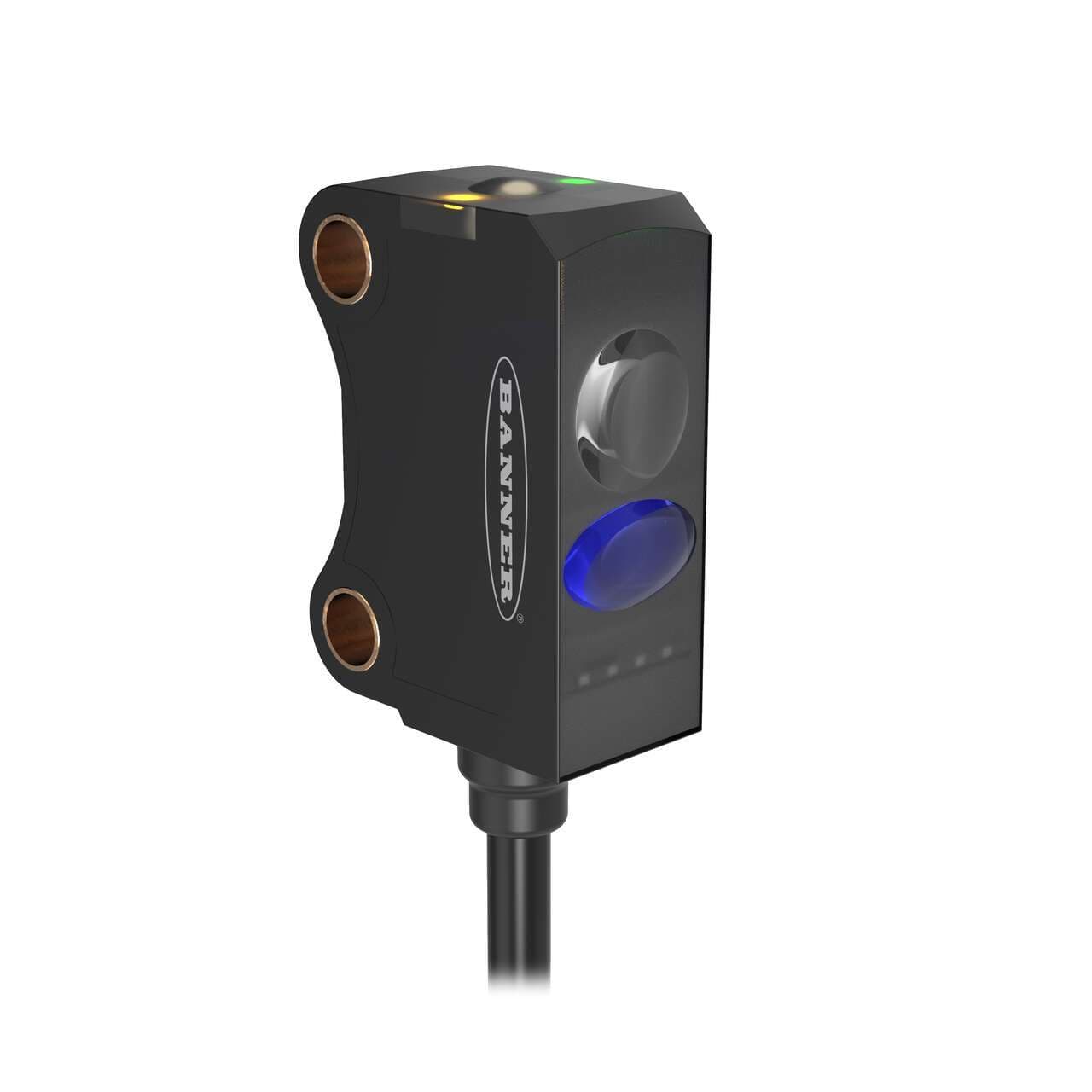

Banner Engineering VS8APFF50BQ3 is a fixed-field photo-electric sensor designed with a thermoplastic housing and polymethyl methacrylate (PMMA) lens, featuring a polyurethane (PUR) cable. It offers a degree of protection rated at IP67, making it suitable for operation in ambient air temperatures ranging from -20 to +60 degrees Celsius. This sensor operates in Light-ON mode and includes 1 x digital output (PNP transistor) with a response time of 0.5ms / 0.0005 s. It comes pre-wired with a 7.5" / 200mm pigtail terminated with a 3-pin Pico-style M8 connector. The rectangular-shaped sensor emits visible blue light at a wavelength of 450 nm and is powered by a supply voltage of 10Vdc-30Vdc (12Vdc / 24Vdc nom.). It features a background suppression system and has a sensing distance of 2...50mm. This sensor is part of the VS8 series.
VS8APFF50BQ3 Related Documents
Similar products from: Banner Proximity Sensors
Manufacturer warranty
VS8APFF50BQ3 Banner
$216.00
Your price can be lower.
Log in or Create account to check your discount
Select Qty:
$216.00
$216.00 each
Average response time: 11 minutes
Worldwide Shipping and Delivery
Secure Payment Processing
Warranty
Responsive Customer Support
Got Questions? We've Got Answers!
Need more details?
Feel free to chat with us
Compare VS8APFF50BQ3 with other Proximity Sensors products
Weight
Country Of Origin
Primary Housing Material
Sensing Beam
Min Op. Temp. (°C)
NEMA Rating
IP Rating
Outputs
Special Feature: Remote T...
Lens Material
Selected product
VS8APFF50BQ3
Banner
VS8 Series: Blue LED Fixed Field; Range: 2 mm to 50 mm; Input: 10-30 V dc; Output: PNP; 3-pin M8 200...
Weight11.3398 g
Country Of OriginDE
Primary Housing MaterialPUR
Sensing BeamVisible Blue LED
Min Op. Temp. (°C)-20
NEMA RatingN/A
IP RatingIP67
OutputsPNP
Special Feature: Remote TeachNo
Lens MaterialPMMA
VS8EAPRQ
Banner
VS8 Series: Laser Receiver; Range: 3 m; Input: 10-30 V dc; Output: PNP; 200 mm 4-pin M8 Pigtail QD
Weight10.3418976 g
Country Of OriginDE
Primary Housing MaterialPUR
Sensing BeamVisible Red LED
Min Op. Temp. (°C)-
NEMA Rating-
IP Rating-
OutputsPNP
Special Feature: Remote Teach-
Lens Material-
QS18AB6AF300Q
Banner
WORLD-BEAM: Adjustable Field Background Suppression; Cutoff Adjustment Range: 30 to 300 mm; Input: 1...
Weight63.50288 g
Country Of OriginMX
Primary Housing MaterialABS
Sensing BeamVisible Red LED
Min Op. Temp. (°C)-
NEMA Rating-
IP Rating-
OutputsBipolar (NPN & PNP)
Special Feature: Remote Teach-
Lens Material-
About the manufacturer
Powermatic Associates is an authorized Banner distributor, proud to offer an extensive range of Banner's innovative products and solutions. Banner Engineering is a renowned manufacturer specializing in industrial automation, known for their cutting-edge sensor technology, machine safety solutions, wireless connectivity, and LED lighting systems. With a precision focus on delivering high-quality eq...
Recently viewed products
Relevant products
FAQ
What is the price of VS8APFF50BQ3?
Purchase the VS8APFF50BQ3 from Powermatic Associates at the price of $216.00. Order today.
Out if stock but available for backorder.
VS8 Series: Blue LED Fixed Field; Range: 2 mm to 50 mm; Input: 10-30 V dc; Output: PNP; 3-pin M8 200 mm Pigtail
