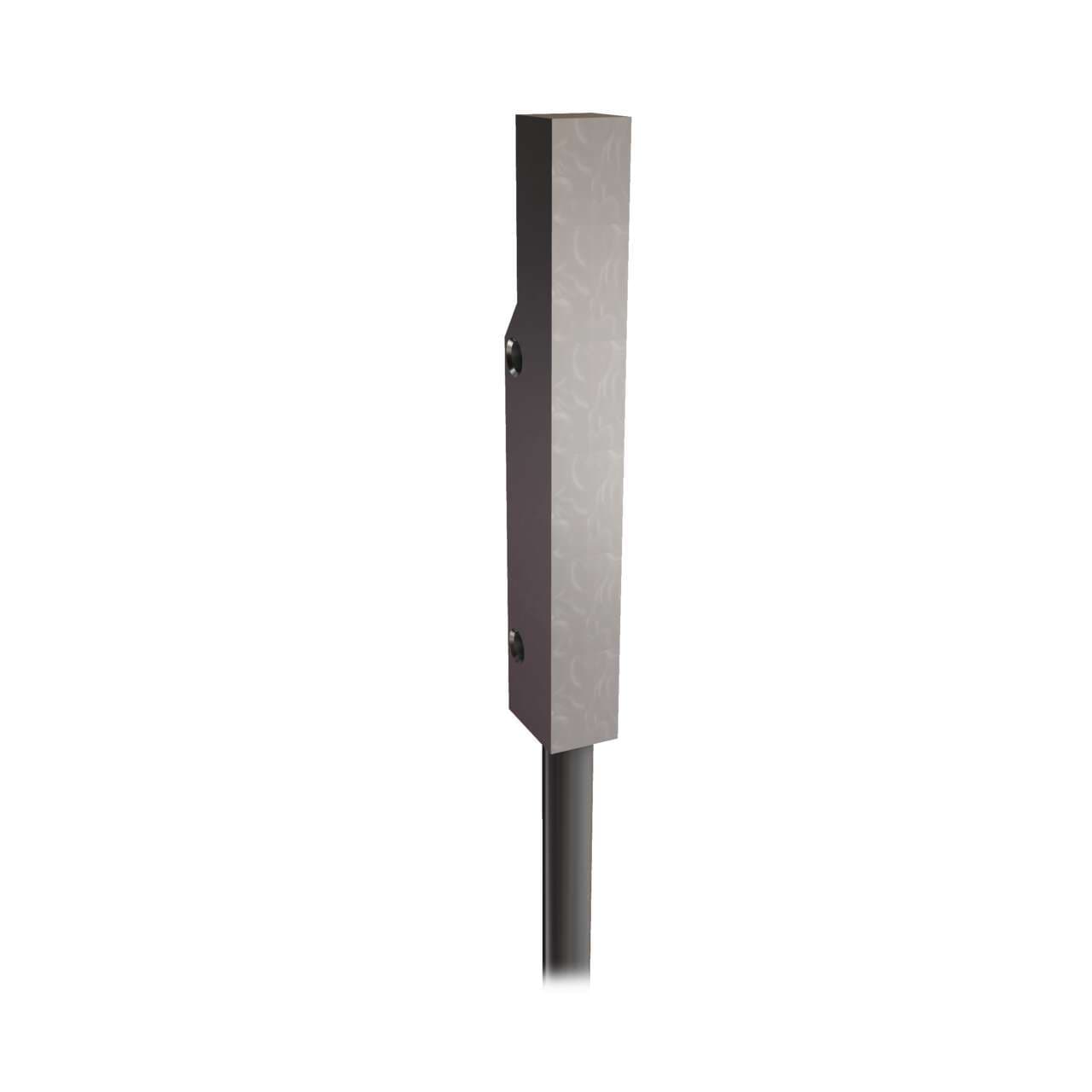

VSMQAP6CV20-PUR Banner Proximity Sensors

Name: VSMQAP6CV20-PUR
Brand: Banner
Price: 287 USD
Availability: BackOrder

VSMQAP6CV20-PUR on Powermatic Associates

Part#:VSMQAP6CV20-PUR

Alt. Part#:800958

Manufacturer:Banner

Category:Proximity Sensors

Product Lifecycle:Active

Product description

VSM Series: 5x7x40 mm Rectangular Diffuse; Range: 20 mm; Input 10-30 V dc; Output: 1 PNP LO (Light Operate); PUR 2 m (6.5 ft) Cable

Product Details

Weight
45.3592 g
Country Of Origin
CH
Cable Length (m)
2
Power Supply/Supply Voltage
10-30 V dc
Repeatability (µs)
1000
Barrel Diameter (mm)
N/A
DeviceNet
No
Operation
Light Operate
Feature: Encapsulated
No
IO Link
No
Sensing Mode (Detailed)
Diffuse
Output response time (ms)
2.5
Opposed Mode Emitter/Receiver
N/A
Feature: Audible
No
Sensing Mode (General)
Proximity
Special Feature: Water Detection
No
Max Op. Temp. (°C)
55
Indicator
LEDs
Sensing Beam
Infrared LED
Outputs
PNP

Special Feature: Remote Teach

Feature: Timing (Hold/Delay)

Input/Output

Discrete

Quick Disconnect Type

No QD

Number of Pins

Feature: Hazardous Area

Max Sensing Distance (mm)

Special Feature: Intrinsically Safe

Lens Material

Sapphire

Primary Housing Material

Stainless Steel

Housing Style

Rectangular

Delay at Power-up (ms)

Adjustments

N/A

Power

Connection

Cable

IP Rating

IP67

Feature: Chemical Resistant

Yes

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of VSMQAP6CV20-PUR on Powermatic Associates is $287.00. Order now.

About the product

Banner Engineering VSMQAP6CV20-PUR is a photo-electric sensor designed with a stainless steel housing and sapphire optics, complemented by a polyurethane (PUR) cable for connectivity. It offers a degree of protection rated at IP67, making it suitable for operation in environments with an ambient air temperature up to +55°C. This sensor operates in Light-ON mode and features a single digital output utilizing a PNP transistor. It boasts a rapid response time of 2.5ms / 0.0025 s. The sensor is pre-wired with a 6.5ft / 2m PUR cable that terminates with bare end flying leads, ensuring easy installation. Its rectangular shape and infrared (IR) light color are designed for diffuse mode operation, with a sensing distance of 20mm. The VSMQAP6CV20-PUR operates on a supply voltage ranging from 10Vdc to 30Vdc (with 12Vdc / 24Vdc nominal), and it is part of the VSM series.

VSMQAP6CV20-PUR Related Documents

157367.pdf
