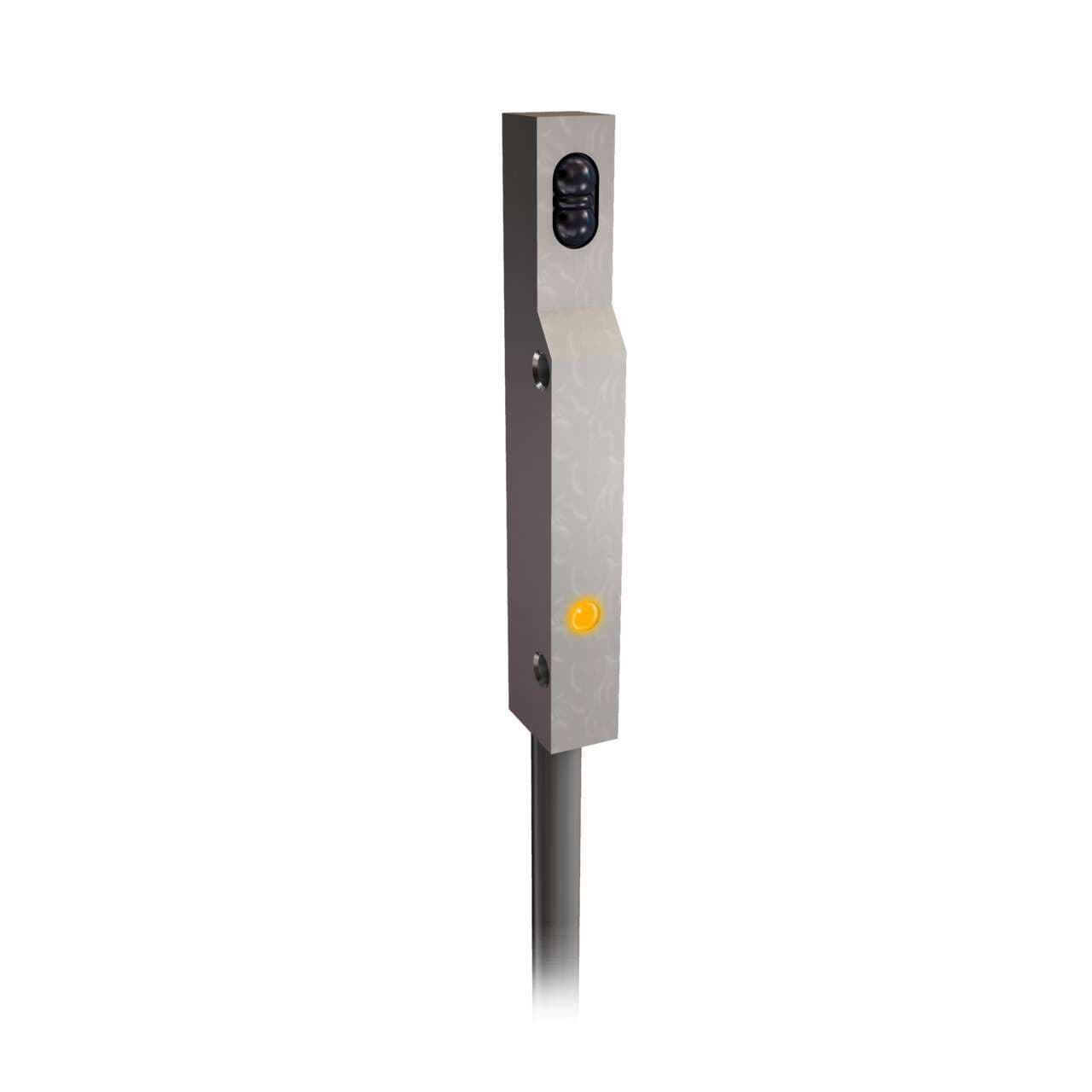

VSMQAP6CV20 Banner Proximity Sensors
Part#:VSMQAP6CV20
Alt. Part#:13383
Manufacturer:Banner
Category:Proximity Sensors
Product Lifecycle:Active
Product description
VSM Series: 5x7x40 mm Rectangular Diffuse; Range: 20 mm; Input 10-30 V dc; Output: 1 PNP LO (Light Operate); 2 m (6.5 ft) Cable
Product Details
- Weight 45.3592 g
- Country Of Origin CH
- Sub-range name VSM series
- Sensing distance 20mm
- Supply voltage (DC) 10Vdc-30Vdc (12Vdc / 24Vdc nom.)
- Functions Photo-electric sensor yellow LED (light sensed)
- Main function Sensor (Photo-electric)
- Shape Rectangular
- Degree of protection IP67
- Primary brand Banner Engineering
- Design diffuse mode
- Light Color Infrared (IR)
- Response time 2.5ms / 0.0025 s
- Order code / Manufacturer SKU 13383
- Connection type Pre-wired with 6.5ft / 2m cable terminated with bare end flying leads
- Ambient air temperature for operation +55 °C
- Operating mode Light-ON
- Material Stainless steel housing Sapphire optics
- Digital outputs 1 x digital output (PNP transistor)
- Housing Style Rectangular
- Output response time (ms) 2.5
- Power DC
- Operation Light Operate
- IP Rating IP67
- DeviceNet No
- Sensing Mode (Detailed) Diffuse
- Primary Housing Material Stainless Steel
- Connection Cable
- Adjustments N/A
- Max Sensing Distance (mm) 20
- Special Feature: Remote Teach No
- Sensing Beam Infrared LED
- Repeatability (µs) 1000
- Max Op. Temp. (°C) 55
- Opposed Mode Emitter/Receiver N/A
- Outputs PNP
- Cable Length (m) 2
- Lens Material Sapphire
- Feature: Chemical Resistant Yes
- Sensing Mode (General) Proximity
- Quick Disconnect Type No QD
- Number of Pins 3
- Feature: Audible No
- Input/Output Discrete
- Power Supply/Supply Voltage 10-30 V dc
- Special Feature: Water Detection No
- Barrel Diameter (mm) N/A
- Delay at Power-up (ms) 20
- Feature: Timing (Hold/Delay) No
- IO Link No
- Indicator LEDs
- Special Feature: Intrinsically Safe No
- Feature: Encapsulated No
- Feature: Hazardous Area No
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of VSMQAP6CV20 on Powermatic Associates is $248.00. Order now.
About the product
Banner Engineering VSMQAP6CV20 is a photo-electric sensor designed with a stainless steel housing and sapphire optics, ensuring durability and clarity. It offers an IP67 degree of protection, making it suitable for use in environments where it may be exposed to dust and water. This sensor operates at an ambient air temperature of up to +55°C and features a Light-ON operating mode. It is equipped with 1 x digital output (PNP transistor) and boasts a quick response time of 2.5ms / 0.0025 s. The VSMQAP6CV20 is pre-wired with a 6.5ft / 2m cable that terminates with bare end flying leads, facilitating easy installation. Its rectangular shape and infrared (IR) light color are designed for diffuse mode operation, with a sensing distance of 20mm. The sensor operates on a supply voltage of 10Vdc-30Vdc (12Vdc / 24Vdc nom.), making it versatile for various applications. It is part of the VSM series, specifically designed for photo-electric sensing tasks.
