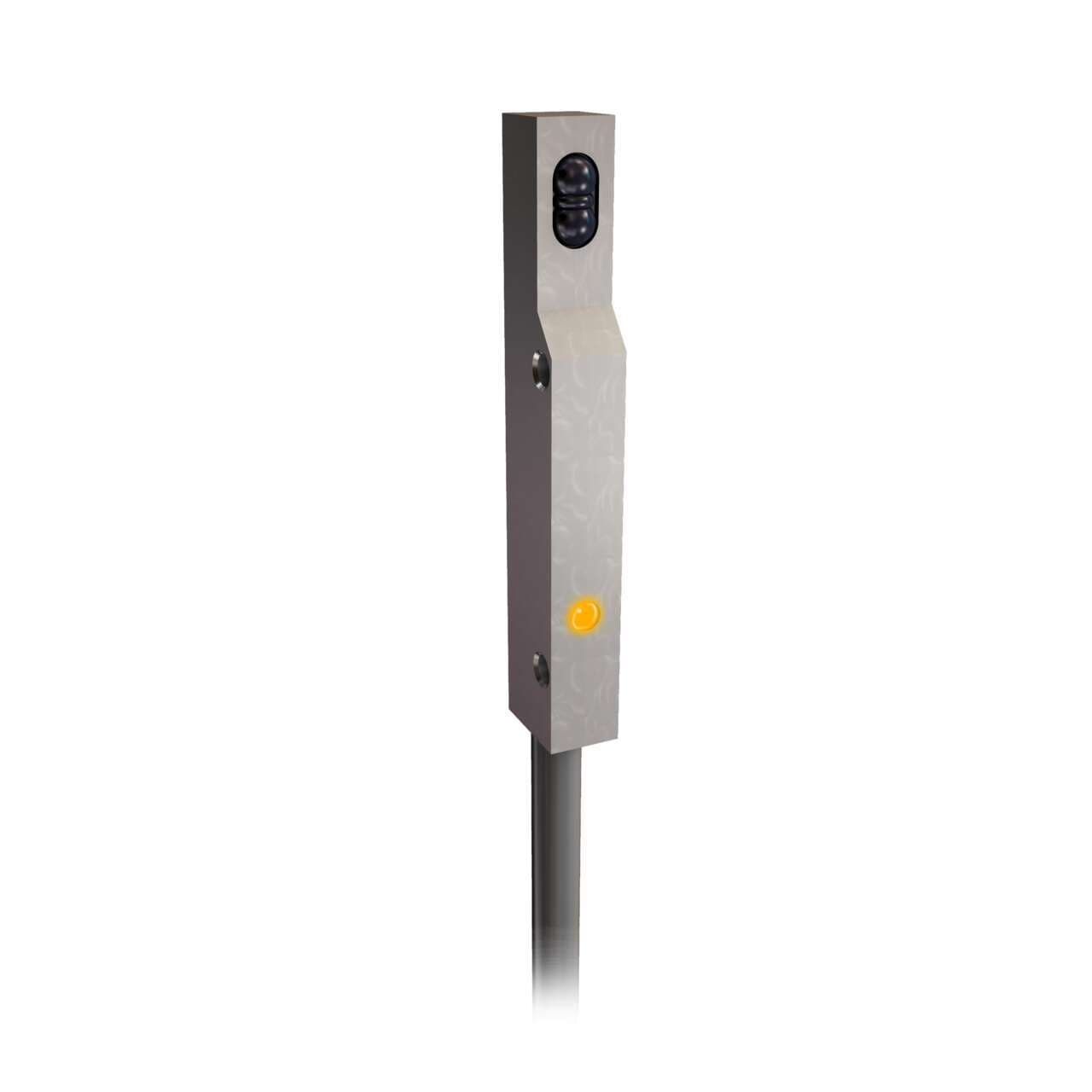

VSMQAP6CV90Q2 Banner Proximity Sensors

Name: VSMQAP6CV90Q2
Brand: Banner
Price: 238 USD
Availability: BackOrder

Part#:VSMQAP6CV90Q2

Alt. Part#:18181

Manufacturer:Banner

Category:Proximity Sensors

Product Lifecycle:Active

Product description

VSM Series: 5x7x40 mm Rectangular Diffuse; Range: 90 mm; Input 10-30 V dc; Output: 1 PNP LO (Light Operate); 3-pin M8 150 mm (6 in) QD Pigtail

Product Details

Weight
22.6796 g
Country Of Origin
CH
Outputs
PNP
Special Feature: Water Detection
No
Indicator
LEDs
DeviceNet
No
Primary Housing Material
Stainless Steel
Special Feature: Intrinsically Safe
No
Number of Pins
3
Feature: Audible
No
Power
DC
Max Sensing Distance (mm)
90
Quick Disconnect Type
M8 (Pico)
Barrel Diameter (mm)
N/A
Sensing Mode (General)
Proximity
Operation
Light Operate
Delay at Power-up (ms)
20
Housing Style
Rectangular
Max Op. Temp. (°C)
55
Repeatability (µs)
1000

Sensing Beam

Infrared LED

Connection

Other

Output response time (ms)

2.5

Adjustments

N/A

Sensing Mode (Detailed)

Diffuse

Power Supply/Supply Voltage

10-30 V dc

IP Rating

IP67

Input/Output

Discrete

Special Feature: Remote Teach

Lens Material

Sapphire

Feature: Hazardous Area

Feature: Chemical Resistant

Yes

Feature: Encapsulated

IO Link

Opposed Mode Emitter/Receiver

N/A

Feature: Timing (Hold/Delay)

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of VSMQAP6CV90Q2 on Powermatic Associates is $238.00. Order now.

About the product

Banner Engineering VSMQAP6CV90Q2 is a photo-electric sensor designed with a stainless steel housing and sapphire optics, ensuring durability and resilience. It operates within an ambient air temperature of up to +55°C and features a light-ON operating mode. This sensor is equipped with a single digital output (PNP transistor) and boasts a rapid response time of 2.5ms / 0.0025 s. For connectivity, it comes pre-wired with a 6" / 150mm pigtail that terminates with a 3-pin Pico-style M8 connector. The rectangular-shaped sensor emits infrared (IR) light and is designed for diffuse mode operation, with a sensing distance of 90mm. It requires a supply voltage of 10Vdc-30Vdc, with 12Vdc / 24Vdc nominal. This sensor is part of the VSM series and is rated with a degree of protection of IP67, indicating its capability to withstand dust and water ingress.
