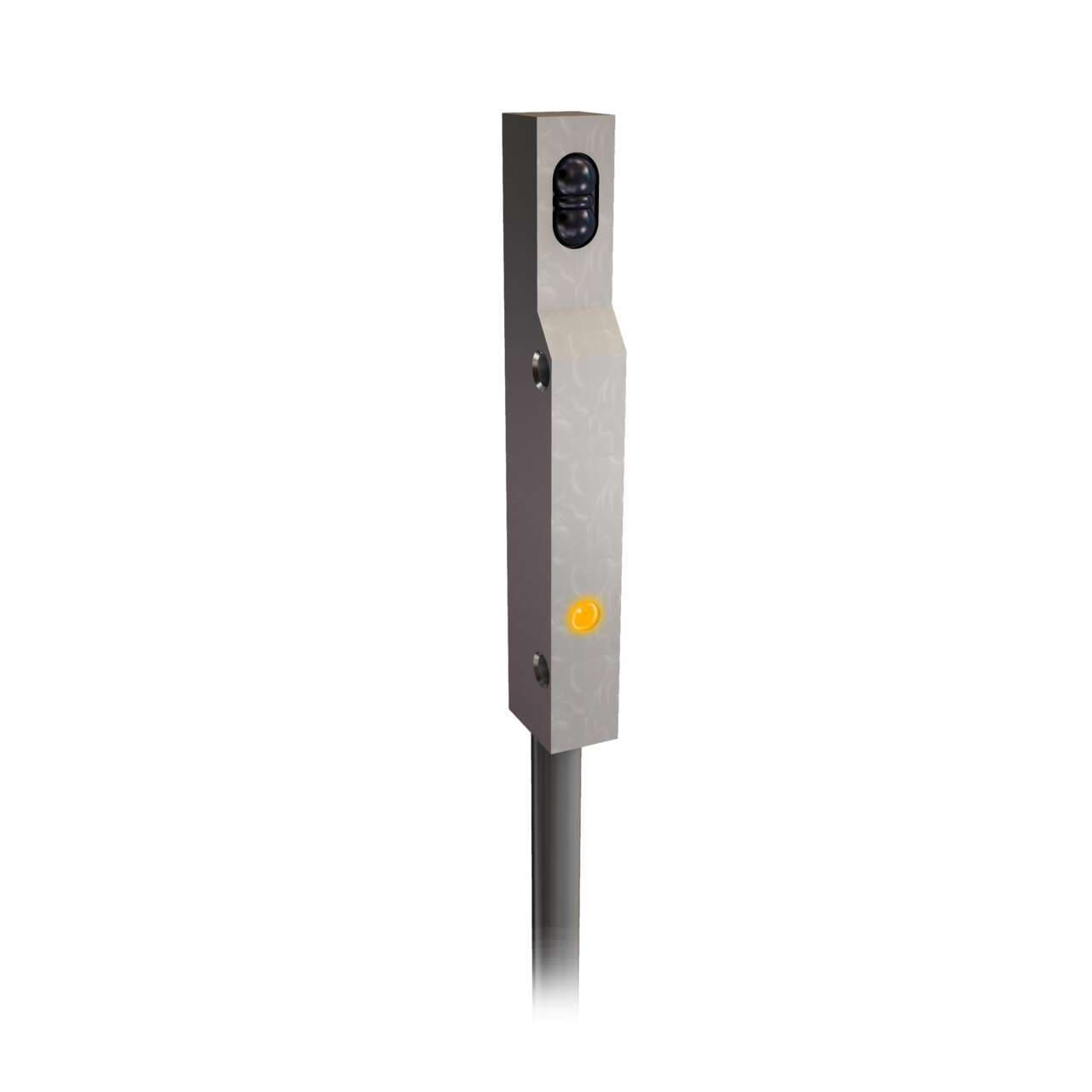

VSMQAP6CV90 Banner Proximity Sensors
Part#:VSMQAP6CV90
Alt. Part#:13397
Manufacturer:Banner
Category:Proximity Sensors
Product Lifecycle:Active
Product description
VSM Series: 5x7x40 mm Rectangular Diffuse; Range: 90 mm; Input 10-30 V dc; Output: 1 PNP LO (Light Operate); 2 m (6.5 ft) Cable
Product Details
- Weight 45.3592 g
- Country Of Origin CH
- Primary brand Banner Engineering
- Design diffuse mode
- Light Color Infrared (IR)
- Response time 2.5ms / 0.0025 s
- Sub-range name VSM series
- Digital outputs 1 x digital output (PNP transistor)
- Material Stainless steel housing Sapphire optics
- Main function Sensor (Photo-electric)
- Sensing distance 90mm
- Operating mode Light-ON
- Functions Photo-electric sensor yellow LED (light sensed)
- Shape Rectangular
- Order code / Manufacturer SKU 13397
- Supply voltage (DC) 10Vdc-30Vdc (12Vdc / 24Vdc nom.)
- Connection type Pre-wired with 6.5ft / 2m cable terminated with bare end flying leads
- Ambient air temperature for operation +55 °C
- Degree of protection IP67
- IP Rating IP67
- IO Link No
- Primary Housing Material Stainless Steel
- Quick Disconnect Type No QD
- Feature: Encapsulated No
- Number of Pins 3
- Sensing Mode (Detailed) Diffuse
- Connection Cable
- Repeatability (µs) 1000
- Opposed Mode Emitter/Receiver N/A
- Power DC
- Outputs PNP
- Delay at Power-up (ms) 20
- DeviceNet No
- Housing Style Rectangular
- Output response time (ms) 2.5
- Special Feature: Water Detection No
- Feature: Hazardous Area No
- Sensing Beam Infrared LED
- Power Supply/Supply Voltage 10-30 V dc
- Special Feature: Remote Teach No
- Indicator LEDs
- Input/Output Discrete
- Max Op. Temp. (°C) 55
- Barrel Diameter (mm) N/A
- Feature: Timing (Hold/Delay) No
- Cable Length (m) 2
- Sensing Mode (General) Proximity
- Special Feature: Intrinsically Safe No
- Adjustments N/A
- Feature: Audible No
- Max Sensing Distance (mm) 90
- Operation Light Operate
- Lens Material Sapphire
- Feature: Chemical Resistant Yes
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of VSMQAP6CV90 on Powermatic Associates is $229.00. Order now.
About the product
Banner Engineering VSMQAP6CV90 is a photo-electric sensor with a stainless steel housing and sapphire optics, designed for diffuse mode operation. It features a degree of protection rated at IP67, making it suitable for use in environments where it may be exposed to dust and water. This sensor operates within an ambient air temperature range up to +55°C and has a light-ON operating mode. It is equipped with one digital output (PNP transistor) and boasts a quick response time of 2.5ms / 0.0025 s. The VSMQAP6CV90 comes pre-wired with a 6.5ft / 2m cable that terminates with bare end flying leads, facilitating easy installation. Its rectangular shape is designed for straightforward mounting, and it utilizes infrared (IR) light. The sensor operates on a supply voltage range of 10Vdc-30Vdc, with 12Vdc / 24Vdc nominal, and offers a sensing distance of 90mm. This part is part of the VSM series.
