8501KPR12V24 Schneider Electric Industrial Automation Components

8501KPR12V24 on Powermatic Associates
Schneider Electric

Part#:8501KPR12V24

Manufacturer:Schneider Electric

Category:Industrial Automation Components

Product Lifecycle:Active

Product description

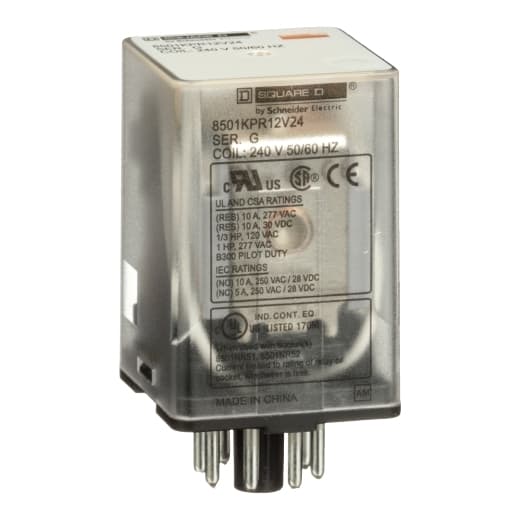

Schneider Electric - 8501KPR12V24

Product Details

  • Contact Material
    Silver alloy (AgNi)
  • [Uc] Control Circuit Voltage
    240 V AC
  • Horsepower Rating
    1 hp 277 V AC
  • Product Range
    8501K
  • Shape Of Pins
    Tubular
  • Product Type
    Relay
  • Manual Operator
    Without test button
  • Contact Composition
    DPDT
  • Relay Type
    General purpose
  • Mounting Type
    Socket
  • Operating Time
    20 ms - pick-up 20 ms - drop-out
  • For Use With
    8501NR52 8501NR51
  • Maximum Switching Voltage
    300 V AC 30 V DC

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of 8501KPR12V24 on Powermatic Associates is $47.58. Order now.
