8538SCASP3 Schneider Electric Industrial Automation Components

8538SCASP3 on Powermatic Associates
Schneider Electric

Part#:8538SCASP3

Manufacturer:Schneider Electric

Category:Industrial Automation Components

Product Lifecycle:Active

Product description

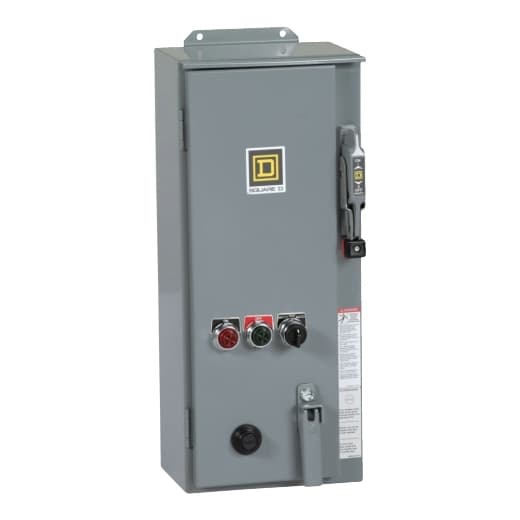

Schneider Electric - 8538SCASP3

Product Details

  • Control Circuit Voltage
    110 V AC 50 Hz 120 V AC 60 Hz
  • Pilot Light
    Red indicator on LED Green indicator off LED
  • Horsepower Rating
    10 hp 460 V AC, 3 phase 10 hp 575 V AC, 3 phase
  • Handle Swing
    3.25 in (82.55 mm)
  • Width
    9.5 in (241.30 mm)
  • Auxiliary Contacts
    2 NO + 2 NC
  • Depth
    8.34 in (211.84 mm)
  • Height
    24 in (609.60 mm)
  • Thermal Overload Type
    Melting alloy 3
  • Control Units
    Selector switch HAND-OFF-AUTO)
  • NEMA Size
    1
  • Disconnect Type
    Fusible disconnect switch H and K, 30 A, electrical SPDT
  • Maximum Voltage Rating
    600 V AC
  • Line Rated Current
    27 A
  • Product
    Combination Starter
  • Number Of Poles
    3P
  • Type
    S
  • Starter Type
    Non reversing
  • Control Circuit Type
    Separate control circuit

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of 8538SCASP3 on Powermatic Associates is $3,615.00. Order now.
