8538SDASP5 Schneider Electric Industrial Automation Components

8538SDASP5 on Powermatic Associates
Schneider Electric

Part#:8538SDASP5

Manufacturer:Schneider Electric

Category:Industrial Automation Components

Product Lifecycle:Active

Product description

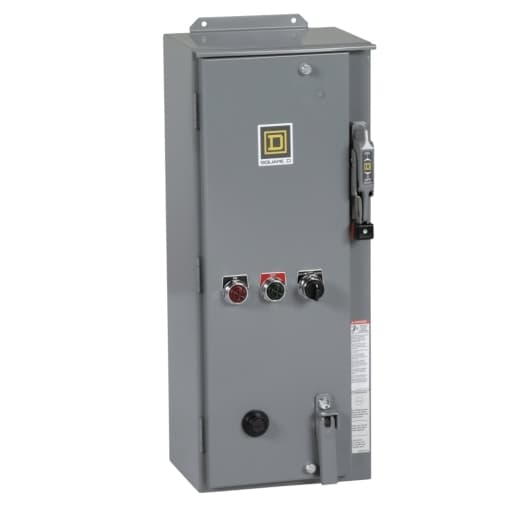

Schneider Electric - 8538SDASP5

Product Details

  • Pilot Light
    Red indicator on LED Green indicator off LED
  • Control Circuit Voltage
    110 V AC 50 Hz 120 V AC 60 Hz
  • Horsepower Rating
    15 hp 460 V AC, 3 phase 15 hp 575 V AC, 3 phase
  • Height
    27.75 in (704.85 mm)
  • Width
    10.5 in (266.70 mm)
  • Depth
    9.59 in (243.59 mm)
  • Auxiliary Contacts
    2 NO + 2 NC
  • Thermal Overload Type
    Solid state Motor Logic class 10/20 15…45 A
  • Control Units
    Selector switch HAND-OFF-AUTO)
  • NEMA Size
    2
  • Disconnect Type
    Fusible disconnect switch H and K, 30 A, electrical SPDT
  • Line Rated Current
    45 A
  • Number Of Poles
    3P
  • Maximum Voltage Rating
    600 V AC
  • Type
    S
  • Control Circuit Type
    Separate control circuit
  • Starter Type
    Non reversing
  • Product
    Combination Starter

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of 8538SDASP5 on Powermatic Associates is $4,644.00. Order now.
