ATV630D37N4 Schneider Electric Industrial Automation Components

ATV630D37N4 on Powermatic Associates
Schneider Electric

Part#:ATV630D37N4

Manufacturer:Schneider Electric

Category:Industrial Automation Components

Product Lifecycle:Active

Product description

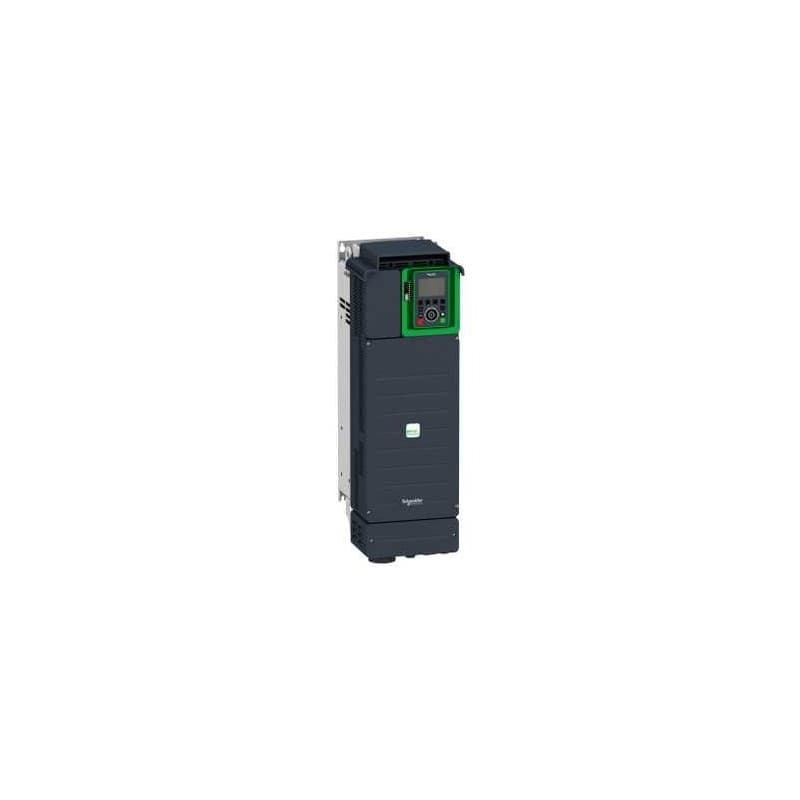

Schneider Electric ATV630D37N4 is a Variable Speed/Frequency Drive (VSD/VFD) / Inverter from the Altivar Process 630 series, designed for variable and constant load torque applications, including optimized torque mode for PM (permanent magnet) motors and sensorless estimated flow rate. It features accurate measurement and installation energy drift detection, embedded Ethernet for direct system configuration and monitoring, and integration of actual pump curves for system optimization. The drive limits overvoltage at motor terminals and supports continuous and historical real-time measurements with customizable dashboards, alongside predictive and preventive maintenance tracking functions. It includes a built-in EMC filter (class C2), is ATEX compliant, and operates on a supply voltage of 323-528Vac (380Vac / 400Vac / 480Vac / 500Vac nom.). Dimensions are H673mm x W226mm x D271mm, with an IP21 UL type 1 degree of protection. Rated current is 74.5A (normal-duty; 4kHz), 61.5A (heavy-duty; 4kHz), with a maximum current of 82A (normal-duty; for 60s) and 92.3A (heavy-duty; for 60s). Wall mounting is the prescribed mounting mode. Communication protocols include Modbus, Modbus TCP, and Ethernet, designed for a 3-phase (3P) network with an output frequency of 0.1-500 Hz. It features 2 x analog outputs (0-10Vdc / 0-20mA), 4 x digital inputs (24Vdc; sink/source) plus 2 additional digital inputs programmable as pulse inputs, and 1 x digital input for Safe Torque Off (STO), alongside 1 x digital output (C/O SPDT relay contact) and 2 x digital outputs (NO relay contacts). Analog inputs include 1 x analog input and 2 x analog inputs compatible with various signal types. Current consumption is specified for different operational modes, with rated active power of 37kW (normal-duty) and 30kW (heavy-duty), corresponding to 50HP and 40HP, respectively.

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of ATV630D37N4 on Powermatic Associates is $7,269.24. Order now.
