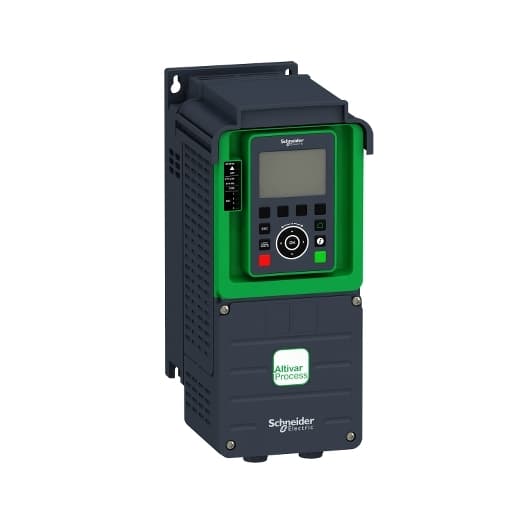

ATV630U22M3 Schneider Electric Industrial Automation Components

Product Details

• Nominal Switching Frequency
  4 kHz
• Speed Drive Output Frequency
  0.1…599 Hz
• Braking To Standstill
  By DC injection
• Net Weight
  9.92 lb(US) (4.5 kg)
• EMC Filter
  Without EMC filter
• Isolation
  Between power and control terminals
• Discrete Input Number
  8
• Degree Of Protection
  UL type 1 UL 508C
• [Us] Rated Supply Voltage
  200...240 V - 15...10 %
• Output Voltage
  <= power supply voltage
• Method Of Access
  Slave Modbus TCP
• Product Or Component Type
  Variable speed drive
• Prospective Line Isc
  50 kA
• Acceleration And Deceleration Ramps
  Linear adjustable separately from 0.01...9999 s
• Exchange Mode
  Half duplex, full duplex, autonegotiation Ethernet/Modbus TCP
• Depth
  7.99 in (203 mm)
• Refresh Time
  Relay output R1, R2, R3)5 ms +/- 0.5 ms)
• Relay Output Number
  3
• Analogue Input Number
  3
• Type Of Cooling
  Forced convection
Output Frequency
0.0001…0.5 kHz
Mounting Mode
Wall mount
Width
5.67 in (144 mm)
Device Short Name
ATV630
Supply Frequency
50...60 Hz - 5...5 %
Product Specific Application
Process and utilities
Safety Function
STO (safe torque off) SIL 3
Analogue Output Number
2
Motor Power Range AC-3
2.2…3 kW 200…240 V 3 phase
Range Of Product
Altivar Process ATV600
Variant
Standard version
Number Of Addresses
1…247 Modbus serial
Height
13.78 in (350 mm)
Minimum Switching Current
Relay output R1, R2, R3 5 mA 24 V DC
Continuous Output Current
11.2 A 4 kHz normal duty 8 A 4 kHz heavy duty
Frequency Resolution
Display unit 0.1 Hz Analog input 0.012/50 Hz
Accuracy
+/- 0.6 % AI1, AI2, AI3 for a temperature variation 60 °C analog input +/- 1 % AO1, AO2 for a temperature variation 60 °C analog output
Maximum Horse Power Rating
3 hp normal duty 2 hp heavy duty
Maximum Transient Current
12 A 60 s heavy duty) 12.3 A 60 s normal duty)
IP Degree Of Protection
IP21IEC 61800-5-1 IP21IEC 60529
Asynchronous Motor Control Profile
Variable torque standard Constant torque standard Optimized torque mode
Input Compatibility
DI1...DI6: discrete input level 1 PLC conforming to EN/IEC 61131-2 DI5, DI6: discrete input level 1 PLC conforming to IEC 65A-68 STOA, STOB discrete input level 1 PLC EN/IEC 61131-2
Analogue Input Type
AI1, AI2, AI3 software-configurable voltage 0...10 V DC 30 kOhm 12 bits AI1, AI2, AI3 software-configurable current 0...20 mA/4...20 mA 250 Ohm 12 bits
Product Destination
Synchronous motors Asynchronous motors
Switching Frequency
2...12 kHz adjustable 4...12 kHz with derating factor
Permissible Temporary Current Boost
1.1 x In during 60 s (normal duty) 1.5 x In during 60 s (heavy duty)
Apparent Power
3 kVA 240 V normal duty) 2.2 kVA 240 V heavy duty)
Motor Power Kw
2.2 kW normal duty) 1.5 kW heavy duty)
Linearity Error
AI1, AI2, AI3 +/- 0.15 % of maximum value analog input AO1, AO2: +/- 0.2 % for analog output
Synchronous Motor Control Profile
Permanent magnet motor Synchronous reluctance motor
Connector Type
RJ45 (on the remote graphic terminal) for Ethernet/Modbus TCP RJ45 (on the remote graphic terminal) for Modbus serial
Analogue Output Type
Software-configurable voltage AO1, AO2 0...10 V DC 470 Ohm 10 bits Software-configurable current AO1, AO2: 0...20 mA, resolution 10 bits
Communication Port Protocol
Ethernet Modbus serial Modbus TCP
Maximum Switching Current
Relay output R1, R2, R3 resistive, cos phi = 1 3 A 250 V AC Relay output R1, R2, R3 resistive, cos phi = 1 3 A 30 V DC Relay output R1, R2, R3 inductive, cos phi = 0.4 7 ms 2 A 250 V AC Relay output R1, R2, R3 inductive, cos phi = 0.4 7 ms
Local Signalling
3 LEDs for local diagnostic 3 LEDs (dual colour) for embedded communication status 4 LEDs (dual colour) for communication module status 1 LED (red) for presence of voltage
Motor Slip Compensation
Automatic whatever the load Not available in permanent magnet motor law Can be suppressed Adjustable
Discrete Input Type
DI1...DI6 programmable, 24 V DC (<= 30 V), impedance: 3.5 kOhm DI5, DI6 programmable as pulse input 0…30 kHz, 24 V DC <= 30 V) STOA, STOB safe torque off, 24 V DC <= 30 V)> 2.2 kOhm
Supply
External supply for digital inputs 24 V DC 19…30 V), <1.25 mA overload and short-circuit protection Internal supply for reference potentiometer (1 to 10 kOhm) 10.5 V DC +/- 5 %, <10 mA overload and short-circuit protection Internal supply for di
Electrical Connection
Control: removable screw terminals 0.5...1.5 mm²/AWG 20...AWG 16 Motor screw terminal 2.5...6 mm² AWG 14...AWG 10 Line side screw terminal 2.5...6 mm² AWG 14...AWG 10
Relay Output Type
Configurable relay logic R1 fault relay NO/NC 100000 cycles Configurable relay logic R2 sequence relay NO 100000 cycles Configurable relay logic R3 sequence relay NO 100000 cycles
Sampling Duration
2 ms +/- 0.5 ms DI1...DI4) - discrete input 5 ms +/- 1 ms DI5, DI6) - discrete input 5 ms +/- 0.1 ms AI1, AI2, AI3) - analog input 10 ms +/- 1 ms AO1) - analog output
Line Current
8.4 A 200 V normal duty) 7.2 A 240 V normal duty) 6 A 200 V heavy duty) 5.3 A 240 V heavy duty)
Discrete Input Logic
Positive logic (source) (DI1...DI6), < 5 V (state 0), > 11 V (state 1) Negative logic (sink) (DI1...DI6), > 16 V (state 0), < 10 V (state 1) Positive logic (source) (DI5, DI6), < 0.6 V (state 0), > 2.5 V (state 1) Positive logic (source) ST
Option Card
Slot A: communication module, Profibus DP V1 Slot A: communication module, Profinet Slot A: communication module, DeviceNet Slot A: communication module, Modbus TCP/EtherNet/IP Slot A: communication module, CANopen daisy chain RJ45

Variable Speed Drive Application Selection
Compressor centrifugal Building - HVAC Other application Food and beverage processing Fan Mining mineral and metal Pump Mining mineral and metal Fan Oil and gas Other application Water and waste water Screw compressor Buildin
Protection Type
Thermal protection motor Safe torque off motor Motor phase break motor Thermal protection drive Safe torque off drive Overheating drive Overcurrent between output phases and earth drive Overload of output voltage drive
