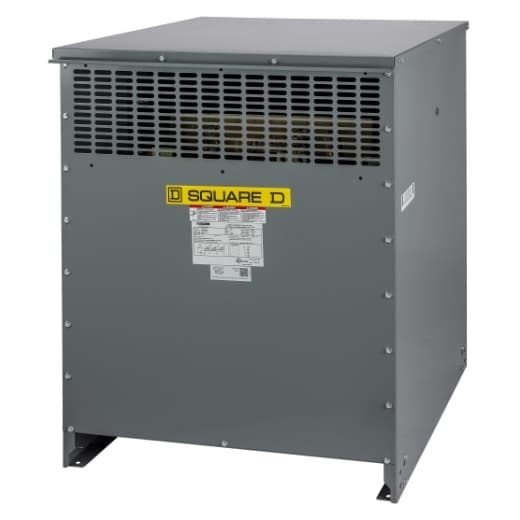

EXN112T3HFCU Schneider Electric Industrial Automation Components

Product Details

• Product Or Component Type
  DOE 2016 energy efficient transformer
• Primary Voltage
  480 V delta
• DOE Efficiency
  98.87 % at 35 % load factor , 167 °F (75.0 °C)
• Height
  37.52 in (953 mm)
• Primary Operational Current
  135.32 A 312.27 A 112.5 kVA
• Let Through Current
  9.13 kA
• Network Frequency
  60 Hz
• Box Number
  21M
• Transformer Type
  Energy efficient
• %IX
  3.38 %
• Range Of Product
  Square D
• Type Of Cooling
  Natural convection
• Basic IMP Level (BIL)
  10 kV
• Depth
  28.43 in (722 mm)
• Number Of Mounting Holes
  0.51 in (13 mm)
• Device Application
  Low voltage electrical distribution
• Width
  31.30 in (795 mm)
• Device Short Name
  DOE 2016
• %IZ
  3.79 %
• Rated Operational Power In VA
  112.5 kVA
Coil Material
Copper
X/R Ratio
1.80
Net Weight
899.00 lb(US) (407.78 kg)
Phase
3 phase
Secondary Voltage
208Y/120 V
Inrush Current
1529 A
Number Of Tap-Offs
2 2.5 % FCAN 4 2.5 % FCBN
Sound Level
47 dB 6 dB NEMA ST-20
Temperature Rise
115 °C 220 °C insulated
Electrical Connection
4 Hole Nema Pad secondary 0.44 in (11.1 mm) 6 Hole Nema Pad sec - XO 0.44 in (11.1 mm) 4 Hole Nema Pad primary 0.44 in (11.1 mm)
Transformer Losses
213 no load (core loss) 2145 load loss (coil loss)
Degree Of Protection
UL type 2 UL type 3R, with 7400WS21M
Mounting Support
Floor Floor, with 7400FMB Ceiling, with 7400CMB21M
Transformer BTU/HR
930 16.6 % 1184 25 % 2557 50 % 4844 75 % 8046 100 %
