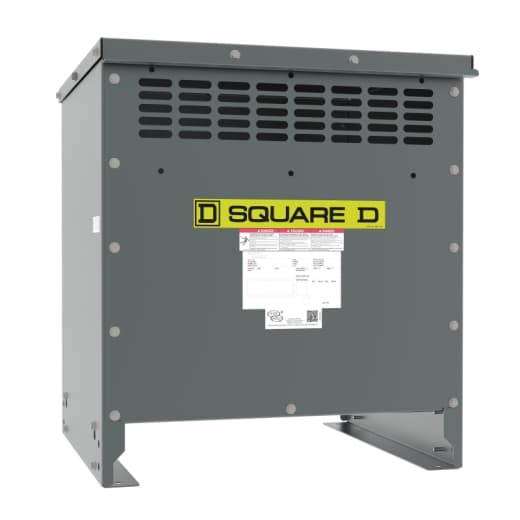

EXN15T65H Schneider Electric Industrial Automation Components

Product Details

• Device Short Name
  DOE 2016
• Phase
  3 phase
• Primary Voltage
  600 V delta
• %IZ
  4.32 %
• Width
  21.50 in (546 mm)
• Transformer Type
  Energy efficient
• DOE Efficiency
  97.96 % at 35 % load factor , 167 °F (75.0 °C)
• Height
  23.98 in (609 mm)
• Net Weight
  188.01 lb(US) (85.28 kg)
• Box Number
  17M
• Primary Operational Current
  14.43 A 41.64 A 15 kVA
• Range Of Product
  Square D
• Secondary Voltage
  208Y/120 V
• %IX
  1.78 %
• Depth
  21.18 in (538 mm)
• Rated Operational Power In VA
  15 kVA
• Let Through Current
  0.96 kA
• Device Application
  Low voltage electrical distribution
• Product Or Component Type
  DOE 2016 energy efficient transformer
• Coil Material
  Aluminium
Inrush Current
217 A
Network Frequency
60 Hz
Type Of Cooling
Natural convection
Basic IMP Level (BIL)
10 kV
X/R Ratio
0.53
Number Of Mounting Holes
0.51 in (13 mm)
Transformer Losses
50 no load (core loss) 595 load loss (coil loss)
Sound Level
6 dB NEMA ST-20 39 dB
Temperature Rise
150 °C 220 °C insulated
Number Of Tap-Offs
2 2.5 % FCAN 4 2.5 % FCBN
Degree Of Protection
UL type 2 UL type 3R, with 7400WS22M
Electrical Connection
2 Hole Nema Pad primary 0.44 in (11.1 mm) 2 Hole Nema Pad secondary 0.44 in (11.1 mm) 4 Hole Nema Pad sec - XO 0.44 in (11.1 mm)
Mounting Support
Floor Floor, with 7400FMB Ceiling, with 7400CMB17M Wall, with 7400WMB17M
Transformer BTU/HR
227 16.6 % 297 25 % 678 50 % 1313 75 % 2201 100 %
