EXN75T3HBCU Schneider Electric Industrial Automation Components

EXN75T3HBCU on Powermatic Associates
Schneider Electric

Part#:EXN75T3HBCU

Manufacturer:Schneider Electric

Category:Industrial Automation Components

Product Lifecycle:Active

Product description

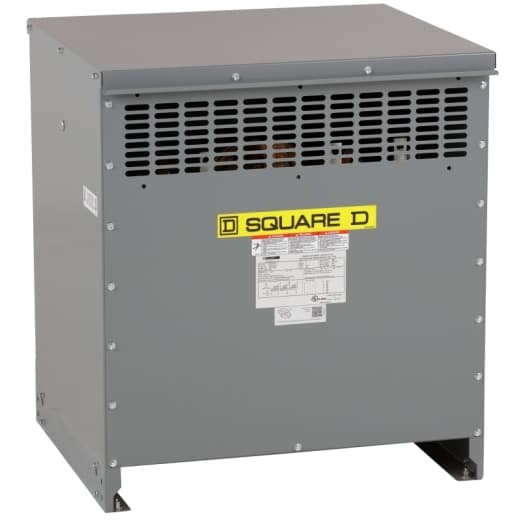

Schneider Electric - EXN75T3HBCU

Product Details

  • Secondary Voltage
    208Y/120 V
  • Device Short Name
    DOE 2016
  • Device Application
    Low voltage electrical distribution
  • Width
    30.08 in (764 mm)
  • Type Of Cooling
    Natural convection
  • Box Number
    20M
  • Product Or Component Type
    DOE 2016 energy efficient transformer
  • %IX
    5.22 %
  • Depth
    27.44 in (697 mm)
  • Number Of Mounting Holes
    0.51 in (13 mm)
  • Rated Operational Power In VA
    75 kVA
  • Primary Voltage
    480 V delta
  • DOE Efficiency
    98.74 % at 35 % load factor , 167 °F (75.0 °C)
  • Inrush Current
    706 A
  • Phase
    3 phase
  • Coil Material
    Copper
  • Transformer Type
    Energy efficient
  • Primary Operational Current
    90.21 A 208.18 A 75 kVA
  • X/R Ratio
    2.03
  • Network Frequency
    60 Hz
  • Basic IMP Level (BIL)
    10 kV
  • Let Through Current
    3.71 kA
  • Net Weight
    690.00 lb(US) (312.98 kg)
  • Range Of Product
    Square D
  • %IZ
    5.61 %
  • Height
    33.50 in (851 mm)
  • Temperature Rise
    80 °C 220 °C insulated
  • Number Of Tap-Offs
    2 2.5 % FCAN 4 2.5 % FCBN
  • Transformer Losses
    142 no load (core loss) 1687 load loss (coil loss)
  • Degree Of Protection
    UL type 2 UL type 3R, with 7400WS18M19M20M
  • Sound Level
    47 dB 6 dB NEMA ST-20
  • Electrical Connection
    4 Hole Nema Pad secondary 0.44 in (11.1 mm) 6 Hole Nema Pad sec - XO 0.44 in (11.1 mm) 4 Hole Nema Pad primary 0.44 in (11.1 mm)
  • Mounting Support
    Floor Floor, with 7400FMB Ceiling, with 7400CMB18M19M20M Wall, with 7400WMB18M19M20M
  • Transformer BTU/HR
    644 16.6 % 844 25 % 1924 50 % 3722 75 % 6241 100 %

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of EXN75T3HBCU on Powermatic Associates is $12,483.00. Order now.
