HGN36000S15ABSOHJ00 Schneider Electric Electronic Components

HGN36000S15ABSOHJ00 on Powermatic Associates
Schneider Electric

Part#:HGN36000S15ABSOHJ00

Manufacturer:Schneider Electric

Category:Electronic Components

Product Lifecycle:Active

Product description

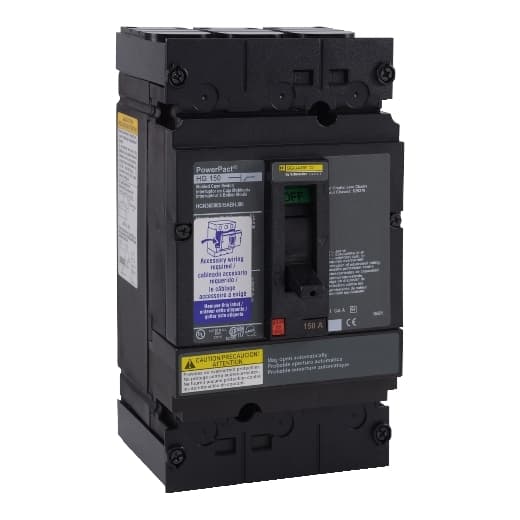

AUTOMATIC MOLDED CASE SWITCH 600V 150A

Product Details

  • Line Rated Current
    150 A
  • Width
    4.12 in (104.65 mm)
  • Poles Description
    3P
  • Magnetic Tripping Current
    2250 A
  • Depth
    4.36 in (110.74 mm)
  • Height
    6.4 in (162.56 mm)
  • Trip Unit Technology
    Magnetic
  • [Ue] Rated Operational Voltage
    600 V AC
  • Product Or Component Type
    Automatic switch
  • Mounting Mode
    Plug-in
  • Range Of Product
    PowerPact H
  • Breaking Capacity Code
    G
  • Electrical Connection
    Plug-in line Plug-in load
  • Accessory / Separate Part Type
    Shunt trip 24 V DC Auxiliary switch 2 NO + 2 NC
  • Short-Circuit Withstand
    65 kA 240 V UL 489 35 kA 480 V UL 489 18 kA 600 V UL 489 20 kA 250 V UL 489

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.

HGN36000S15ABSOHJ00 Related Documents

Product Datasheet-1631041539801.pdf
