Part#:HGN36100

Manufacturer:Schneider Electric

Category:Electronic Components

Product Lifecycle:Active

Product description

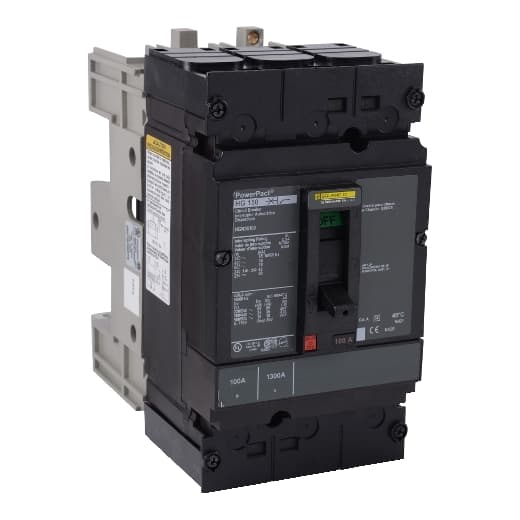

Circuit breaker, PowerPacT H, thermal magnetic, unit mount, 100A, 3 pole, 18 kA, 600 VAC, 80% rated

Product Details

  • Continuous Current Rating
    80 %
  • Line Rated Current
    100 A
  • Depth
    12.08 in (306.83 mm)
  • Product Or Component Type
    Circuit breaker
  • Height
    6.4 in (162.56 mm)
  • Range Of Product
    PowerPact H
  • Width
    4.12 in (104.65 mm)
  • Number Of Poles
    3P
  • Magnetic Tripping Current
    1700 A
  • Breaking Capacity Code
    G
  • Mounting Mode
    Plug-in
  • Magnetic Hold Current
    900 A
  • Electrical Connection
    Plug-in line Plug-in load

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
