HGN36150ABSOHJ00 Schneider Electric Electronic Components

HGN36150ABSOHJ00 on Powermatic Associates
Schneider Electric

Part#:HGN36150ABSOHJ00

Manufacturer:Schneider Electric

Category:Electronic Components

Product Lifecycle:Active

Product description

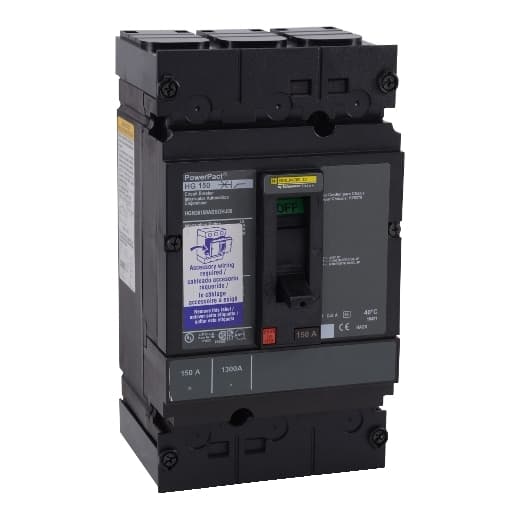

PowerPact H Circuit Breaker,ThermMagn,150A,3P,600V,18kA,Aux Switch,Shunt Trip

Product Details

  • Mounting Mode
    Plug-in
  • Magnetic Hold Current
    900 A
  • Depth
    12.08 in (306.83 mm)
  • Breaking Capacity Code
    G
  • Height
    6.4 in (162.56 mm)
  • Number Of Poles
    3P
  • Line Rated Current
    150 A
  • Range Of Product
    PowerPact H
  • Magnetic Tripping Current
    1700 A
  • Product Or Component Type
    Circuit breaker
  • Width
    4.12 in (104.65 mm)
  • Electrical Connection
    Plug-in line Plug-in load

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.

HGN36150ABSOHJ00 Related Documents

Product Datasheet-1631041482769.pdf
