HLL36015C Schneider Electric Industrial Automation Components

HLL36015C on Powermatic Associates
Schneider Electric

Part#:HLL36015C

Manufacturer:Schneider Electric

Category:Industrial Automation Components

Product Lifecycle:Active

Product description

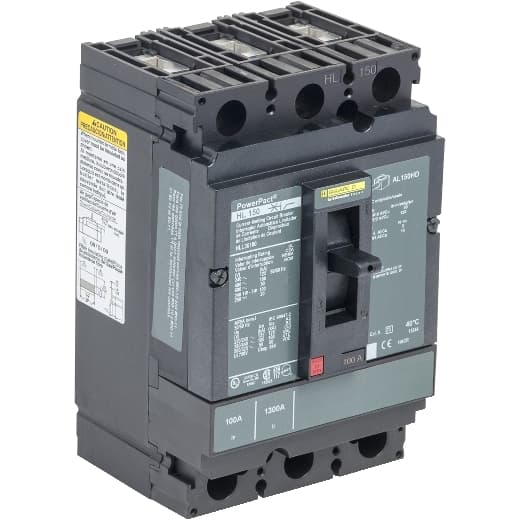

Square D by Schneider Electric HLL36015C is a Moulded Case Circuit Breaker (MCCB) within the PowerPacT HLL sub-range, featuring a PowerPact H-Frame 150 TMD 3P 15A 600Vac/500Vdc 50kA design. It is equipped with lugs on both load and line sides for connection, operates on three poles (3P), and offers thermal protection for overload and magnetic protection for short-circuit scenarios. The rated current is 15A, with a rated insulation voltage (Ui) of 750 V, and it supports a rated voltage (AC) of 600Vac 600Y/347Vac. This unit is designed for individual unit mount on plate, has a net height of 163 mm, a net width of 104 mm, and a net depth of 86 mm. It features an IP40 degree of protection, a toggle (manual) operating mode, and fixed protection settings for over-current at 15A and short-circuit hold and trip currents at 350A and 750A, respectively. The rated operating voltage (Ue) is 690 V, with a rated impulse voltage (Uimp) of 8 kV. The trip current rating is 15 AT, with a frame current rating of 150 AF. Its short circuit breaking rating varies across voltages, including 125kA at 240Vac, 100kA at 480Vac and 480Y/277Vac, 50kA at 600Vac and 600Y/347Vac, 20kA at 250Vdc, and 50kA at 500Vdc, all under UL489. The trip unit type is thermal-magnetic (fixed) without a display, and it falls under utilisation category A.

Product Details

  • Magnetic Tripping Current
    750 A
  • Magnetic Hold Current
    350 A
  • Height
    6.4 in (162.56 mm)
  • Continuous Current Rating
    100 %
  • Line Rated Current
    15 A
  • Number Of Poles
    3P
  • Depth
    4.36 in (110.74 mm)
  • Breaking Capacity Code
    L
  • Tightening Torque
    44.25 lbf.in (5 N.m) 0.00…0.15 in² (2.5…95 mm²) (AWG 14...AWG 3/0)
  • Product Or Component Type
    Circuit breaker
  • Range Of Product
    PowerPact H
  • Width
    4.12 in (104.65 mm)
  • Mounting Mode
    Unit mount
  • Electrical Connection
    Lugs load Lugs line

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of HLL36015C on Powermatic Associates is $3,419.00. Order now.
