Part#:LC1DT60A6MD

Manufacturer:Schneider Electric

Category:Industrial Automation Components

Product Lifecycle:Active

Product description

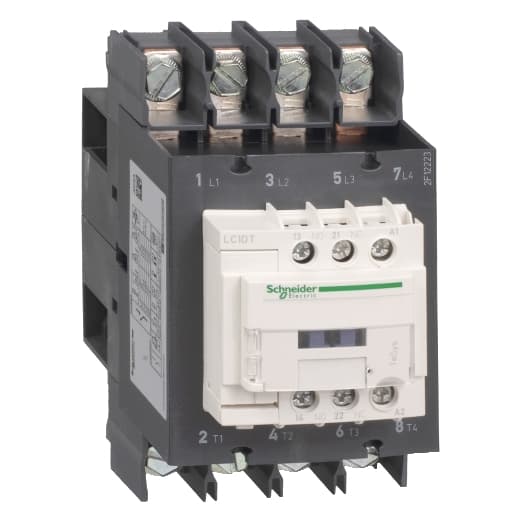

Schneider Electric LC1DT60A6MD is a magnetic contactor from the Deca sub-range, featuring an EverLink(TM) terminal design for ring-lugs connections. This 4-pole (4NO) contactor is designed for a rated current of 60A (AC-1) and can be mounted on a DIN rail. It has a net width of 70 mm and offers a degree of protection of IP20. The control voltage (DC) ranges from 165-275Vdc, with a nominal voltage of 220Vdc, equivalent to 0.75...1.25 times the control voltage (Uc). It includes 1 Normally Open (NO) and 1 Normally Closed (NC) auxiliary contacts, both of the instantaneous type (1NO+1NC). The LC1DT60A6MD is capable of withstanding a rated impulse voltage (Uimp) of 6 kV and has a mechanical durability of 6,000,000 operations at no load. It is rated for a phase-to-phase voltage of up to 690 V AC.

Product Details

  • Product Name
    TeSys D
  • [Ie] Rated Operational Current
    60 A 140 °F (60 °C)) <= 440 V AC AC-1 power circuit
  • Utilisation Category
    AC-1
  • Contactor Application
    Resistive load
  • Signalling Circuit Frequency
    25...400 Hz
  • Product Or Component Type
    Contactor
  • Control Circuit Type
    DC standard
  • Device Short Name
    LC1D
  • [Uc] Control Circuit Voltage
    220 V DC
  • Rated Breaking Capacity
    800 A 440 V power circuit IEC 60947
  • Average Impedance
    1.6 mOhm - Ith 60 A 50 Hz power circuit
  • Range
    TeSys
  • Overvoltage Category
    III
  • Inrush Power In W
    19 W 68 °F (20 °C))
  • Poles Description
    4P
  • Power Pole Contact Composition
    4 NO
  • Auxiliary Contact Composition
    1 NO + 1 NC
  • Electrical Durability
    0.7 Mcycles 60 A AC-1 <= 440 V
  • Hold-In Power Consumption In W
    7.4 W 68 °F (20 °C)
  • Front Cover
    With
  • Time Constant
    34 ms
  • Minimum Switching Current
    5 mA signalling circuit
  • [Uimp] Rated Impulse Withstand Voltage
    6 kV IEC 60947
  • Power Dissipation Per Pole
    5.8 W AC-1
  • Mechanical Durability
    10 Mcycles
  • Insulation Resistance
    > 10 MOhm for signalling circuit
  • Coil Technology
    Built-in bidirectional peak limiting diode suppressor
  • Maximum Operating Rate
    3600 cyc/h 140 °F (60 °C)
  • Minimum Switching Voltage
    17 V signalling circuit
  • Operating Time
    42.5...57.5 ms closing 16...24 ms opening
  • Mounting Support
    Rail Plate
  • Connections - Terminals
    Control circuit lugs-ring terminals 0.31 in (8 mm)) Power circuit lugs-ring terminals 0.65 in (16.5 mm))
  • [Ue] Rated Operational Voltage
    Power circuit <= 690 V AC 25...400 Hz Power circuit <= 300 V DC
  • [Ith] Conventional Free Air Thermal Current
    10 A 140 °F (60 °C) signalling circuit 60 A 140 °F (60 °C) power circuit
  • Safety Reliability Level
    B10d = 1369863 cycles contactor with nominal load EN/ISO 13849-1 B10d = 20000000 cycles contactor with mechanical load EN/ISO 13849-1
  • Non-Overlap Time
    1.5 ms on de-energisation between NC and NO contact 1.5 ms on energisation between NC and NO contact
  • Auxiliary Contacts Type
    Mechanically linked 1 NO + 1 NC IEC 60947-5-1 Mirror contact 1 NC IEC 60947-4-1
  • Associated Fuse Rating
    10 A gG signalling circuit IEC 60947-5-1 80 A gG <= 690 V type 1 power circuit 80 A gG <= 690 V type 2 power circuit
  • Tightening Torque
    Control circuit 15.05 lbf.in (1.7 N.m) lugs-ring terminals flat Ø 6 mm M3.5 Control circuit 15.05 lbf.in (1.7 N.m) lugs-ring terminals Philips No 2 M3.5 Power circuit 53.10 lbf.in (6 N.m) lugs-ring terminals M6
  • Irms Rated Making Capacity
    140 A AC signalling circuit IEC 60947-5-1 250 A DC signalling circuit IEC 60947-5-1 800 A 440 V power circuit IEC 60947
  • Control Circuit Voltage Limits
    0.1...0.3 Uc -40…158 °F (-40…70 °C) drop-out DC 0.75...1.25 Uc -40…140 °F (-40…60 °C) operational DC 1...1.25 Uc 140…158 °F (60…70 °C) operational DC
  • Standards
    CSA C22.2 No 14 EN 60947-4-1 EN 60947-5-1 IEC 60947-4-1 IEC 60947-5-1 UL 508
  • [Icw] Rated Short-Time Withstand Current
    320 A 104 °F (40 °C) - 10 s power circuit 720 A 104 °F (40 °C) - 1 s power circuit 72 A 104 °F (40 °C) - 10 min power circuit 165 A 104 °F (40 °C) - 1 min power circuit 100 A - 1 s signalling circuit 120 A - 500 ms signalling circ
  • [Ui] Rated Insulation Voltage
    Power circuit 600 V CSA Power circuit 600 V UL Signalling circuit 690 V IEC 60947-1 Signalling circuit 600 V CSA Signalling circuit 600 V UL Power circuit 690 V IEC 60947-4-1
  • Product Certifications
    GOST DNV CSA LROS (Lloyds register of shipping) BV GL UL CCC RINA

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
