Part#:LDL34600WU31X

Manufacturer:Schneider Electric

Category:Industrial Automation Components

Product Lifecycle:Active

Product description

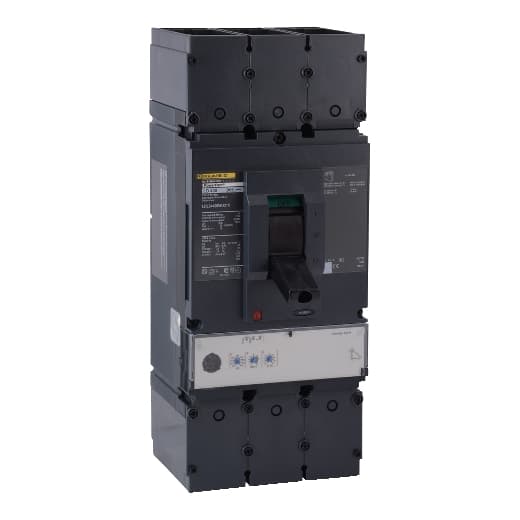

Square D by Schneider Electric LDL34600WU31X is a Moulded Case Circuit Breaker (MCCB) from the PowerPacT LDL sub-range, designed with a PowerPact L-Frame 600 Micrologic 3.3-W (LI) 3P 600A configuration. It operates at a rated current of 600A, with a rated insulation voltage (Ui) of 750 V, and supports AC voltages up to 480Vac 480Y/277Vac. This unit is equipped with lugs on both load and line sides for connection, features three poles (3P), and offers protection functions including Long-time (L) and Instantaneous (I) protection. The breaker is designed for individual unit mount on plate, has a net height of 382 mm, width of 153 mm, and depth of 171 mm. It provides a degree of protection of IP40 and operates manually via a toggle. Protection settings are adjustable for overload (0.3...1 x In or 50A...150A) and short-circuit (1.5...11 x In or 900A...6600A) conditions. The rated operating voltage (Ue) is 690 V, with a rated impulse voltage (Uimp) of 8 kV. The trip current rating is 600 AT, with a frame current rating of 600 AF. It has a short circuit breaking rating of 25kA at 240Vac, 18kA at 480Vac, and 14kA at 600Vac, all under UL489. The trip unit type is an electronic Micrologic Standard 3.3-W (LI) with no display, and it falls under utilisation category A.

Product Details

  • Number Of Poles
    3P
  • Terminal Identifier
    AL600LS52K3
  • Tightening Torque
    442.54 lbf.in (50 N.m) 0.11…0.37 in² (70…240 mm²) (AWG 2/0...500 kcmil)
  • Depth
    6.61 in (167.89 mm)
  • Product Or Component Type
    Circuit breaker
  • Width
    5.5 in (139.70 mm)
  • Continuous Current Rating
    80 %
  • Breaking Capacity Code
    D
  • Height
    11.3 in (287.02 mm)
  • Electrical Connection
    Lugs load Lugs line

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
