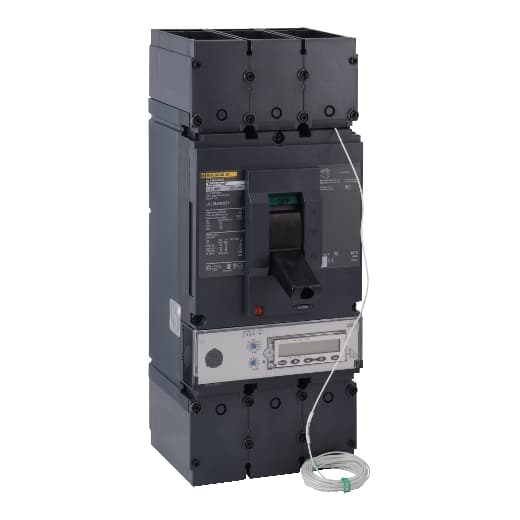

LDL36400U53X Schneider Electric Industrial Automation Components

LDL36400U53X on Powermatic Associates
Schneider Electric

Part#:LDL36400U53X

Manufacturer:Schneider Electric

Category:Industrial Automation Components

Product Lifecycle:Active

Product description

Schneider Electric - LDL36400U53X

Product Details

  • Product Or Component Type
    Circuit breaker
  • Terminal Identifier
    AL600LS52K3
  • Depth
    6.61 in (167.89 mm)
  • Tightening Torque
    442.54 lbf.in (50 N.m) 0.11…0.37 in² (70…240 mm²) (AWG 2/0...500 kcmil)
  • Number Of Poles
    3P
  • Width
    5.5 in (139.70 mm)
  • Continuous Current Rating
    80 %
  • Height
    11.3 in (287.02 mm)
  • Breaking Capacity Code
    D
  • Electrical Connection
    Lugs load Lugs line

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.

LDL36400U53X Related Documents

Product Datasheet-1631038672388.pdfInstruction Sheet-1631038672394.pdf
