LDL34400WU53X Schneider Electric Electronic Components

LDL34400WU53X on Powermatic Associates
Schneider Electric

Part#:LDL34400WU53X

Manufacturer:Schneider Electric

Category:Electronic Components

Product Lifecycle:Active

Product description

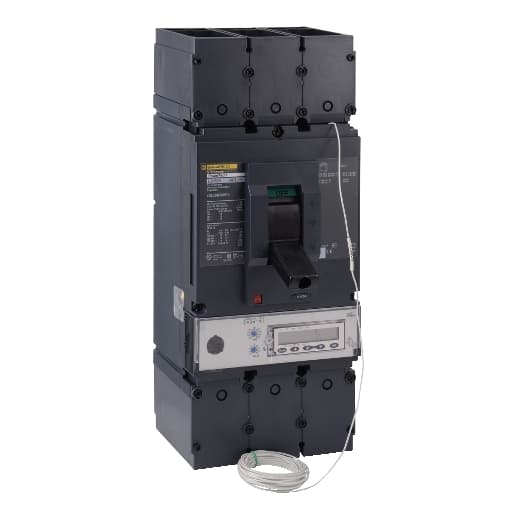

PowerPact L Circuit Breaker,Micrologic5.3E,400A,3P,480V,18kA

Product Details

  • Continuous Current Rating
    80 %
  • Number Of Poles
    3P
  • Height
    11.3 in (287.02 mm)
  • Width
    5.5 in (139.70 mm)
  • Terminal Identifier
    AL600LS52K3
  • Product Or Component Type
    Circuit breaker
  • Breaking Capacity Code
    D
  • Tightening Torque
    442.54 lbf.in (50 N.m) 0.11…0.37 in² (70…240 mm²) (AWG 2/0...500 kcmil)
  • Depth
    6.61 in (167.89 mm)
  • Electrical Connection
    Lugs load Lugs line

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.

LDL34400WU53X Related Documents

Product Datasheet-1631038157866.pdf
