Part#:LDL36400CU54X

Manufacturer:Schneider Electric

Category:Electronic Components

Product Lifecycle:Active

Product description

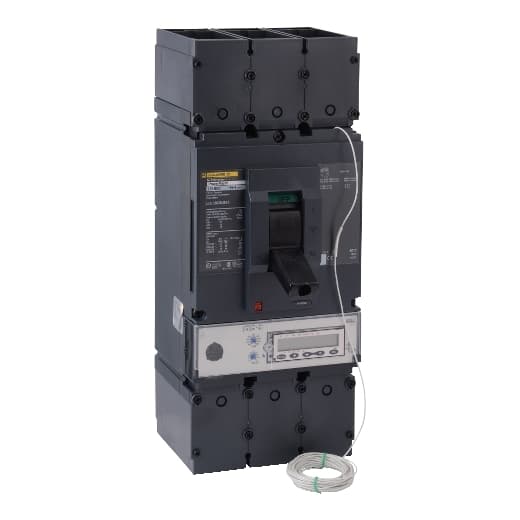

PowerPact L Circuit Breaker,Micrologic6.3E,400A,3P,600V,14kA

Product Details

  • Tightening Torque
    442.54 lbf.in (50 N.m) 0.11…0.37 in² (70…240 mm²) (AWG 2/0...500 kcmil)
  • Mounting Mode
    Unit mount
  • Trip Unit Type
    Electronic, energy, Micrologic 6.3 E, LSIG
  • Interrupt Code
    D
  • Terminal Type
    AL600LS52K3
  • Continuous Current Rating
    100 %
  • Depth
    6.61 in (167.89 mm)
  • Number Of Poles
    3P
  • Wire Size
    AWG 2/0...500 kcmil aluminium/copper)2
  • Voltage Rating
    600 V AC
  • Width
    5.5 in (139.70 mm)
  • Product Or Component Type
    Circuit breaker
  • Range Of Product
    PowerPact L
  • Protection Technology
    Current limiter
  • Line Rated Current
    400 A
  • Height
    11.3 in (287.02 mm)
  • Electrical Connection
    Lugs load Lugs line
  • Interrupt Rating
    25 kA 240 V AC 18 kA 480 V AC 14 kA 600 V AC

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
