LDL36400CU31X Schneider Electric Industrial Automation Components

LDL36400CU31X on Powermatic Associates
Schneider Electric

Part#:LDL36400CU31X

Manufacturer:Schneider Electric

Category:Industrial Automation Components

Product Lifecycle:Active

Product description

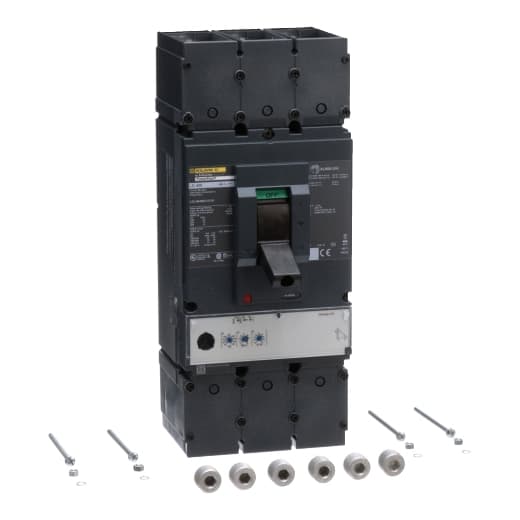

Square D by Schneider Electric LDL36400CU31X is a Moulded Case Circuit Breaker (MCCB) within the PowerPacT LDL sub-range, featuring a PowerPact L-Frame 600 Micrologic 3.3 (LI) design. It is a 3-pole (3P) device with a rated current of 400A and offers both long-time (L) and instantaneous (I) protection functions. The breaker is designed for individual unit mount on plate, with lugs on both load and line sides for connection. It has a rated insulation voltage (Ui) of 750 V, a rated voltage (AC) of 600Vac, and a rated voltage (DC) of 250Vdc. The net dimensions are 382 mm in height, 153 mm in width, and 171 mm in depth, with a degree of protection of IP40. The operating mode is manual toggle, and it features adjustable protection settings for overload (0.3...1 x In, 125A...400A) and short-circuit (1.5...12 x In, 600A...4800A). The rated operating voltage (Ue) is 690 V, with a rated impulse voltage (Uimp) of 8 kV. The trip current rating is 400 AT, with a frame current rating of 600 AF, and a short circuit breaking rating of 25kA at 240Vac, 18kA at 480Vac, and 14kA at 600Vac, all according to UL489 standards. The trip unit type is an electronic Micrologic Standard 3.3 (LI) with no display, and it falls under utilisation category A.

Product Details

  • Breaking Capacity Code
    D
  • Continuous Current Rating
    100 %
  • Terminal Identifier
    AL600LS52K3
  • Product Or Component Type
    Circuit breaker
  • Tightening Torque
    442.54 lbf.in (50 N.m) 0.11…0.37 in² (70…240 mm²) (AWG 2/0...500 kcmil)
  • Number Of Poles
    3P
  • Depth
    6.61 in (167.89 mm)
  • Width
    5.5 in (139.70 mm)
  • Height
    11.3 in (287.02 mm)
  • Electrical Connection
    Lugs load Lugs line

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of LDL36400CU31X on Powermatic Associates is $5,648.00. Order now.

LDL36400CU31X Related Documents

Instruction Sheet-1631037780330.pdfProduct Datasheet-1631037780332.pdf
