PJL36100U44A Schneider Electric Industrial Automation Components

PJL36100U44A on Powermatic Associates
Schneider Electric

Part#:PJL36100U44A

Manufacturer:Schneider Electric

Category:Industrial Automation Components

Product Lifecycle:Active

Product description

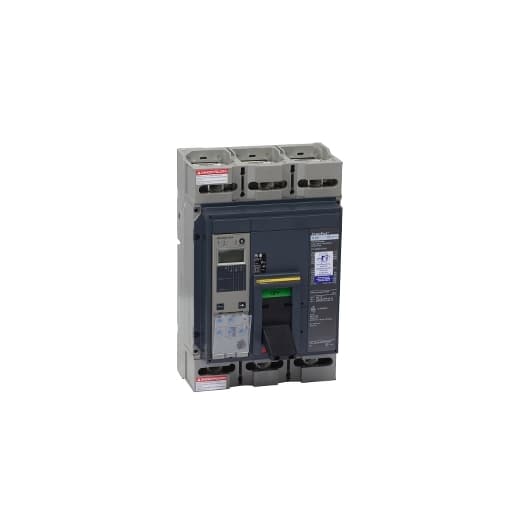

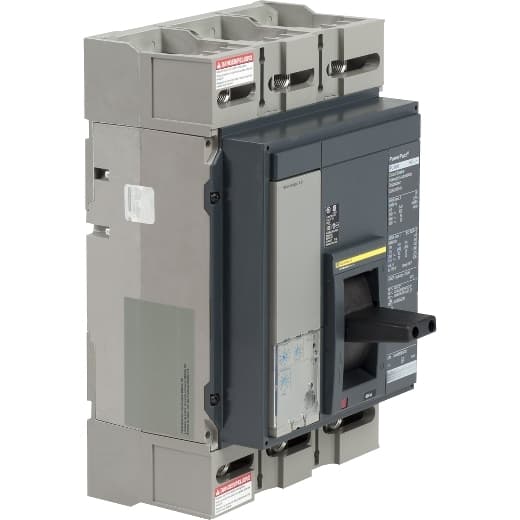

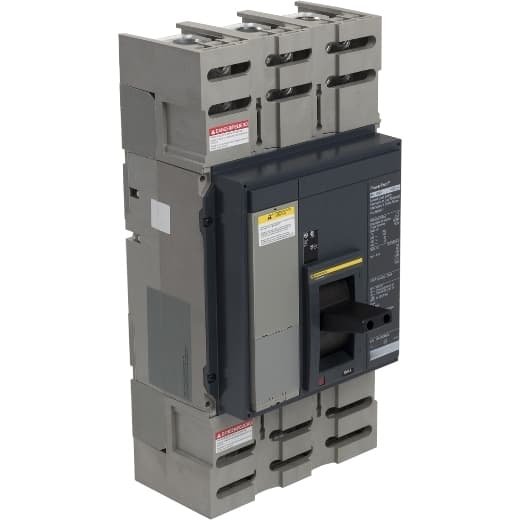

Square D by Schneider Electric PJL36100U44A is a molded case circuit breaker (MCCB) designed for mounting on a plate. This standard model, part of the PowerPact PJL sub-range, features a rated current of 1200A and operates with a connection type of lugs on both the load and line sides. It is a 3-pole device, ensuring protection across three poles with a rated voltage of 600V AC. The breaker is equipped with an ET1.01 (LI) electronic trip unit, providing long-time (L) and instantaneous (I) protection functions. It has a trip and frame current rating of 1200 AT and 1200 AF, respectively. The short circuit breaking rating varies with voltage: 100kA at 240Vac, 65kA at both 480Y/277Vac and 480Vac, and 25kA at both 600Y/347Vac and 600Vac.

Product Details

  • Depth
    8.05 in (204.47 mm)
  • Line Rated Current
    1000 A
  • Height
    16.16 in (410.46 mm)
  • Device Short Name
    A
  • Product Or Component Type
    Circuit breaker
  • Breaking Capacity Code
    J
  • Continuous Current Rating
    80 %
  • Number Of Poles
    3P
  • Width
    8.27 in (210.06 mm)
  • Electrical Connection
    Lugs load Lugs line
  • Tightening Torque
    442.54 lbf.in (50 N.m) 0.15…0.37 in² (95…240 mm²) (AWG 3/0...500 kcmil) 8.85…11.51 lbf.in (1.0…1.3 N.m)

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of PJL36100U44A on Powermatic Associates is $25,256.00. Order now.
