QOM60VHL Schneider Electric Electronic Components

Name: QOM60VHL
Brand: Schneider Electric

Part#:QOM60VHL

Manufacturer:Schneider Electric

Category:Electronic Components

Product Lifecycle:Active

Product description

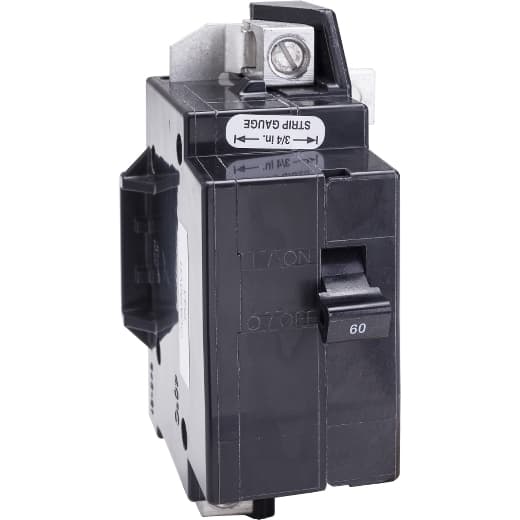

Square D by Schneider Electric QOM60VHL is a Miniature Circuit Breaker (MCB) designed for primary or main circuit protection. It features a bolt-on mounting mode and a bolt-on connection type, ensuring secure installation. This MCB is rated for a current of 60A and can accommodate a wire cross-section of 12-2/0AWG (1 cable Al/Cu), making it suitable for a variety of wiring configurations. It operates on a rated voltage of 120V to 240V AC and is equipped with 2 poles. The QOM60VHL has a short circuit breaking rating of 22kA at 240Vac and utilizes lugs as its type of terminals, facilitating straightforward wire connections.

Product Details

Ratings
Primary main breaker
Load Center Type
Main breaker
Voltage Rating
120/240 V AC
Interrupt Rating
22 kA 120/240 V AC 50/60 Hz
Circuit Breaker Type
Standard
For Use With
QO load center
Product
Circuit breaker
Tightening Torque
53.10 lbf.in (6 N.m) 0.01…0.10 in² (4…65 mm²) (AWG 12...AWG 2/0)
Range
QO
Number Of Poles
2P
Current Rating
60 A
Number Of Phases
1 phase
Electrical Connection
Lugs
Frame Size
QOM1
Wire Size
AWG 12...AWG 2/0 copper or aluminium
Mounting Type
Bolt-on

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
