RE17RLMU Schneider Electric Industrial Automation Components

RE17RLMU on Powermatic Associates
Schneider Electric

Part#:RE17RLMU

Manufacturer:Schneider Electric

Category:Industrial Automation Components

Product Lifecycle:Active

Product description

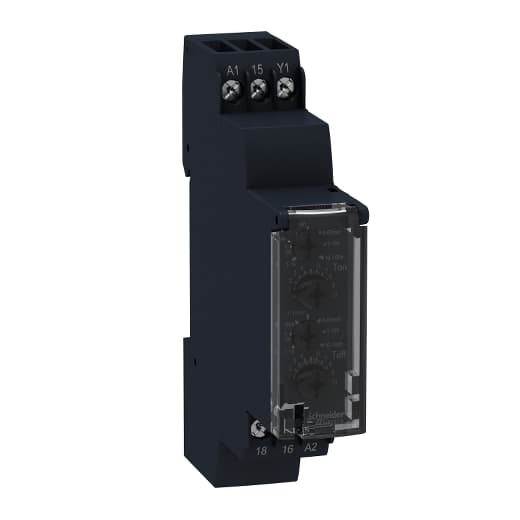

Schneider Electric RE17RLMU is an analog timer featuring modular design at 18mm / 1module with dual function capabilities including Asymmetrical flashing relay (starting pulse-off) and Asymmetrical flashing relay (starting pulse-on) with pause/summation control signal. It offers a selector switch on the front panel for control type selection, a reset time of 120ms on de-energisation, control signal pulse widths of 100ms (with load in parallel) and 30ms, and a power-on delay of 100ms. The operating frequency is set at 10Hz. Designed for DIN rail mounting, it has a rated current of 8 A and falls under the RE17R sub-range. The degree of protection is IP40 for the housing, IP20 for the terminal block, and IP50 for the front panel. The contacts are cadmium-free, and the housing material is self-extinguishing. Power consumption is 0.6 W at 24Vdc. It features SPDT (Single Pole Double Throw) - 1C/O contacts, a rated impulse voltage (Uimp) of 5 kV, and a supply voltage range of 24-240 V AC and 24 V DC (with a minimum of 20.4 V). The display includes an LED indicator that remains steady when the relay is energised and without timing in progress, and flashes during timing (80% ON and 20% OFF). Electrical durability is rated at 100,000 operations for 250Vac resistive load and 10,000,000 operations overall. Time delay options range from 0.1s to 100h (0.1 to 360,000 s). The timer operates within a temperature range of -20°C to +60°C.

Product Details

  • Time Delay Range
    1...10 h 1...10 s 0.1...1 s 6...60 min 1...10 min 10...100 h 6...60 s
  • Connections - Terminals
    Screw terminals, 1 x 0.5...1 x 3.3 mm² AWG 20...AWG 12) solid without cable end Screw terminals, 2 x 0.5...2 x 2.5 mm² AWG 20...AWG 14) solid without cable end Screw terminals, 1 x 0.2...1 x 2.5 mm² AWG 24...AWG 14) flexible with cable end
  • Local Signalling
    LED indicator on steady: relay energised, no timing in progress LED indicator 80 % ON and 20 % OFF flashing: timing in progress
  • Control Signal Pulse Width
    100 ms with load in parallel typical 30 ms typical
  • [Us] Rated Supply Voltage
    24...240 V AC 50/60 Hz 24 V DC
  • Safety Reliability Data
    MTTFd = 296.8 years B10d = 270000
  • Power On Delay
    100 ms
  • Functionality
    Asymmetrical flashing timer
  • Creepage Distance
    4 kV/3 IEC 60664-1
  • Time Delay Type
    L, Li
  • Mounting Support
    35 mm DIN rail conforming to EN/IEC 60715
  • Mounting Position
    Any position in relation to normal vertical mounting plane
  • [Uimp] Rated Impulse Withstand Voltage
    5 kV 1.2/50 µs
  • Maximum Power Consumption In W
    0.6 W 24 V DC
  • Compatibility Code
    RE17
  • Net Weight
    0.15 lb(US) (0.07 kg)
  • Dielectric Strength
    2.5 kV 1 mA/1 minute 50 Hz IEC 61812-1
  • Marking
    CE
  • Mechanical Durability
    10000000 cycles
  • Electrical Durability
    100000 cycles resistive 8 A 250 V AC
  • Operating Frequency
    10 Hz
  • Breaking Capacity
    2000 VA
  • Minimum Switching Current
    10 mA 5 V DC
  • Maximum Switching Voltage
    250 V AC
  • Maximum Switching Current
    8 A AC/DC
  • Power Consumption In VA
    0…32 VA 240 V AC
  • On-Load Factor
    100 %
  • Temperature Drift
    +/- 0.05 %/°C
  • Voltage Drift
    +/- 0.2 %/V
  • Insulation Resistance
    100 MOhm 500 V DC IEC 60664-1
  • Reset Time
    120 ms on de-energisation typical
  • Setting Accuracy Of Time Delay
    +/- 10 % of full scale 25 °C IEC 61812-1
  • Repeat Accuracy
    +/- 0.5 % IEC 61812-1
  • Tightening Torque
    5.31…8.85 lbf.in (0.6…1 N.m) IEC 60947-1
  • Housing Material
    Self-extinguishing
  • Supply Frequency
    50...60 Hz +/- 5 %
  • Release Of Input Voltage
    10 V
  • Voltage Range
    0.85...1.1 Us
  • Control Type
    Selector switch front panel
  • Height
    3.54 in (90 mm)
  • Depth
    2.83 in (72 mm)
  • Contacts Material
    Cadmium free
  • Contacts Type And Composition
    1 C/O
  • Discrete Output Type
    Relay
  • Nominal Output Current
    8 A
  • Device Short Name
    RE17R
  • Width
    0.69 in (17.5 mm)
  • Range Of Product
    Harmony Timer Relays
  • Product Or Component Type
    Dual function relay

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of RE17RLMU on Powermatic Associates is $53.00. Order now.
