Part#:RE17LMBM

Manufacturer:Schneider Electric

Category:Industrial Automation Components

Product Lifecycle:Active

Product description

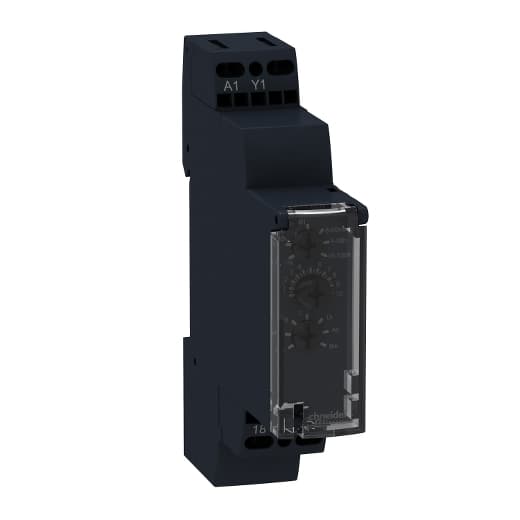

Schneider Electric RE17LMBM is an analog timer designed for DIN rail mounting, featuring a modular design at 18mm / 1module. It offers a versatile range of functions including A, Ac, At, B, Bw, C, D, Di, H, and Ht. The timer operates with a rated current of 0.7 A and falls under the RE17L sub-range. It provides a degree of protection rated at IP40 for the housing, IP20 for the terminal block, and IP50 for the front panel. Constructed from self-extinguishing material, the RE17LMBM has a power consumption of 3 VA at 240Vac and includes 1 x solid state output contact type. It can withstand a rated impulse voltage of 5 kV and accepts a supply voltage ranging from 24-240 V AC, with a minimum of 20.4 V. This timer is designed for electrical durability with load up to 100,000,000 operations and offers a time delay range from 0.1s to 100h or 0.1 to 360,000 s. It operates within a temperature range of -20°C to +60°C.

Product Details

  • [Uimp] Rated Impulse Withstand Voltage
    5 kV 1.2/50 µs
  • Maximum Power Consumption In W
    1.5 W 240 V DC
  • Creepage Distance
    4 kV/3 IEC 60664-1
  • Compatibility Code
    RE17
  • Nominal Output Current
    0.7 A
  • [Us] Rated Supply Voltage
    24...240 V AC 50/60 Hz
  • Repeat Accuracy
    +/- 0.5 % IEC 61812-1
  • Maximum Output Current
    20 A
  • Width
    0.69 in (17.5 mm)
  • On-Load Factor
    100 %
  • Tightening Torque
    5.31…8.85 lbf.in (0.6…1 N.m) IEC 60947-1
  • Power Consumption In VA
    0…3 VA 240 V AC
  • Electrical Durability
    100000000 cycles
  • Time Delay Type
    A, Ac, At, B, Bw, C, D, Di, H, Ht
  • Discrete Output Type
    Solid state
  • Voltage Range
    0.85...1.1 Us
  • Voltage Drift
    +/- 0.2 %/V
  • Operating Frequency
    10 Hz
  • Marking
    CE
  • Product Or Component Type
    Multifunction relay
  • Supply Frequency
    50...60 Hz +/- 5 %
  • Dielectric Strength
    2.5 kV 1 mA/1 minute 50 Hz IEC 61812-1
  • Minimum Switching Current
    10 mA
  • Net Weight
    0.15 lb(US) (0.068 kg)
  • Range Of Product
    Harmony Timer Relays
  • Insulation Resistance
    100 MOhm 500 V DC IEC 60664-1
  • Temperature Drift
    +/- 0.05 %/°C
  • Power On Delay
    100 ms
  • Reset Time
    350 ms on de-energisation typical
  • Mounting Position
    Any position in relation to normal vertical mounting plane
  • Mounting Support
    35 mm DIN rail conforming to EN/IEC 60715
  • Control Type
    Selector switch front panel
  • Release Of Input Voltage
    8 V
  • Housing Material
    Self-extinguishing
  • Maximum Switching Voltage
    250 V AC
  • Component Name
    RE17L
  • Control Signal Pulse Width
    0.05 s typical
  • Setting Accuracy Of Time Delay
    +/- 10 % of full scale 25 °C IEC 61812-1
  • Maximum Leakage Current
    5 mA
  • Functionality
    Multifunction
  • Breaking Capacity
    0.5 A AC UL 0.7 A AC 68 °F (20 °C)
  • Safety Reliability Data
    MTTFd = 353.8 years B10d = 320000
  • Maximum Voltage Drop
    <4 V 3-wire <8 V 2-wire
  • Connections - Terminals
    Screw terminals, 1 x 0.5...1 x 3.3 mm² AWG 20...AWG 12) solid without cable end Screw terminals, 2 x 0.5...2 x 2.5 mm² AWG 20...AWG 14) solid without cable end Screw terminals, 1 x 0.2...1 x 2.5 mm² AWG 24...AWG 14) flexible with cable end
  • Time Delay Range
    1...10 s 6...60 s 6...60 min 1...10 h 10...100 h 1...10 min 0.1...1 s

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of RE17LMBM on Powermatic Associates is $62.00. Order now.
