Part#:RE17LLBM

Manufacturer:Schneider Electric

Category:Industrial Automation Components

Product Lifecycle:Active

Product description

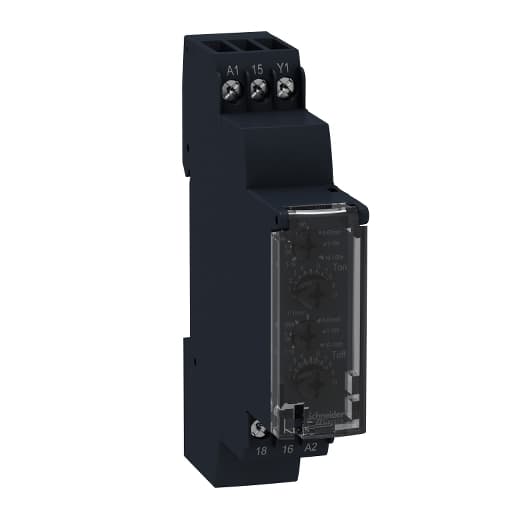

Schneider Electric RE17LLBM is an analog timer designed for DIN rail mounting, featuring a modular design at 18mm / 1module. It offers dual function capabilities including Asymmetrical flashing relay (starting pulse-off) and Asymmetrical flashing relay (starting pulse-on) with pause/summation control signal. The timer has a rated current of 0.7 A and falls under the RE17L sub-range. It provides a degree of protection with IP40 for the housing, IP20 for the terminal block, and IP50 for the front panel. The housing material is self-extinguishing, ensuring durability. With a power consumption of 3 VA at 240Vac, it includes 1 x solid state output for contacts type. The rated impulse voltage stands at 5 kV, and it supports a supply voltage range of 24-240 V AC, with a minimum of 20.4 V. It boasts an electrical durability of 100,000,000 operations and offers a time delay range from 0.1s to 100h (0.1 to 360,000 s). The timer operates within a temperature range of -20°C to +60°C.

Product Details

  • Time Delay Range
    6...60 s 6...60 min 1...10 min 0.1...1 s 1...10 h 10...100 h 1...10 s
  • Connections - Terminals
    Screw terminals, 1 x 0.5...1 x 3.3 mm² AWG 20...AWG 12) solid without cable end Screw terminals, 2 x 0.5...2 x 2.5 mm² AWG 20...AWG 14) solid without cable end Screw terminals, 1 x 0.2...1 x 2.5 mm² AWG 24...AWG 14) flexible with cable end
  • Maximum Voltage Drop
    <4 V 3-wire <8 V 2-wire
  • Breaking Capacity
    0.5 A AC UL 0.7 A AC 68 °F (20 °C)
  • Safety Reliability Data
    B10d = 320000 MTTFd = 353.8 years
  • Mounting Support
    35 mm DIN rail conforming to EN/IEC 60715
  • Compatibility Code
    RE17
  • Creepage Distance
    4 kV/3 IEC 60664-1
  • Net Weight
    0.15 lb(US) (0.068 kg)
  • Functionality
    Asymmetrical flashing timer
  • Mounting Position
    Any position in relation to normal vertical mounting plane
  • Electrical Durability
    100000000 cycles
  • Marking
    CE
  • Maximum Switching Voltage
    250 V AC
  • Maximum Leakage Current
    5 mA
  • Minimum Switching Current
    10 mA
  • Operating Frequency
    10 Hz
  • Maximum Output Current
    20 A
  • Power Consumption In VA
    0…3 VA 240 V AC
  • Nominal Output Current
    0.7 A
  • On-Load Factor
    100 %
  • Reset Time
    350 ms on de-energisation typical
  • Setting Accuracy Of Time Delay
    +/- 10 % of full scale 25 °C IEC 61812-1
  • Voltage Drift
    +/- 0.2 %/V
  • Temperature Drift
    +/- 0.05 %/°C
  • Dielectric Strength
    2.5 kV 1 mA/1 minute 50 Hz IEC 61812-1
  • Repeat Accuracy
    +/- 0.5 % IEC 61812-1
  • Housing Material
    Self-extinguishing
  • Tightening Torque
    5.31…8.85 lbf.in (0.6…1 N.m) IEC 60947-1
  • [Uimp] Rated Impulse Withstand Voltage
    5 kV 1.2/50 µs
  • Insulation Resistance
    100 MOhm 500 V DC IEC 60664-1
  • Power On Delay
    100 ms
  • Release Of Input Voltage
    7 V
  • Supply Frequency
    50...60 Hz +/- 5 %
  • Component Name
    RE17L
  • Width
    0.69 in (17.5 mm)
  • Control Type
    Selector switch front panel
  • Voltage Range
    0.85...1.1 Us
  • Time Delay Type
    L, Li
  • Product Or Component Type
    Dual function relay
  • [Us] Rated Supply Voltage
    24...240 V AC 50/60 Hz
  • Discrete Output Type
    Solid state
  • Control Signal Pulse Width
    0.05 s typical
  • Range Of Product
    Harmony Timer Relays

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of RE17LLBM on Powermatic Associates is $75.00. Order now.
