Part#:RE17RMMW

Manufacturer:Schneider Electric

Category:Industrial Automation Components

Product Lifecycle:Active

Product description

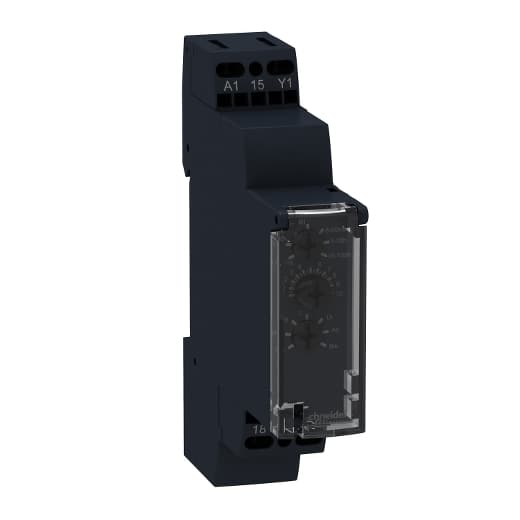

Schneider Electric RE17RMMW is an analog timer designed for modular installation on a DIN rail, featuring a width of 18mm for a single module. This multi-function timer supports various control types, including A, Ac, At, B, Bw, C, D, Di, H, and Ht, with a selector switch on the front panel for easy operation. It offers a reset time of 120ms typically upon de-energisation, with control signal pulse widths of 100ms (with load in parallel typical) and 30ms (typical). The device has a power-on delay of 100ms and operates at a frequency of 10Hz. It is rated for a current of 8 A and falls under the RE17R sub-range. The timer provides a degree of protection of IP40 for the housing, IP20 for the terminal block, and IP50 for the front panel. It is constructed with cadmium-free contacts and a self-extinguishing housing material. The power consumption at 240Vdc is 1.5 W, and it features SPDT (Single Pole Double Throw) - 1C/O contacts with a rated impulse voltage (Uimp) of 5 kV. The supply voltage ranges from 12-240 V AC/DC, with a minimum of 20.4 V. Its display includes an LED indicator that shows the operational status: steady for relay energised without timing, flashing during timing, and pulsing when the relay is de-energised without timing in progress, except for functions Di-D; Li-L. The electrical durability is rated at 100,000 operations for a 250Vac resistive load and 10,000,000 operations overall. The timer's time delay range is 0.1s to 100h or 0.1 to 360,000 seconds, and it can operate within a temperature range of -20°C to +60°C.

Product Details

  • Tightening Torque
    5.31…8.85 lbf.in (0.6…1 N.m) IEC 60947-1
  • Insulation Resistance
    100 MOhm 500 V DC IEC 60664-1
  • Mechanical Durability
    10000000 cycles
  • Compatibility Code
    RE17
  • Width
    0.69 in (17.5 mm)
  • Height
    3.54 in (90 mm)
  • Maximum Switching Current
    8 A AC/DC
  • Control Type
    Selector switch front panel
  • Reset Time
    120 ms on de-energisation typical
  • Voltage Drift
    +/- 0.2 %/V
  • Contacts Type And Composition
    1 C/O
  • Supply Frequency
    50...60 Hz +/- 5 %
  • Minimum Switching Current
    10 mA 5 V DC
  • Range Of Product
    Harmony Timer Relays
  • Maximum Switching Voltage
    250 V AC
  • Mounting Support
    35 mm DIN rail conforming to EN/IEC 60715
  • Device Short Name
    RE17R
  • Release Of Input Voltage
    5 V
  • Power Consumption In VA
    0…3 VA 240 V AC
  • Creepage Distance
    4 kV/3 IEC 60664-1
  • Functionality
    Multifunction
  • Product Or Component Type
    Multifunction relay
  • Contacts Material
    Cadmium free
  • Housing Material
    Self-extinguishing
  • Dielectric Strength
    2.5 kV 1 mA/1 minute 50 Hz IEC 61812-1
  • [Uimp] Rated Impulse Withstand Voltage
    5 kV 1.2/50 µs
  • Time Delay Type
    A, Ac, At, B, Bw, C, D, Di, H, Ht
  • Voltage Range
    0.85...1.1 Us
  • Maximum Power Consumption In W
    1.5 W 240 V DC
  • On-Load Factor
    100 %
  • Depth
    2.83 in (72 mm)
  • Repeat Accuracy
    +/- 0.5 % IEC 61812-1
  • Discrete Output Type
    Relay
  • Setting Accuracy Of Time Delay
    +/- 10 % of full scale 25 °C IEC 61812-1
  • Breaking Capacity
    2000 VA
  • Operating Frequency
    10 Hz
  • Mounting Position
    Any position in relation to normal vertical mounting plane
  • Electrical Durability
    100000 cycles resistive 8 A 250 V AC
  • Net Weight
    0.15 lb(US) (0.07 kg)
  • Nominal Output Current
    8 A
  • [Us] Rated Supply Voltage
    12...240 V AC/DC 50/60 Hz
  • Marking
    CE
  • Temperature Drift
    +/- 0.05 %/°C
  • Power On Delay
    100 ms
  • Control Signal Pulse Width
    100 ms with load in parallel typical 30 ms typical
  • Safety Reliability Data
    MTTFd = 296.8 years B10d = 270000
  • Local Signalling
    LED indicator on steady: relay energised, no timing in progress LED indicator 80 % ON and 20 % OFF flashing: timing in progress LED indicator 5 % ON and 95 % OFF pulsing: relay de-energised, no timing in progress (except function Di-D, Li-L)
  • Connections - Terminals
    Screw terminals, 1 x 0.5...1 x 3.3 mm² AWG 20...AWG 12) solid without cable end Screw terminals, 2 x 0.5...2 x 2.5 mm² AWG 20...AWG 14) solid without cable end Screw terminals, 1 x 0.2...1 x 2.5 mm² AWG 24...AWG 14) flexible with cable end
  • Time Delay Range
    1...10 h 0.1...1 s 6...60 s 10...100 h 6...60 min 1...10 s 1...10 min

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of RE17RMMW on Powermatic Associates is $75.00. Order now.
