RE22R1MYMR Schneider Electric Industrial Automation Components

RE22R1MYMR on Powermatic Associates
Schneider Electric

Part#:RE22R1MYMR

Manufacturer:Schneider Electric

Category:Industrial Automation Components

Product Lifecycle:Active

Product description

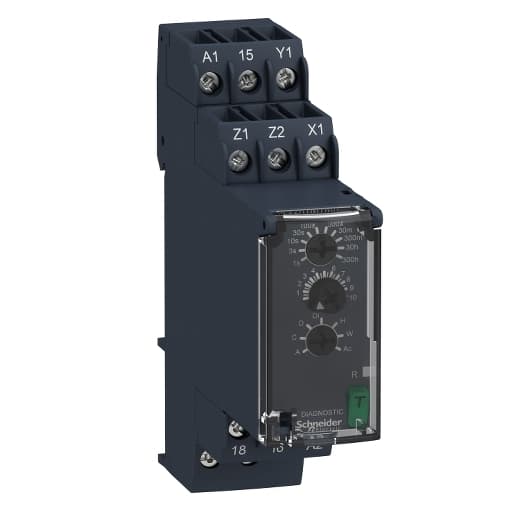

Schneider Electric RE22R1MYMR is an analog, modular multi-function timer designed for DIN rail mounting. It features a wide array of functions including A, Ac, At, Aw, C, D, Di, H, Ht, W, Act, Ct, Dw, Hw, Wt, Dt, Dit, Diw, controlled via a rotary knob, a diagnostic button, and an external potentiometer. The control signal pulse widths are 100ms with load in parallel and 30ms, with a recovery time of 120ms on de-energisation and a power-on delay of 100ms. It has a rated current of 8 A and falls under the RE22 sub-range. The degree of protection is IP40 for the housing, IP20 for the terminals, and IP50 for the front face. The housing material is self-extinguishing, and the power consumption at 240Vdc is 1.5 W. It features SPDT (1C/O) contacts, a rated impulse voltage of 5 kV, and a supply voltage range of 24-240 V AC/DC with a minimum of 20.4 V. The display includes a green LED backlight for dial pointer indication, and yellow LEDs for various timing and relay status indications. Its electrical durability is rated at 100,000 operations at 250vac/24Vdc and 10,000,000 operations. The time delay range is 1s to 300h (1 to 1,080,000 s), and it operates within a temperature range of -20°C to +60°C.

Product Details

  • Device Short Name
    RE22
  • Housing Material
    Self-extinguishing
  • Power Consumption In VA
    3 VA 240 V AC
  • Range Of Product
    Harmony Timer Relays
  • Voltage Range
    0.85...1.1 Us
  • Repeat Accuracy
    +/- 0.5 % IEC 61812-1
  • Maximum Switching Current
    8 A
  • Nominal Output Current
    8 A
  • Supply Frequency
    50...60 Hz +/- 5 %
  • Voltage Drift
    +/- 0.2 %/V
  • Minimum Switching Current
    10 mA 5 V DC
  • Discrete Output Type
    Relay
  • [Us] Rated Supply Voltage
    24...240 V AC/DC 50/60 Hz
  • Maximum Switching Voltage
    250 V AC
  • Mounting Support
    35 mm DIN rail conforming to EN/IEC 60715
  • Contacts Type And Composition
    1 C/O timed contact, cadmium free
  • Temperature Drift
    +/- 0.05 %/°C
  • Setting Accuracy Of Time Delay
    +/- 10 % of full scale 25 °C IEC 61812-1
  • Power On Delay
    100 ms
  • Release Input Voltage
    <= 2.4 V
  • Power Consumption In W
    1.5 W 240 V DC
  • Overvoltage Category
    III IEC 60664-1
  • Width
    0.89 in (22.5 mm)
  • Tightening Torque
    5.31…8.85 lbf.in (0.6…1 N.m) IEC 60947-1
  • Insulation Resistance
    100 MOhm 500 V DC IEC 60664-1
  • Creepage Distance
    4 kV/3 IEC 60664-1
  • Recovery Time
    120 ms on de-energisation
  • Switching Capacity In VA
    2000 VA
  • Product Or Component Type
    Multifunction relay
  • Net Weight
    0.22 lb(US) (0.1 kg)
  • Immunity To Microbreaks
    10 ms
  • Mechanical Durability
    10000000 cycles
  • Rated Impulse Withstand Voltage
    5 kV 1.2…50 µs IEC 60664-1
  • Mounting Position
    Any position
  • Control Signal Pulse Width
    100 ms with load in parallel 30 ms
  • Safety Reliability Data
    MTTFd = 205.4 years B10d = 190000
  • Electrical Durability
    100000 cycles, 8 A at 250 V, AC-1 100000 cycles, 2 A at 24 V, DC-1
  • Control Type
    Rotary knob Diagnostic button Potentiometer external
  • Connections - Terminals
    Screw terminals, 1 x 0.5...1 x 3.3 mm² AWG 20...AWG 12) solid without cable end Screw terminals, 2 x 0.5...2 x 2.5 mm² AWG 20...AWG 14) solid without cable end Screw terminals, 1 x 0.2...1 x 2.5 mm² AWG 24...AWG 14) flexible with cable end
  • Status LED
    Green LED backlight steady)dial pointer indication Yellow LED steady)output relay energised Yellow LED fast flashing)timing in progress and output relay de-energised Yellow LED slow flashing)timing in progress and output relay energised
  • Time Delay Type
    Power on-delay Off-delay On-delay and off-delay Symmetrical flashing Interval
  • Time Delay Range
    30...300 s 10...100 s 3...30 s 30...300 min 3...30 min 0.3...3 s 0.05...1 s 30...300 h 1...10 s 3...30 h

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of RE22R1MYMR on Powermatic Associates is $69.90. Order now.
