LS-551-0400-LIU22PN8X-H1151 Turck Industrial Automation Components

Name: LS-551-0400-LIU22PN8X-H1151
Brand: Turck
Price: 706.8 USD
Availability: BackOrder

LS-551-0400-LIU22PN8X-H1151 on Powermatic Associates

Part#:LS-551-0400-LIU22PN8X-H1151

Alt. Part#:100001856

Manufacturer:Turck

Category:Industrial Automation Components

Product Lifecycle:Active

Product description

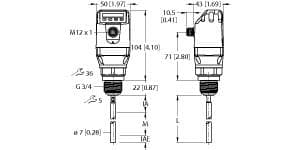

LS-551-0400-LIU22PN8X-H1151 Turck - LS-551-0400-LIU22PN8X-H1151 Level Sensor, With Analog Output and 2 × Switching Outputs

Product Details

Weight
840 g
RoHS
Yes
Country Of Origin
DEU
HTS Code
9026102040
Current output
4…20 mA
Voltage output
0…10 V
Protection class
IP67
Output function
NO/NC, PNP/NPN, analog output
Ambient temperature
-20…+60 °C
Medium
liquids
Medium temperature
-20…+100 °C
Measuring principle
Guided microwave
Materials (contact with media)
Stainless steel 1.4404 (AISI 316L), PTFE, FKM
Probe length (L)
400 mm
Housing material
Plastic, PBT
Process connection
G 3/4'' male thread
Pressure resistance
-1…10 bar
Detection type
medium contact
Communication protocol
IO-Link
Operating voltage
12…30 VDC

Electrical connection

Connector, M12 × 1

Weight

840 grams

Ambient Temperature

-20 degrees celsius, 60 degrees celsius

Operating Voltage

12 volts, 30 volts

Country of Origin

Germany

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of LS-551-0400-LIU22PN8X-H1151 on Powermatic Associates is $706.80. Order now.

About the product

Level Sensor, With Analog Output and 2 × Switching Outputs, , Multiple output signals: one system for both level detection and continuous level monitoring, Low maintenance and quick commissioning without calibration, High flexibility due to cutable probe, Compact, rotatable display housing ensures easy installation, Small inactive areas, ideal for small containers, Process temperature to 212 °F, Process pressure up to 145 psi, Coaxial tubes available for non-metallic tanks, IO-Link 1.1, , 12…30 VDC, 1 × analog output 4… 20 mA/0… 10 V (automatic switchover depending on load), 2 × PNP/IO-Link or PNP/NPN transistor outputs, each switchable, Process connection G3/4 male thread, Probe length 400 mm, "
