LS-551-0400-LIU24PN8X-H1181 Turck Industrial Automation Components
Part#:LS-551-0400-LIU24PN8X-H1181
Alt. Part#:100001858
Manufacturer:Turck
Category:Industrial Automation Components
Product Lifecycle:Active
Product description

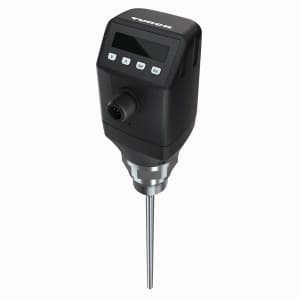

LS-551-0400-LIU24PN8X-H1181 Turck - LS-551-0400-LIU24PN8X-H1181 Level Sensor, With Analog Output and 4 × Switching Outputs
Product Details
- Weight 1000 g
- RoHS Yes
- Country Of Origin DEU
- HTS Code 8536507000
- Operating voltage 12…30 VDC
- Electrical connection Connector, M12 × 1
- Communication protocol IO-Link
- Medium liquids
- Medium temperature -20…+100 °C
- Voltage output 0…10 V
- Pressure resistance -1…10 bar
- Measuring principle Guided microwave
- Materials (contact with media) Stainless steel 1.4404 (AISI 316L), PTFE, FKM
- Probe length (L) 400 mm
- Current output 4…20 mA
- Output function NO/NC, PNP/NPN, analog output
- Housing material Plastic, PBT
- Process connection G 3/4'' male thread
- Detection type medium contact
- Ambient temperature -20…+60 °C
- Protection class IP67
- Country of Origin Germany
- Ambient Temperature -20 degrees celsius, 60 degrees celsius
- Operating Voltage 12 volts, 30 volts
- Weight 1000 grams
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of LS-551-0400-LIU24PN8X-H1181 on Powermatic Associates is $706.80. Order now.
About the product
Level Sensor, With Analog Output and 4 × Switching Outputs, , Multiple output signals: one system for both level detection and continuous level monitoring, Low maintenance and quick commissioning without calibration, High flexibility due to cutable probe, Compact, rotatable display housing ensures easy installation, Small inactive areas, ideal for small containers, Process temperature to 212 °F, Process pressure up to 145 psi, Coaxial tubes available for non-metallic tanks, IO-Link 1.1, , 12…30 VDC, 1x analog output 4… 20 mA/0… 10 V (automatic switchover depending on load), 1x transistor output (PNP) or IO-Link, 3x transistor output (PNP/NPN switchable), Process connection G3/4 male thread, Probe length 400 mm, "
