RI-10S10C-2B2500-12M23 Turck Industrial Automation Components

Name: RI-10S10C-2B2500-12M23
Brand: Turck
Price: 390 USD
Availability: BackOrder

RI-10S10C-2B2500-12M23 on Powermatic Associates

Part#:RI-10S10C-2B2500-12M23

Alt. Part#:1545848

Manufacturer:Turck

Category:Industrial Automation Components

Product Lifecycle:Active

Product description

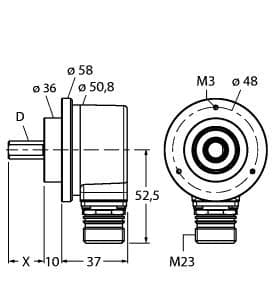

RI-10S10C-2B2500-12M23 Turck - RI-10S10C-2B2500-12M23 Incremental Encoder, Industrial Line

Product Details

Weight
400 g
RoHS
Yes
Country Of Origin
DEU
HTS Code
9029108000
Flange diameter
Ø 58 mm
Encoder line
Industrial-Line
Protection class
IP67
Shaft diameter D [mm]
10 mm
Resolution, incremental
2500 ppr
Technology
Optical
Operating voltage
10…30 VDC
Shaft Type
Solid shaft
Output function
Push-Pull/HTL, with inverted signals
Ambient temperature
-40…+85 °C
Electrical connection
Connector, M23
Output type
Incremental
Flange type
Clamping flange
Protection class shaft
IP67
Housing material
Die-cast zinc
Weight
400 grams

Operating Voltage

10 volts, 30 volts

Ambient Temperature

-40 degrees celsius, 85 degrees celsius

Country of Origin

Germany

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of RI-10S10C-2B2500-12M23 on Powermatic Associates is $390.00. Order now.

About the product

Incremental Encoder, Industrial Line, Resolution, incremental 2500 ppr, Clamping flange, Ø 58 mm, Solid shaft, Ø 10 mm × 20 mm, Optical measuring principle, Shaft material: stainless steel, Protection class IP67 on housing and shaft side, ‐40…+85 °C, Max. 6000 rpm (continuous operation 3000 rpm), 10…30 VDC, M23 male, 12-pin, Push-pull, with inverted signals, Pulse frequency max. 300 kHz, 2500 pulses per revolution
