RI-12I15E-4A100-H1181 Turck Industrial Automation Components

RI-12I15E-4A100-H1181 on Powermatic Associates
Turck

Part#:RI-12I15E-4A100-H1181

Manufacturer:Turck

Category:Industrial Automation Components

Product Lifecycle:Discontinued

Product description

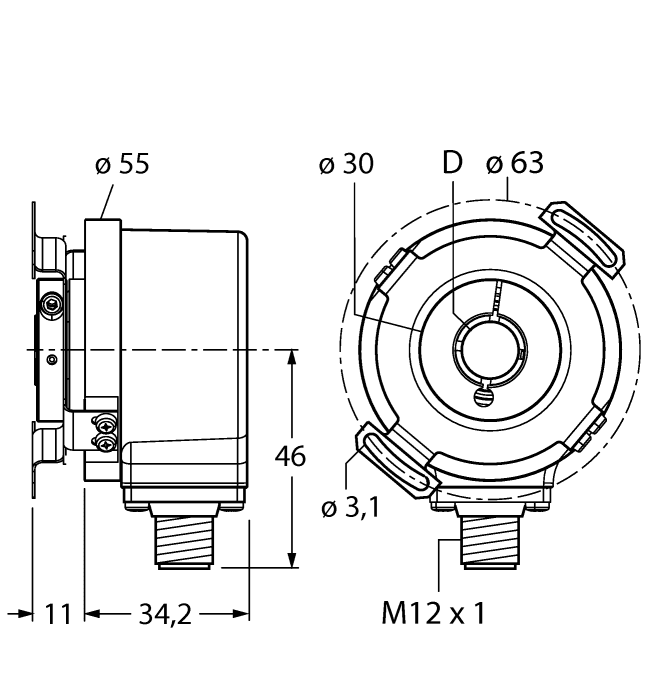

RI-12I15E-4A100-H1181 Turck - RI-12I15E-4A100-H1181 Incremental Encoder, Industrial Line

Product Details

  • Flange type
    Flange with stator coupling
  • Output function
    RS422, with inverted signals
  • Flange diameter
    Ø  63  mm
  • Technology
    Optical
  • Ambient temperature
    -40…+85 °C
  • Shaft Type
    Hollow shaft
  • Protection class
    IP67
  • Output type
    Incremental
  • Housing material
    Die-cast zinc
  • Shaft diameter D [mm]
    15  mm
  • Protection class shaft
    IP65
  • Encoder line
    Industrial-Line
  • Electrical connection
    Connector, M12 × 1
  • Resolution, incremental
    100  ppr
  • Ambient Temperature
    -40 degrees celsius, 85 degrees celsius

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.

About the product

Incremental Encoder, Industrial Line, Resolution, incremental 100 ppr, Flange with slotted flex mount, Ø 63mm, Hollow shaft, Ø 15mm, Optical measuring principle, Shaft material, stainless steel, Protection class IP65 on shaft side, -40…+85 °C, Max. 12000 rpm (continuous operation 6000), 5 VDC, Male connector, M12 x 1, 8-pole, RS422 with inverted signals, Pulse frequency max. 300 kHz, 100 pulses per revolution
