EA5R1500XKQ Banner Measurement Sensors

EA5R1500XKQ on Powermatic Associates
Banner

Part#:EA5R1500XKQ

Alt. Part#:15174

Manufacturer:Banner

Category:Measurement Sensors

Product Lifecycle:Active

Product description

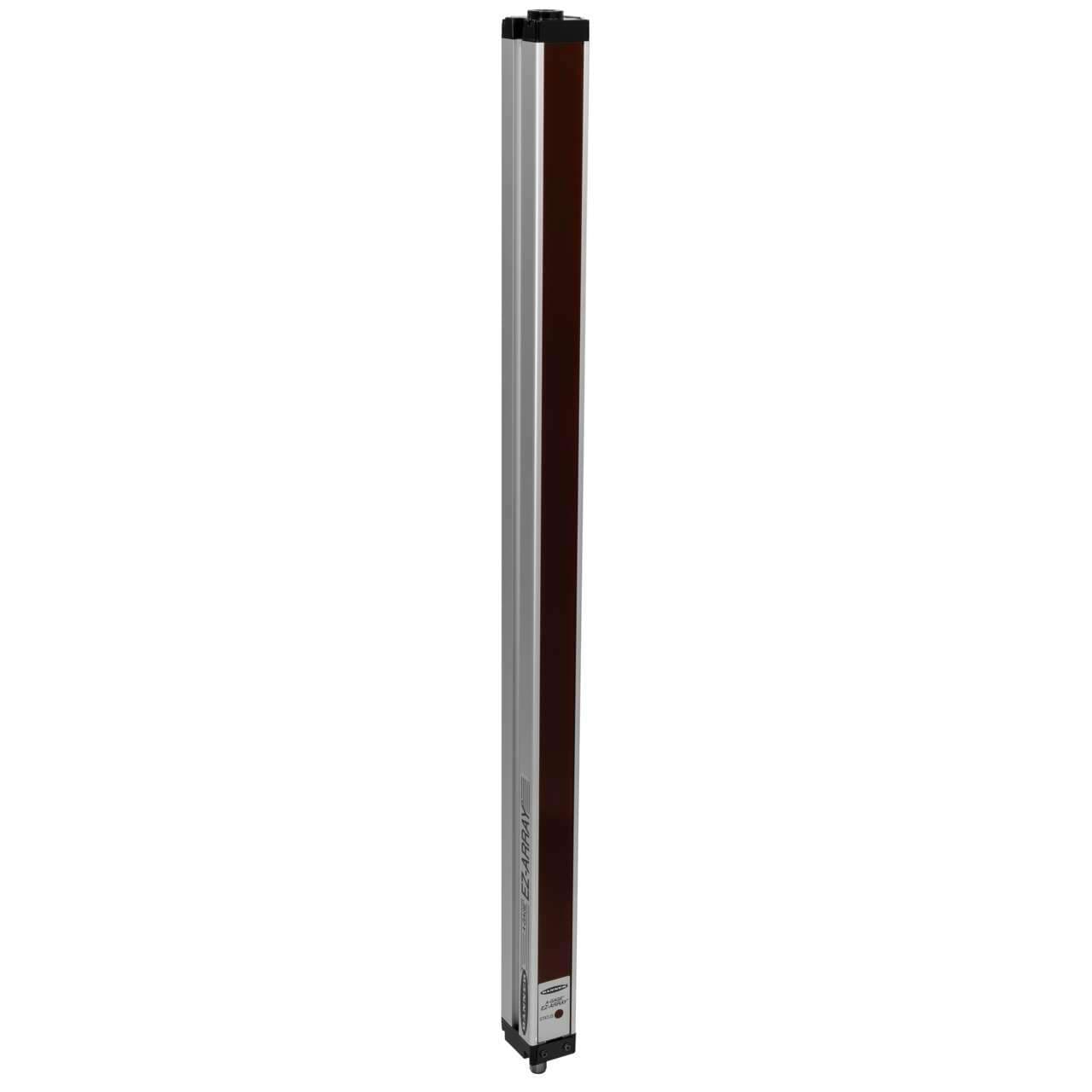

EA5R1500XKQ EZ-ARRAY 5 mm Optical Spacing x 1500 mm RECVR with IO-Link Integral 8-pin M12

Product Details

  • Weight
    4535.92 g
  • Country Of Origin
    MX
  • Product series / family name
    A-GAGE series
  • Display
    LCD 3 digits display
  • Connection type
    Pre-equipped with 8-pin Euro-style M12 connector
  • Supply voltage (DC)
    12Vdc-30Vdc (24Vdc nom.)
  • Sub-range name
    EZ-ARRAY
  • Communication protocol
    IO-Link
  • Main function
    Sensor (Edge)
  • Distance
    300 beams / 5mm beam spacing/pitch
  • Primary brand
    Banner Engineering
  • Functions
    Measuring light curtain array edge/profile sensor receiver green LED (power ON) red LED (failure)
  • Analog outputs
    2 x analog outputs (0-10Vdc)
  • Dimensions
    1500mm array length
  • Detectable object size
    5-10mm
  • Sensing distance
    40cm...4m
  • Material
    Aluminium housing
  • Order code / Manufacturer SKU
    15174
  • Resolution
    5mm
  • Degree of protection
    IP65
  • Compliant with standard(s)
    CE
  • Digital outputs
    2 x digital outputs (PNP transistors)
  • Ambient air temperature for operation
    -40...+70 °C

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of EA5R1500XKQ on Powermatic Associates is $2,527.00. Order now.

About the product

Banner Engineering EA5R1500XKQ is a sensor designed for edge detection with a robust aluminium housing. It operates within an ambient air temperature range of -40 to +70°C and offers two analog outputs (0-10Vdc) and two digital outputs (PNP transistor; complementary NO/NC) for versatile connectivity. This sensor, part of the EZ-ARRAY series, features a rectangular shape with dimensions including a 1500mm array length, capable of detecting objects sized between 5-10mm. It boasts a resolution of 5mm and a sensing distance ranging from 40cm to 4m. The EA5R1500XKQ is equipped with a pre-equipped 8-pin Euro-style M12 connector for easy installation and operates on a supply voltage of 12Vdc-30Vdc (24Vdc nom.). It supports the IO-Link communication protocol and is designed for measuring light curtain array edge/profile with a configuration of 300 beams and a 5mm beam spacing/pitch. The device is protected to a degree of IP65, ensuring durability in various environmental conditions.
