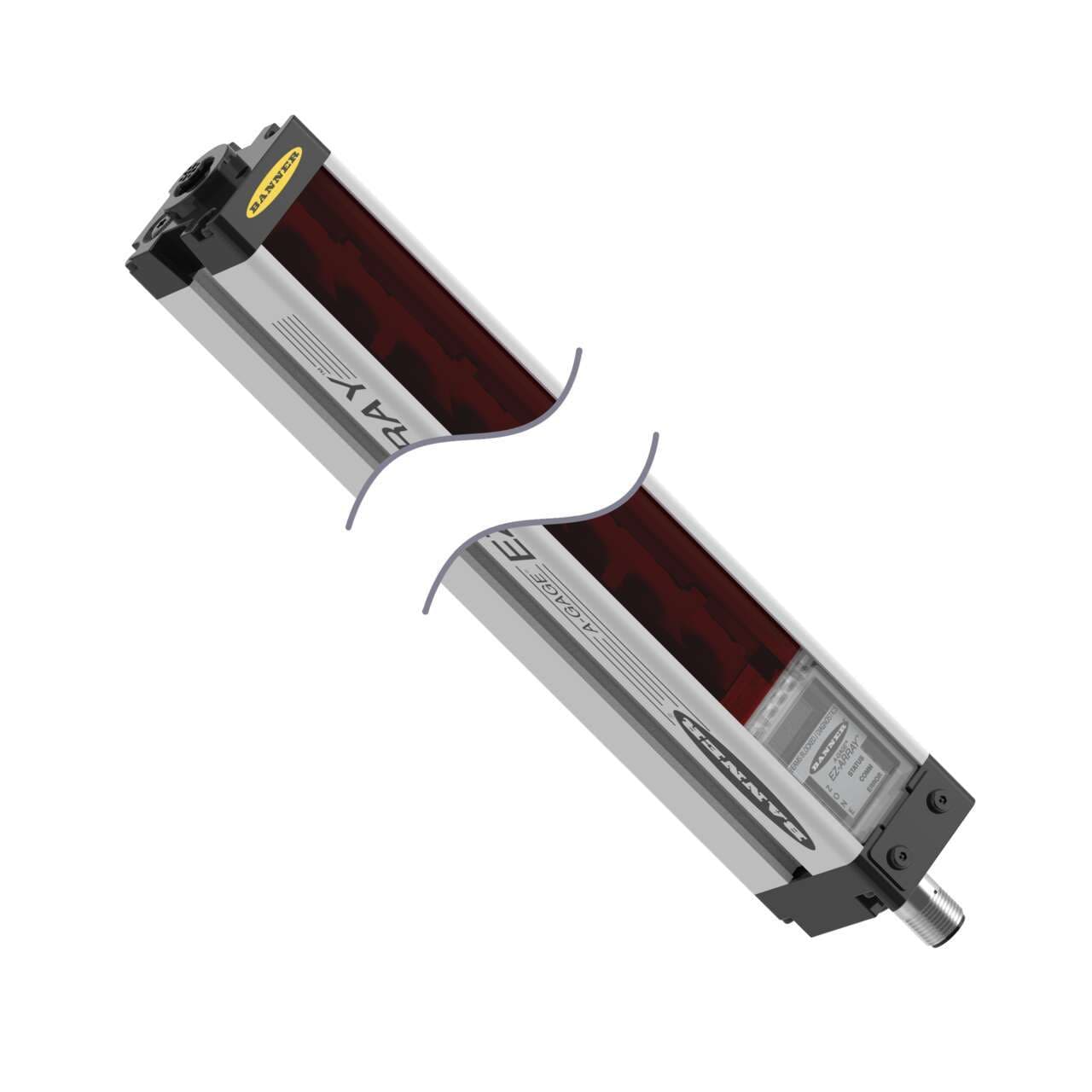

EA5R750NIXMODQ Banner Measurement Sensors

EA5R750NIXMODQ on Powermatic Associates
Banner

Part#:EA5R750NIXMODQ

Alt. Part#:75415

Manufacturer:Banner

Category:Measurement Sensors

Product Lifecycle:Active

Product description

EZ-ARRAY Receiver: 750 mm (29.5 in); Range: (matching emitter sold separately) 400 mm - 4 m; Input: 12-30 V dc; Outputs: 2 Solid-State NPN 2 Analog 4-20 mA EIA-485; 8-pin M12 Integral QD

Product Details

  • Weight
    281.22704 g
  • Country Of Origin
    MX
  • Emitter/Receiver Range (m)
    0.4 - 4
  • Power Supply
    12-30V dc
  • Array Length (mm)
    750
  • Max Relative Humidity
    95%
  • Housing Length (mm)
    828
  • Min Temp (°C)
    -40
  • Number of Beams
    150
  • Discrete Output
    NPN
  • Minimum Object Sensitivity (mm)
    5-10
  • Max Temp (°C)
    70
  • IO Link
    No
  • Analog Output
    Current (4-20 mA)
  • RS-485
    Yes
  • RS-232
    No
  • Modbus RTU
    Yes
  • Beam Spacing
    5 mm
  • Primary Housing Material
    Aluminum
  • Sensing Mode (Detailed)
    Receiver
  • Device Type
    Two-Piece
  • DeviceNet
    No
  • Power
    DC
  • Distance
    150 beams / 5mm beam spacing/pitch
  • Sensing distance
    40cm...4m
  • Degree of protection
    IP65
  • Product series / family name
    A-GAGE series
  • Analog outputs
    2 x analog outputs (4-20mA)
  • Dimensions
    750mm array length
  • Supply voltage (DC)
    12Vdc-30Vdc (24Vdc nom.)
  • Connection type
    Pre-equipped with 8-pin Euro-style M12 connector
  • Digital outputs
    2 x digital outputs (NPN transistors)
  • Ambient air temperature for operation
    -40...+70 °C
  • Main function
    Sensor (Edge)
  • Sub-range name
    EZ-ARRAY
  • Functions
    Measuring light curtain array edge/profile sensor receiver green LED (power ON) red LED (failure)
  • Material
    Aluminium housing
  • Primary brand
    Banner Engineering
  • Display
    LCD 3 digits display
  • Communication protocol
    Modbus RTU RS-485
  • Resolution
    5mm
  • Detectable object size
    5-10mm
  • Compliant with standard(s)
    cULus CE
  • Order code / Manufacturer SKU
    75415

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of EA5R750NIXMODQ on Powermatic Associates is $1,478.00. Order now.

About the product

Banner Engineering EA5R750NIXMODQ is a sensor designed for edge detection, belonging to the EZ-ARRAY series. This sensor features an aluminium housing and operates within an ambient air temperature range of -40 to +70°C. It is equipped with two analog outputs (4-20mA) and two digital outputs (NPN transistor; complementary NO/NC), ensuring versatile connectivity options. The device offers a degree of protection rated at IP65 and has dimensions with a 750mm array length. It is capable of detecting objects sized between 5-10mm, with a resolution of 5mm and a sensing distance ranging from 40cm to 4m. This measuring light curtain array edge/profile sensor (receiver alone) is rectangular in shape and comes pre-equipped with an 8-pin Euro-style M12 connector for easy installation. It requires a supply voltage of 12Vdc-30Vdc (24Vdc nom.) and supports the Modbus RTU RS-485 communication protocol. The sensor features 150 beams with a 5mm beam spacing/pitch, facilitating precise detection and measurement tasks.
