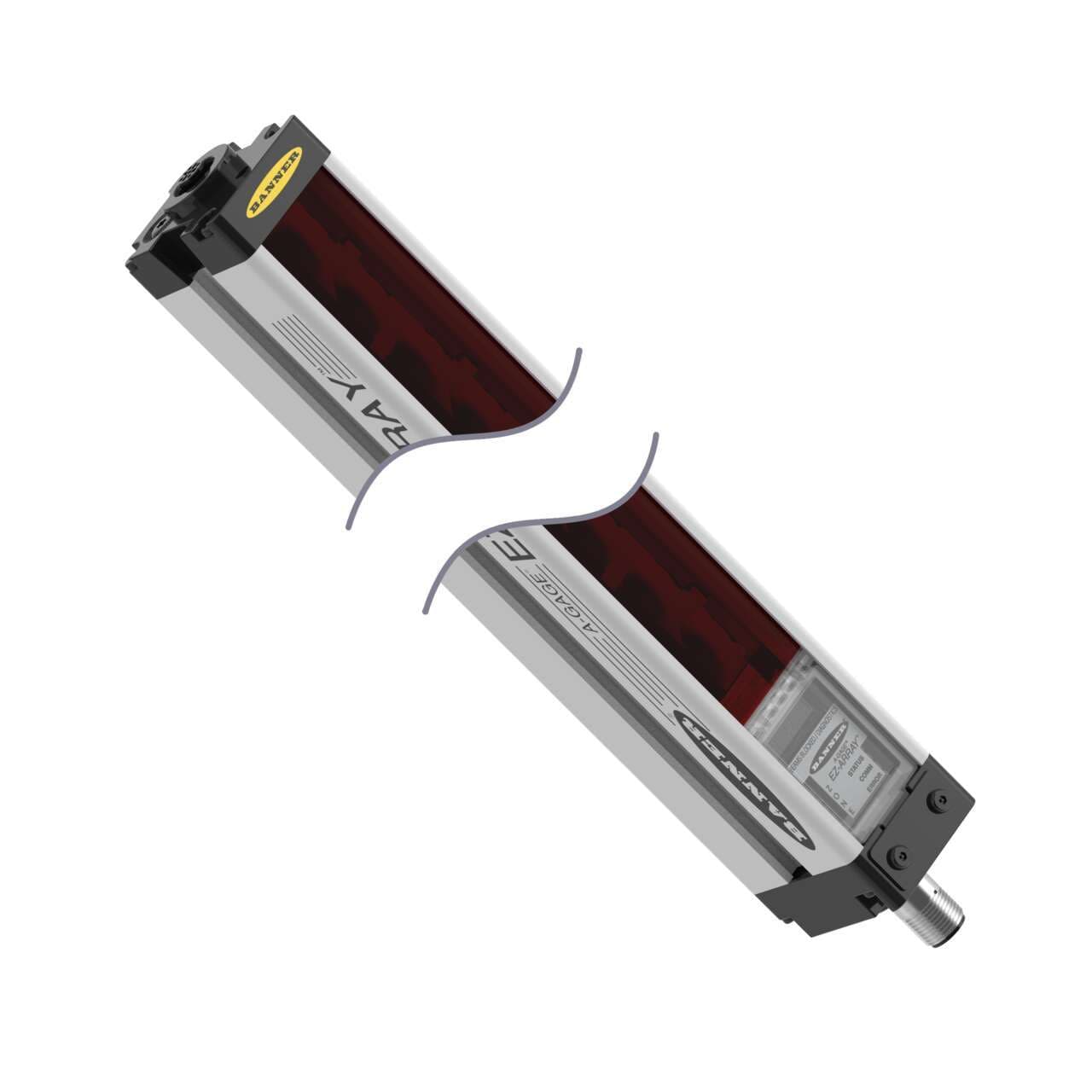

EA5R900PIXMODSRLCQ Banner Measurement Sensors
Part#:EA5R900PIXMODSRLCQ
Alt. Part#:17088
Manufacturer:Banner
Category:Measurement Sensors
Product Lifecycle:Active
Product description
EZ-ARRAY Short Range Low Contrast Receiver:900 mm; Range 30-1500 mm;Input 12-30 V dc; Output 2 PNP Discrete; Output 2 4-20 mA Analog; EIA-485; 8-pin M12 and 5-pin M12 QD
Product Details
- Weight 3048.13824 g
- Country Of Origin MX
- Beam Spacing 5 mm
- Minimum Object Sensitivity (mm) 5-10
- DeviceNet No
- Discrete Output PNP
- Device Type Two-Piece
- RS-485 Yes
- Max Relative Humidity 95%
- Low Contrast Yes
- Number of Beams 180
- RS-232 No
- Sensing Mode (Detailed) Receiver
- Min Temp (°C) -40
- Power Supply 12-30V dc
- Primary Housing Material Aluminum
- Modbus RTU Yes
- Housing Length (mm) 978
- Power DC
- Analog Output Current (4-20 mA)
- Emitter/Receiver Range (m) 0.3 - 1.5
- Short Range Yes
- Array Length (mm) 900
- IO Link No
- Max Temp (°C) 70
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of EA5R900PIXMODSRLCQ on Powermatic Associates is $1,692.00. Order now.
About the product
Banner Engineering EA5R900PIXMODSRLCQ is a sensor designed for edge detection, belonging to the EZ-ARRAY series. It features an aluminium housing and operates within an ambient air temperature range of -40 to +70°C. This sensor is equipped with two analog outputs (4-20mA) and two digital outputs (PNP transistor; complementary NO/NC), ensuring versatile connectivity options. It has an IP65 degree of protection, making it suitable for various industrial environments. The sensor's dimensions include a 900mm array length, with a detectable object size range of 5-10mm. It offers a resolution of 5mm and a sensing distance between 30mm and 1.5m. This model is specifically designed as a short-range low-contrast measuring light curtain array edge/profile sensor (receiver alone). It comes pre-equipped with an 8-pin Euro-style M12 connector for easy installation. The supply voltage requirement is 12Vdc-30Vdc, with 24Vdc nominal. For communication, it utilizes the Modbus RTU RS-485 protocol. The sensor features 180 beams with a 5mm beam spacing/pitch, facilitating precise detection and measurement.
