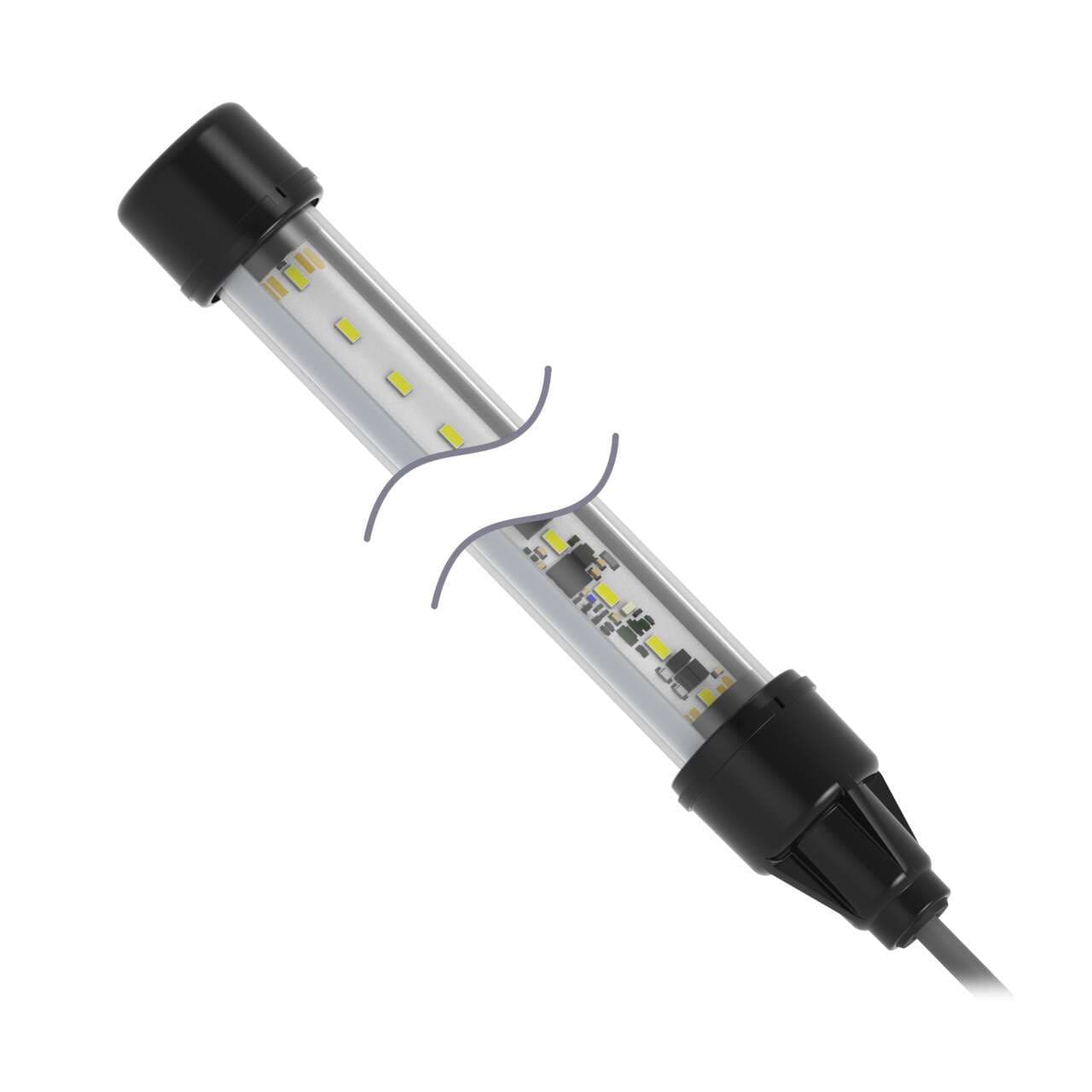

HLS27DW0285C W/30 Banner Light Bars
Part#:HLS27DW0285C W/30
Alt. Part#:807300
Manufacturer:Banner
Category:Light Bars
Product Lifecycle:Active
Product description
HLS27 Hazardous Location Strip Light; Length: 285 mm; Voltage: 12-30 V dc; Environmental Rating: IP66; IP67; Color: White; 9 m (30 ft) ITC-ER 3-wire Cable
Product Details
- Weight 471.73568 g
- Country Of Origin MX
- Power DC
- Color Option 1 White
- Illuminated Length (LxWxH mm) 282.0
- Feature: Chemical Resistant Yes
- Color Input Control Individual (One wire/color, same number of colors as input wires)
- Max Current Color (mA) 800
- Modbus RTU No
- Housing Style Linear Strip
- Animation Option 1 Solid On
- Environmental Rating IP66; IP67
- IO Link No
- Feature: Hazardous Area Yes
- Cable Length (m) 2
- Product Size (mm) 27
- Number of Input Pins/Conductors 4
- Primary Window Material Polycarbonate Clear
- Illumination Yes
- Connection Cable
- Multi-Color Device Single Color On
- Number of Colors / Segments 1
- Dimming Option PWM
- Storage Temp (°C) -40 to 70
- Power Source DC
- Color Technology Standard LED
- Supply Voltage 12-30 V dc
- Feature: Audible No
- Primary Housing Material Polycarbonate
- Lumens Color 1 850
- Wireless No
- Mounting Thread No Thread
- Color 1 - Wavelength/Color Temp/Coordinates 6500K (Cool)
- Min Op. Temperature (°C) -40
- Feature: Quick Disconnect No
- Physical Dimensions (LxWxH or DxH mm) 38.1 x 370.0
- Max Op. Relative Humidity Non-Condensing (%) 90% @ 50°C
- Pro-Editor Compatible (Discrete) No
- Max Op. Temperature (°C) 60
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of HLS27DW0285C W/30 on Powermatic Associates is $456.00. Order now.
About the product
Banner Engineering HLS27DW0285C W/30 is a task light designed for industrial applications, featuring LED strip light/bar technology. It operates with a Hi/Lo/OFF function suitable for explosive atmospheres or hazardous areas, providing 1-color Cool White (W) LED illumination. The dimensions are specified as a length of 285mm and a diameter of 27mm, with a cylindrical linear strip shape. The construction includes a clear polycarbonate (PC) window and a polycarbonate (PC) base for durability. It comes pre-wired with a 9m / 30ft 4-wire cable terminated with bare end flying leads for connectivity. The supply voltage ranges from 12Vdc to 30Vdc, with a nominal 24Vdc, and it operates within an ambient air temperature range of -40°C to +60°C. This model offers a degree of protection rated at IP66 and IP67, consumes 800mA of current, and includes 1 x digital input (12-30Vdc) for color control. The luminous flux is rated at 850 lm (lumens), ensuring adequate illumination for a variety of tasks.
