HLS27DGYRXX3-850C24 Banner Electronic Components
Part#:HLS27DGYRXX3-850C24
Manufacturer:Banner
Category:Electronic Components
Product Lifecycle:Active
Product description

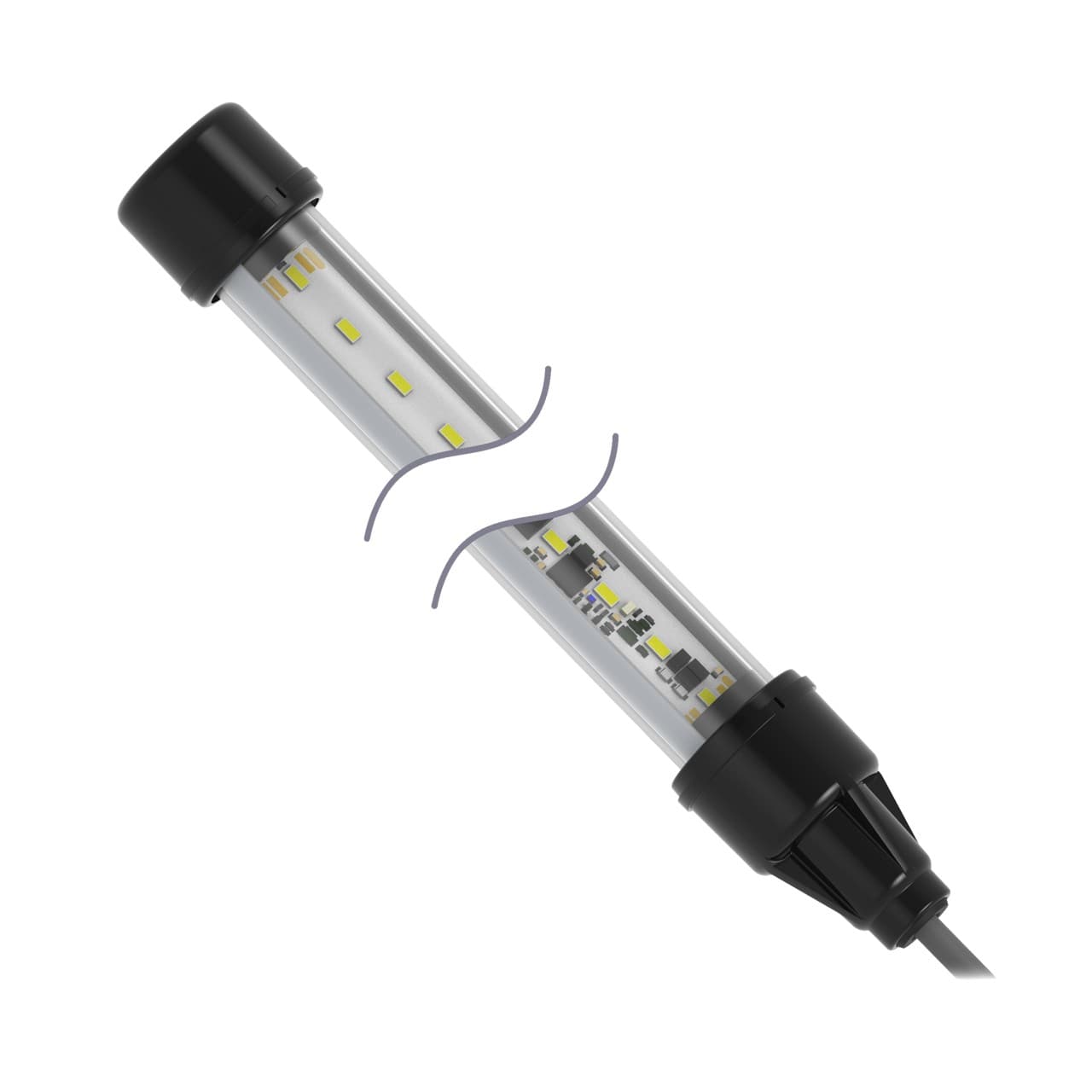

HLS27 Hazardous Location Multicolor Strip Light; Length: 850 mm, Voltage: 24 V dc; Environmental Rating: IP66; IP67, Colors: Green, Yellow, Red, 2m (6.5ft) ITC-ER 4-wire Cable
Product Details
- Illumination Yes
- Color Technology Standard LED
- Connection Cable
- Color 3 - Wavelength/Color Temp/Coordinates 625 nm
- Indication Yes
- Animation Option 2 Solid On
- Max Current Color (mA) 1200
- Storage Temp (°C) -40 to 70
- IO Link No
- Power DC
- Number of Colors / Segments 3
- Lumens Color 3 585
- Max Op. Temperature (°C) 60
- Feature: Quick Disconnect No
- Cable Length (m) 2
- Color Option 1 Green
- Number of Input Pins/Conductors 4
- Primary Housing Material Polycarbonate
- Color Option 2 Yellow
- Color Option 3 Red
- Max Op. Relative Humidity Non-Condensing (%) 90% @ 50°C
- Multi-Color Device Single Color On
- Mounting Thread No Thread
- Product Size (mm) 27
- Feature: Hazardous Area Yes
- Wireless No
- Color Input Control Individual (One wire/color, same number of colors as input wires)
- Lumens Color 1 1275
- Lumens Color 2 1815
- Physical Dimensions (LxWxH or DxH mm) 38.1 x 934.0
- Feature: Chemical Resistant Yes
- Animation Option 3 Solid On
- Supply Voltage 24 V dc
- Primary Window Material Polycarbonate Clear
- Modbus RTU No
- Housing Style Linear Strip
- Color 1 - Wavelength/Color Temp/Coordinates 525 nm
- Color 2 - Wavelength/Color Temp/Coordinates 580 nm
- Illuminated Length (LxWxH mm) 846.0
- Feature: Audible No
- Pro-Editor Compatible (Discrete) No
- Power Source DC
- Animation Option 1 Solid On
- Environmental Rating IP66; IP67
- Min Op. Temperature (°C) -40
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
