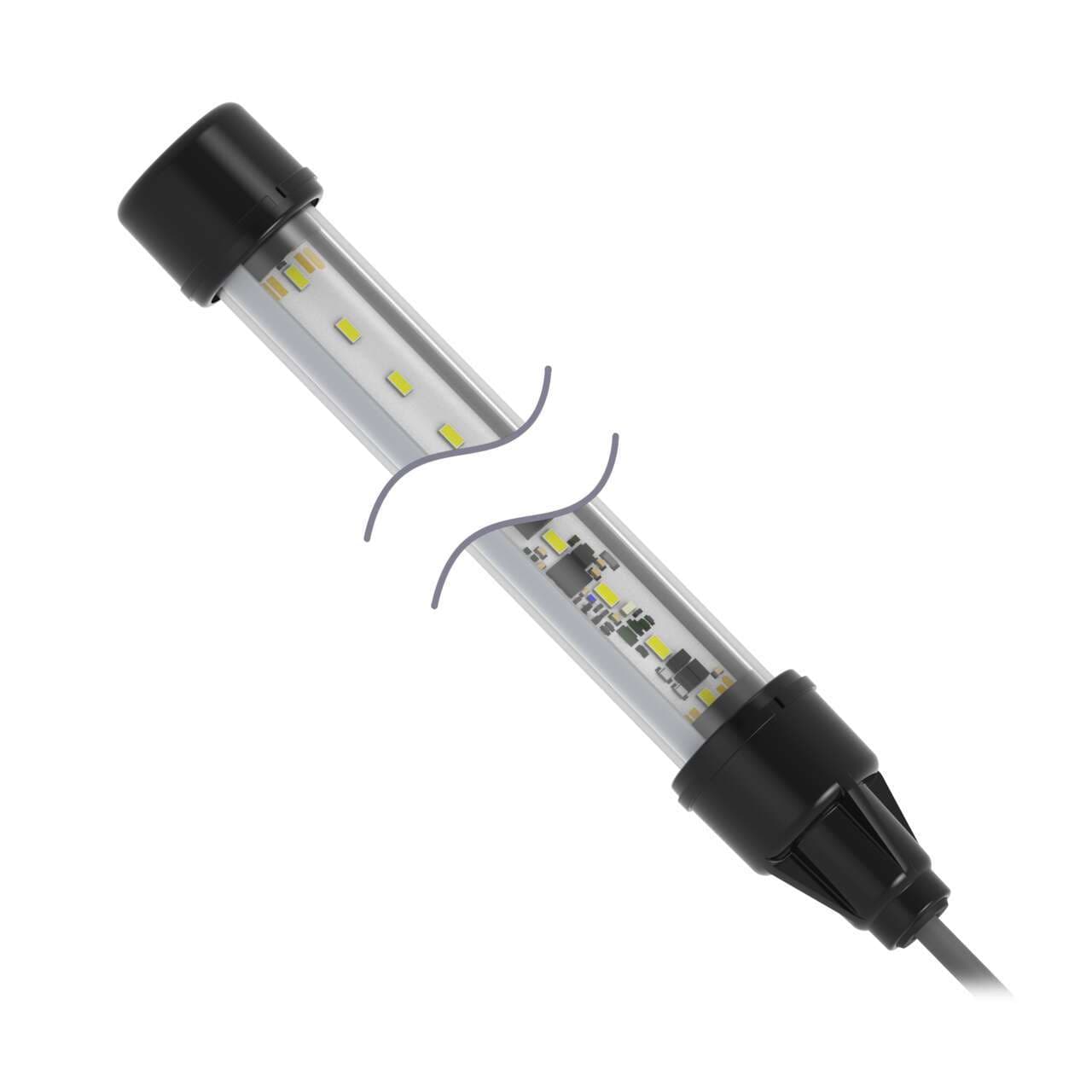

HLS27DWYRXX3-570C24 Banner Light Bars

Product Details

• Weight
  675.85208 g
• Country Of Origin
  MX
• Illumination
  Yes
• Color Technology
  Standard LED
• Color 2 - Wavelength/Color Temp/Coordinates
  580 nm
• Physical Dimensions (LxWxH or DxH mm)
  38.1 x 652.0
• IO Link
  No
• Animation Option 3
  Solid On
• Primary Window Material
  Polycarbonate Clear
• Power Source
  DC
• Animation Option 1
  Solid On
• Lumens Color 3
  390
• Housing Style
  Linear Strip
• Lumens Color 1
  1380
• Supply Voltage
  24 V dc
• Feature: Hazardous Area
  Yes
• Mounting Thread
  No Thread
• Connection
  Cable
• Color 3 - Wavelength/Color Temp/Coordinates
  625 nm
• Min Op. Temperature (°C)
  -40
Multi-Color Device
Single Color On
Cable Length (m)
2
Product Size (mm)
27
Color Option 3
Red
Storage Temp (°C)
-40 to 70
Wireless
No
Color Input Control
Individual (One wire/color, same number of colors as input wires)
Color Option 2
Yellow
Illuminated Length (LxWxH mm)
564.0
Feature: Audible
No
Power
DC
Color 1 - Wavelength/Color Temp/Coordinates
5000K (Daylight)
Max Current Color (mA)
800
Max Op. Relative Humidity Non-Condensing (%)
90% @ 50°C
Indication
Yes
Color Option 1
White
Lumens Color 2
1210
Max Op. Temperature (°C)
60
Modbus RTU
No
Primary Housing Material
Polycarbonate
Number of Colors / Segments
3
Animation Option 2
Solid On
Number of Input Pins/Conductors
4
Feature: Chemical Resistant
Yes
Environmental Rating
IP66; IP67
Pro-Editor Compatible (Discrete)
No
