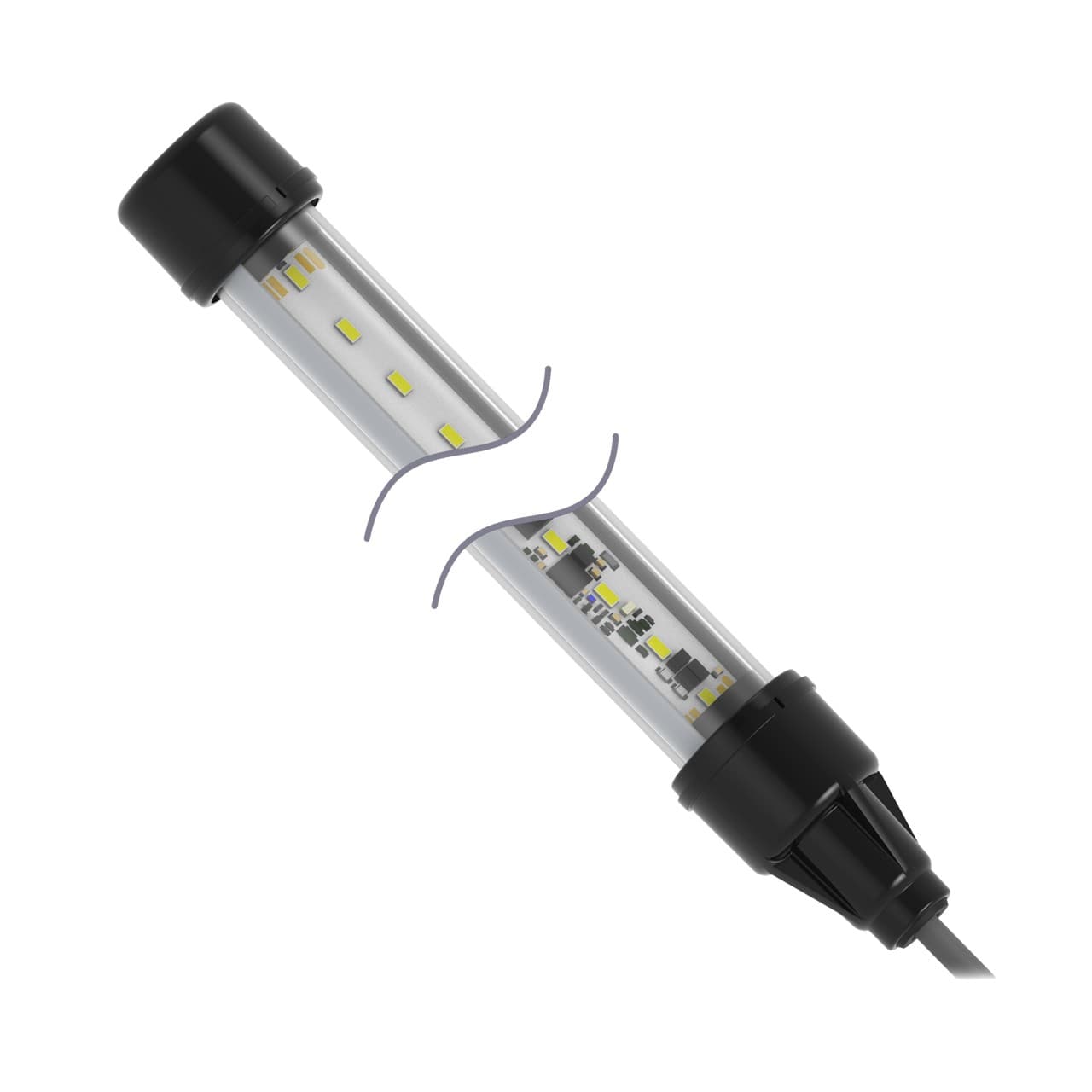

HLS27DWYRXX3-850C24 Banner Electronic Components

Product Details

• Indication
  Yes
• Color Option 2
  Yellow
• Lumens Color 3
  585
• Environmental Rating
  IP66; IP67
• Modbus RTU
  No
• Illumination
  Yes
• Color 1 - Wavelength/Color Temp/Coordinates
  5000K (Daylight)
• Connection
  Cable
• Max Op. Temperature (°C)
  60
• Wireless
  No
• Power
  DC
• Number of Colors / Segments
  3
• Color 3 - Wavelength/Color Temp/Coordinates
  625 nm
• Number of Input Pins/Conductors
  4
• IO Link
  No
• Primary Housing Material
  Polycarbonate
• Lumens Color 1
  2070
• Max Current Color (mA)
  1200
• Min Op. Temperature (°C)
  -40
• Pro-Editor Compatible (Discrete)
  No
Housing Style
Linear Strip
Animation Option 1
Solid On
Animation Option 3
Solid On
Feature: Hazardous Area
Yes
Physical Dimensions (LxWxH or DxH mm)
38.1 x 934.0
Multi-Color Device
Single Color On
Color Input Control
Individual (One wire/color, same number of colors as input wires)
Color 2 - Wavelength/Color Temp/Coordinates
580 nm
Lumens Color 2
1815
Feature: Audible
No
Power Source
DC
Product Size (mm)
27
Color Option 1
White
Illuminated Length (LxWxH mm)
846.0
Feature: Quick Disconnect
No
Cable Length (m)
2
Color Technology
Standard LED
Color Option 3
Red
Max Op. Relative Humidity Non-Condensing (%)
90% @ 50°C
Primary Window Material
Polycarbonate Clear
Mounting Thread
No Thread
Animation Option 2
Solid On
Supply Voltage
24 V dc
Storage Temp (°C)
-40 to 70
Feature: Chemical Resistant
Yes
