HLS27DW0430CPWMQP Banner Electronic Components
Part#:HLS27DW0430CPWMQP
Manufacturer:Banner
Category:Electronic Components
Product Lifecycle:Active
Product description

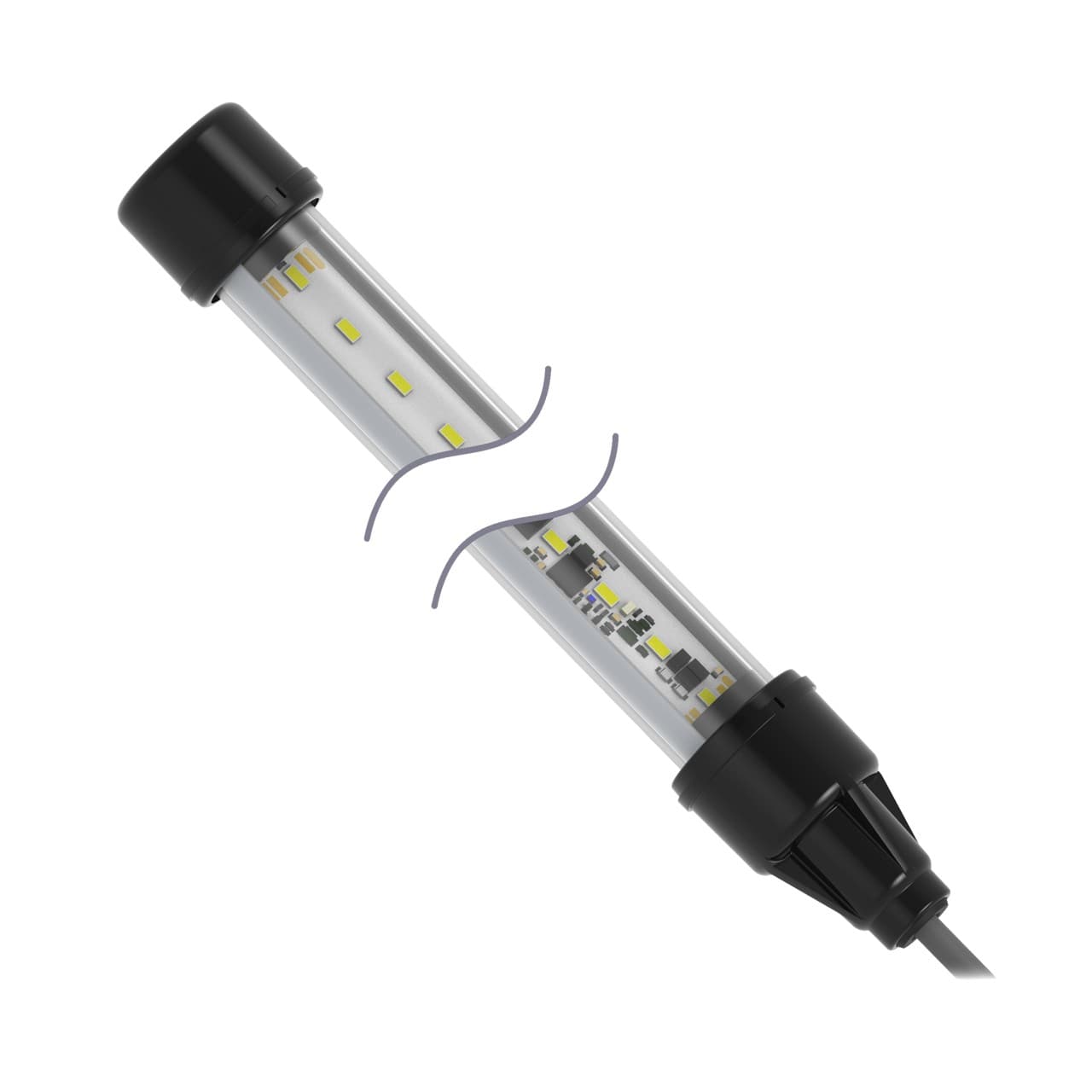

HLS27 Hazardous Location Strip Light; Length: 430 mm; PWM Dimming, Voltage: 12-30 V dc; Environmental Rating: IP66; IP67, Color: White;, 150mm ITC-ER cable with 4-pin male 7/8 Minifast
Product Details
- Mounting Thread No Thread
- Color Technology Standard LED
- Illuminated Length (LxWxH mm) 423.0
- Feature: Audible No
- Power Source DC
- Max Current Color (mA) 1200
- Max Op. Temperature (°C) 60
- Feature: Chemical Resistant Yes
- Pro-Editor Compatible (Discrete) No
- Color Input Control Individual (One wire/color, same number of colors as input wires)
- Lumens Color 1 1275
- Physical Dimensions (LxWxH or DxH mm) 38.1 x 511.0
- Wireless No
- Cable Length (m) 0.15
- Color Option 1 White
- Supply Voltage 12-30 V dc
- Environmental Rating IP66; IP67
- Modbus RTU No
- Illumination Yes
- Animation Option 1 Solid On
- Min Op. Temperature (°C) -40
- Feature: Hazardous Area Yes
- Primary Housing Material Polycarbonate
- Number of Colors / Segments 1
- Color 1 - Wavelength/Color Temp/Coordinates 6500K (Cool)
- Storage Temp (°C) -40 to 70
- Housing Style Linear Strip
- Connection Pigtail QD
- Number of Input Pins/Conductors 4
- Primary Window Material Polycarbonate Clear
- IO Link No
- Power DC
- Product Size (mm) 27
- Dimming Option High-Low-Off
- Max Op. Relative Humidity Non-Condensing (%) 90% @ 50°C
- Multi-Color Device Single Color On
- Feature: Quick Disconnect Yes
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
