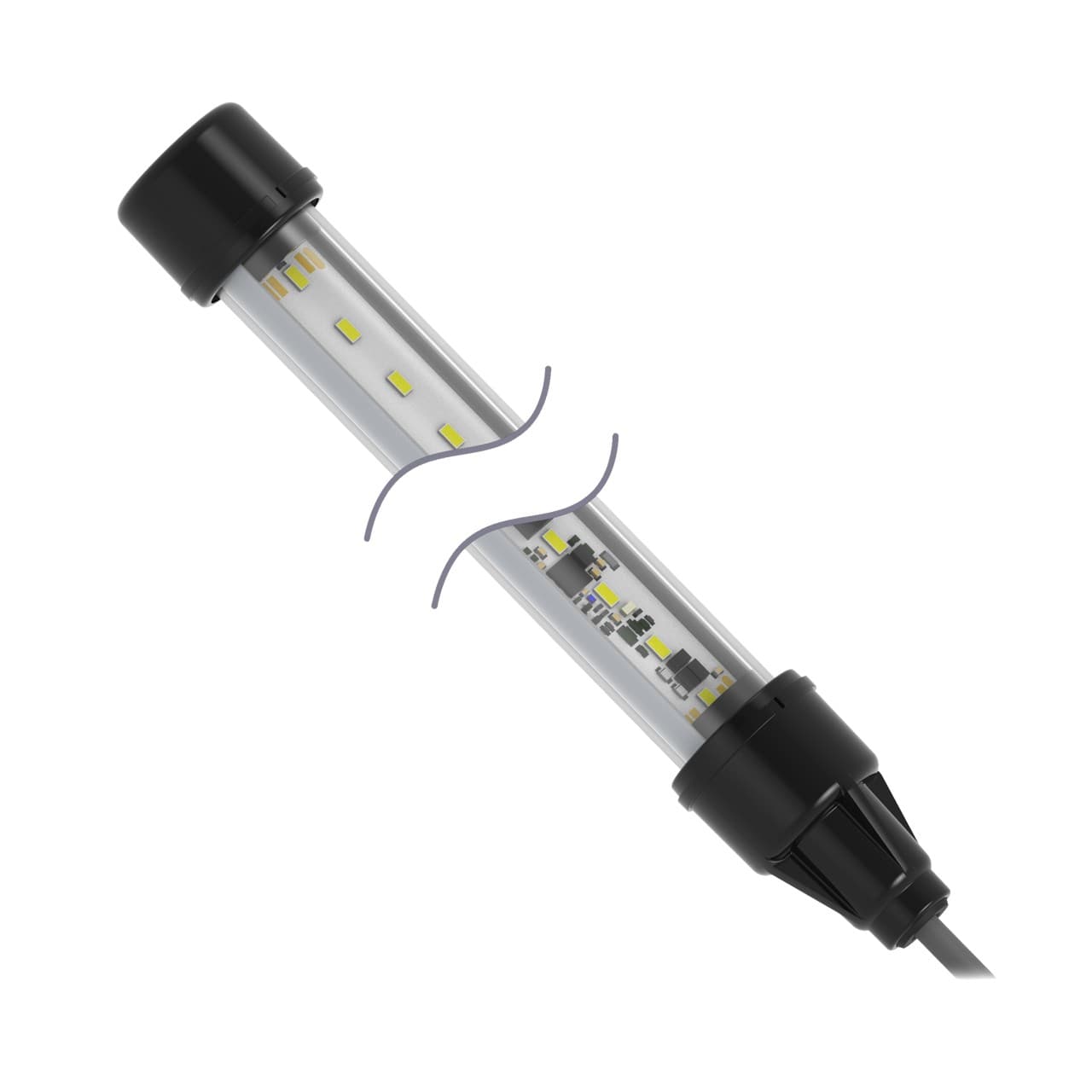

HLS27DW0710CPWMQP Banner Electronic Components

Product Details

• Color Input Control
  Individual (One wire/color, same number of colors as input wires)
• Animation Option 1
  Solid On
• Max Op. Relative Humidity Non-Condensing (%)
  90% @ 50°C
• Feature: Chemical Resistant
  Yes
• Mounting Thread
  No Thread
• Connection
  Pigtail QD
• Power Source
  DC
• Environmental Rating
  IP66; IP67
• Max Current Color (mA)
  2000
• Supply Voltage
  12-30 V dc
• Primary Window Material
  Polycarbonate Clear
• Multi-Color Device
  Single Color On
• Pro-Editor Compatible (Discrete)
  No
• Cable Length (m)
  0.15
• Color Option 1
  White
• Min Op. Temperature (°C)
  -40
• Modbus RTU
  No
• Housing Style
  Linear Strip
• Lumens Color 1
  2125
• Storage Temp (°C)
  -40 to 70
Feature: Quick Disconnect
Yes
Number of Colors / Segments
1
Physical Dimensions (LxWxH or DxH mm)
38.1 x 794.0
Dimming Option
High-Low-Off
IO Link
No
Illumination
Yes
Product Size (mm)
27
Number of Input Pins/Conductors
4
Feature: Hazardous Area
Yes
Power
DC
Color Technology
Standard LED
Max Op. Temperature (°C)
60
Wireless
No
Color 1 - Wavelength/Color Temp/Coordinates
6500K (Cool)
Primary Housing Material
Polycarbonate
Illuminated Length (LxWxH mm)
705.0
Feature: Audible
No
