HLS27DW1130CPWMQP Banner Electronic Components

HLS27DW1130CPWMQP on Powermatic Associates
Banner

Part#:HLS27DW1130CPWMQP

Manufacturer:Banner

Category:Electronic Components

Product Lifecycle:Active

Product description

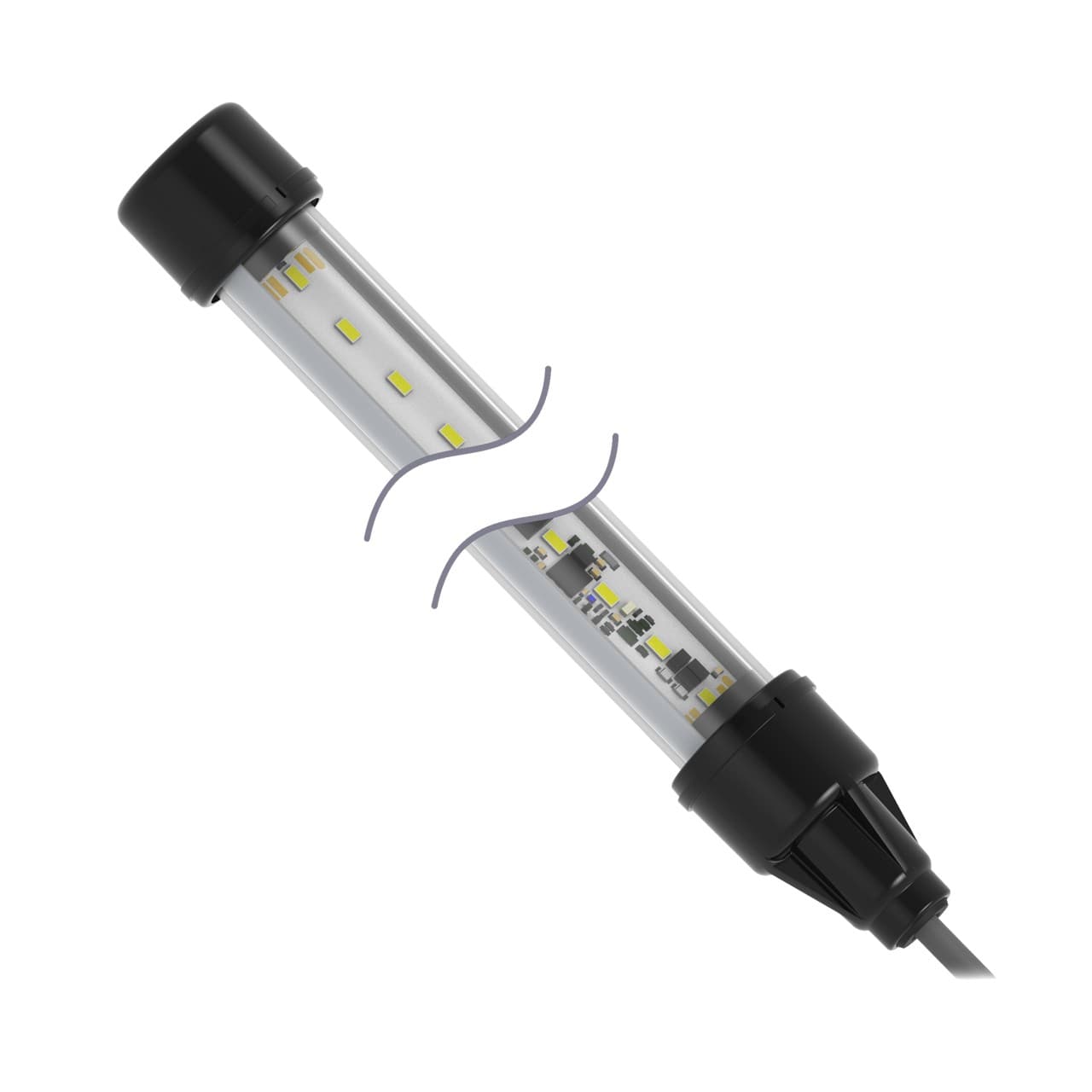

HLS27 Hazardous Location Strip Light; Length: 1130 mm; PWM Dimming, Voltage: 12-30 V dc; Environmental Rating: IP66; IP67, Color: White;, 150mm ITC-ER cable with 4-pin male 7/8 Minifast

Product Details

  • Color Input Control
    Individual (One wire/color, same number of colors as input wires)
  • Color Technology
    Standard LED
  • Physical Dimensions (LxWxH or DxH mm)
    38.1 x 1216.0
  • Feature: Audible
    No
  • Power Source
    DC
  • Color 1 - Wavelength/Color Temp/Coordinates
    6500K (Cool)
  • Environmental Rating
    IP66; IP67
  • Wireless
    No
  • Power
    DC
  • Connection
    Pigtail QD
  • Max Op. Temperature (°C)
    60
  • IO Link
    No
  • Mounting Thread
    No Thread
  • Color Option 1
    White
  • Supply Voltage
    12-30 V dc
  • Feature: Hazardous Area
    Yes
  • Product Size (mm)
    27
  • Dimming Option
    High-Low-Off
  • Max Op. Relative Humidity Non-Condensing (%)
    90% @ 50°C
  • Primary Housing Material
    Polycarbonate
  • Lumens Color 1
    3400
  • Illuminated Length (LxWxH mm)
    1128.0
  • Modbus RTU
    No
  • Housing Style
    Linear Strip
  • Animation Option 1
    Solid On
  • Min Op. Temperature (°C)
    -40
  • Feature: Chemical Resistant
    Yes
  • Illumination
    Yes
  • Max Current Color (mA)
    3200
  • Primary Window Material
    Polycarbonate Clear
  • Feature: Quick Disconnect
    Yes
  • Cable Length (m)
    0.15
  • Number of Colors / Segments
    1
  • Number of Input Pins/Conductors
    4
  • Storage Temp (°C)
    -40 to 70
  • Pro-Editor Compatible (Discrete)
    No
  • Multi-Color Device
    Single Color On

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.

HLS27DW1130CPWMQP Related Documents

HLS27D_1130-1630953372525.pdfHLS27D_1130-1630953372529.stpHLS27 Hazardous Location LED Strip Light -- Datasheet-1630953372522.pdf
