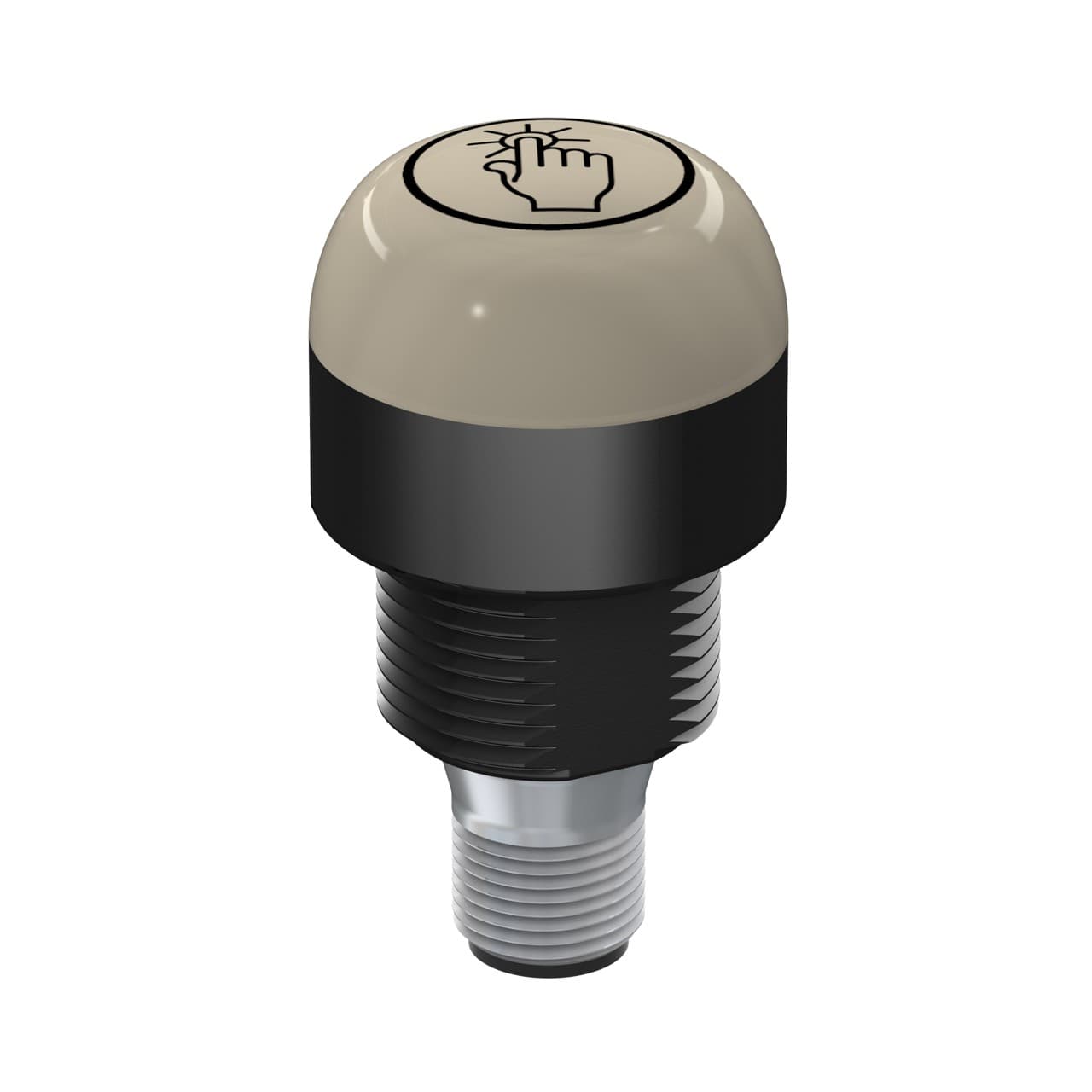

K30ABT2YYHQ Banner Electronic Components

Product Details

• Housing Style
  Base Mount - Dome Window
• Quick Disconnect Type
  M12 (Euro)
• Max Input Response Time (ms)
  300
• Max Op. Temperature (°C)
  50
• Feature: Audible
  No
• Power Source
  DC
• Product Size (mm)
  30
• Max Current Color (mA)
  55
• Lumens Color 2
  4.4
• Environmental Rating
  IP67; IP69
• Primary Window Material
  Polycarbonate Diffused
• Primary Housing Material
  Polycarbonate
• Animation Option 1
  Solid On
• Supply Voltage
  12-30 V dc
• Min Op. Temperature (°C)
  -40
• IO Link
  No
• Number of Colors / Segments
  2
• Color Option 1
  Yellow
• Output Type
  Bipolar (NPN & PNP)
• Primary Housing Color
  Black
Modbus RTU
No
Activation Function
Capacitive Touch
Color Option 2
Yellow
Color 2 - Wavelength/Color Temp/Coordinates
580 nm
Storage Temp (°C)
-40 to 70
Feature: Quick Disconnect
Yes
Mounting Thread
M22 x 1.5
Color Technology
Standard LED
Number of Input Pins/Conductors
5
Physical Dimensions (LxWxH or DxH mm)
30.0 x 54.5
Feature: Chemical Resistant
No
Feature: Washdown Rated
Yes
Actuation
Yes
Color 1 - Wavelength/Color Temp/Coordinates
580 nm
Max Output Response Time (ms)
150
Button Operation
Momentary
Wireless
No
Power
DC
Connection
Integral QD
Input Type
Bimodal (PNP/NPN)
NEMA Type and UL Type Rating
NEMA and UL 4X, 13
Color Input Control
Individual (One wire/color, same number of colors as input wires)
Lumens Color 1
4.4
Operation
Normally Open
Max Op. Relative Humidity Non-Condensing (%)
90% @ 50°C
Feature: Hazardous Area
No
Multi-Color Device
Single Color On
Pro-Editor Compatible (Discrete)
No
